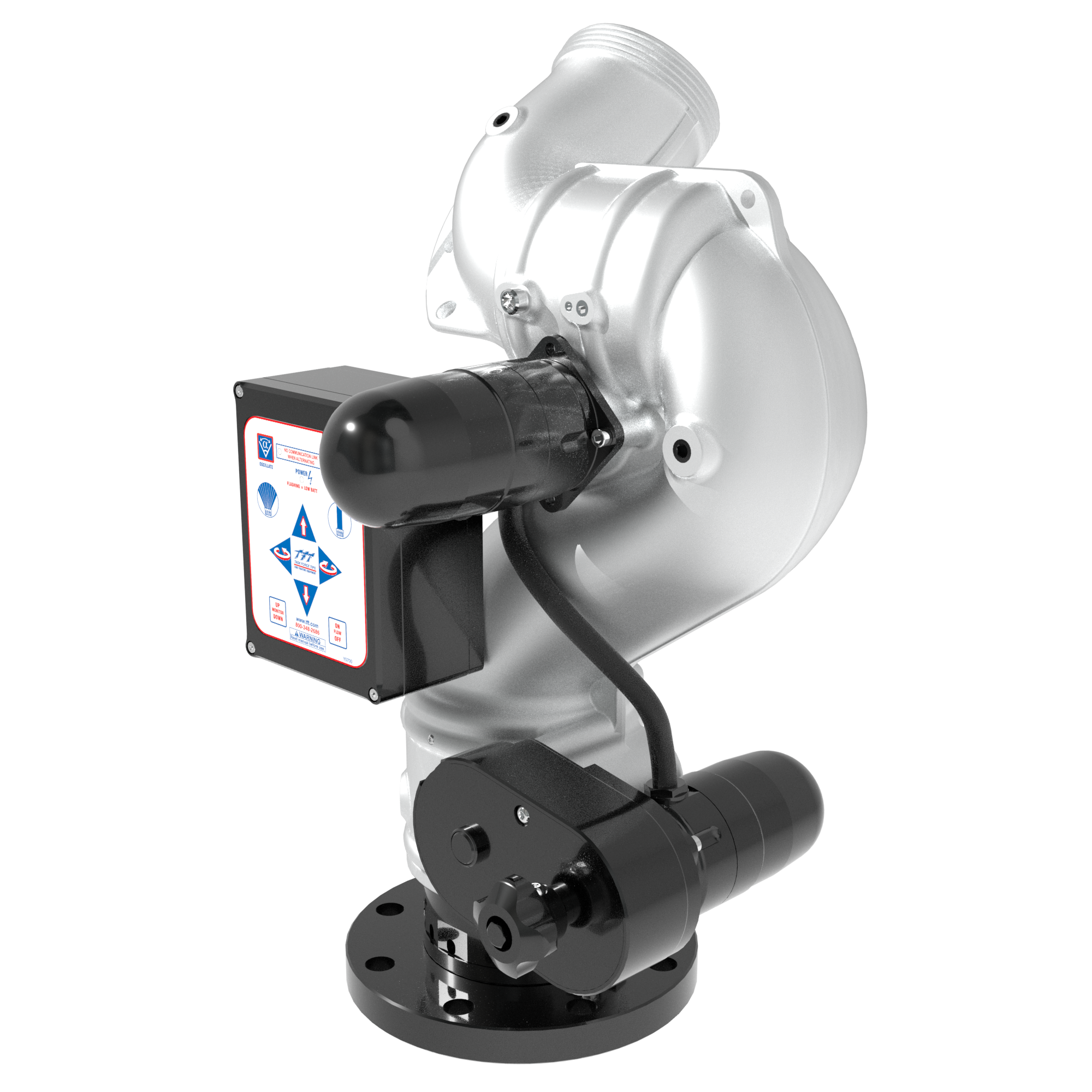

Typhoon RC 1500 GPM (6000 LPM) Monitor, Aerial Ladder – 4″ (100 mm) ANSI 150/DN100 PN16 Extended Rigid Flange Inlet, 3.5″ (90 mm) NHM Rigid Outlet, 12/24 VDC Acc. Power, RS485 (Without Box) Silver
$9,196.20
Versatile High-Flow Monitor
The Typhoon™ Monitor offers exceptional performance and adaptability, making it ideal for pumper, ladder, and platform apparatus. Capable of flowing up to 1500 GPM (6000 LPM), Typhoon combines high-volume water delivery with multiple actuation and mounting options to meet diverse firefighting needs. Key Features: High-Flow Capacity: With a maximum flow rate of 1500 GPM (6000 LPM), Typhoon delivers powerful water streams for effective fire suppression Low Friction Loss: Engineered for efficiency, Typhoon features only 19 PSI (1.3 bar) of friction loss at full flow, ensuring excellent stream quality and reach Versatile Actuation Options: Manual Control: Choose between a tiller bar, dual handwheels, or a combination of both for precise manual operation Remote-Controlled Models: Electric models offer 12/24 VDC compatibility and seamless RS485 communication for intuitive and precise control Specialized Models: Typhoon is available in standard, ladder, and platform configurations, with ladder and platform models featuring factory-installed horizontal travel stops (180° total) to prevent collisions with apparatus structures Wide Range of Motion: Horizontal: 450° total range on standard and pumper models, 180° range on ladder and platform models with horizontal travel stops Vertical: -45° to 90°, with ladder platform models capable of additional travel to -45° to 110° (specific configurations) Compatibility with Extend-A-Gun: Typhoon is fully compatible with Extend-A-Gun for extended reach and operational flexibility Customizable Inlet and Outlet Options: Available with various inlet and outlet sizes and connection types, including flanges, threaded options, and riser flanges, to suit specific apparatus designs Durable Construction: Built with high-quality materials and powder-coated finishes, Typhoon ensures reliable operation and long-lasting performance in harsh firefighting environments All Prices in USD
The Typhoon RC 1500 GPM (6000 LPM) Aerial Ladder Monitor from Task Force Tips is engineered for high-volume, remotely controlled water delivery from elevated positions. Designed to meet the demands of municipal and industrial firefighting, this monitor provides substantial flow rates for effective suppression.
- Achieve significant water application with a maximum flow capacity of 1500 GPM (6000 LPM).
- Operate safely and precisely with remote control capabilities, offering a wide 180° horizontal and -45° to 90° vertical range of motion.
- Ensure stable, high-pressure connections through its rigid 4″ (100 mm) ANSI 150/DN100 PN16 extended flange inlet, built for aerial apparatus integration.
- Facilitate seamless system integration using 12/24 VDC accessory power and RS485 electronic protocol.
- Benefit from a dedicated aerial ladder design, offering a robust solution at 48.250 lbs for elevated deployment.
This Task Force Tips monitor, with its rigid inlet and outlet, is ideally suited for fixed mounting on aerial platforms, providing critical suppression power and precise control in challenging elevated or hazardous environments where direct access is limited.
| Color | |
|---|---|
| Brand | |
| Weight | |
| Bundle |
Monitor Only |
| Monitor Type |
Aerial Ladder |
| Certifications | |
| Monitor Electronic Protocol |
RS485 |
| Monitor Accessory Power |
12/24 VDC |
| Monitor Supply Size (Imp) |
4" |
| Monitor Supply Size (Met) |
100 mm |
| Monitor Supply Type |
ANSI 150/DN100 PN16 |
| Monitor Supply Style |
Flange |
| Monitor Supply Swivel |
Rigid |
| Monitor Horizontal Control |
3" Handwheel |
| Monitor Horizontal Range |
180° |
| Monitor Vertical Control |
3" Handwheel |
| Monitor Vertical Range |
-45° – 90° |
| Monitor Control |
Remote Control |
| Monitor Supply Inlets |
Single |
| Monitor Outlet Size (Imp) |
3.5" |
| Monitor Outlet Size (Met) |
90 mm |
| Monitor Outlet Type |
NH Male |
| Monitor Outlet Style |
Male Threads |
| Monitor Outlet Swivel |
Rigid |
| Max Flow Rate (GPM) |
1500 GPM |
| Max Flow Rate (LPM) |
6000 LPM |
Technical Specifications and Drawings
Certifications & Approvals
Instructions For Installation, Safe Operation and Maintenance
- Typhoon & Typhoon RC Monitor Instruction Manual
- REMOTE CONTROL (RC) MONITOR ELECTRICAL CONTROLS MANUAL
