Typhoon RC 1500 GPM (6000 LPM) Monitor, Pumper – 4″ (100 mm) ANSI 150/DN100 PN16 Rigid Flange Inlet, 3.5″ (90 mm) NHM Rigid Outlet, 12/24 VDC Acc. Power, RS485, Silver
$9,196.20
Versatile High-Flow Monitor
The Typhoon™ Monitor offers exceptional performance and adaptability, making it ideal for pumper, ladder, and platform apparatus. Capable of flowing up to 1500 GPM (6000 LPM), Typhoon combines high-volume water delivery with multiple actuation and mounting options to meet diverse firefighting needs. Key Features: High-Flow Capacity: With a maximum flow rate of 1500 GPM (6000 LPM), Typhoon delivers powerful water streams for effective fire suppression Low Friction Loss: Engineered for efficiency, Typhoon features only 19 PSI (1.3 bar) of friction loss at full flow, ensuring excellent stream quality and reach Versatile Actuation Options: Manual Control: Choose between a tiller bar, dual handwheels, or a combination of both for precise manual operation Remote-Controlled Models: Electric models offer 12/24 VDC compatibility and seamless RS485 communication for intuitive and precise control Specialized Models: Typhoon is available in standard, ladder, and platform configurations, with ladder and platform models featuring factory-installed horizontal travel stops (180° total) to prevent collisions with apparatus structures Wide Range of Motion: Horizontal: 450° total range on standard and pumper models, 180° range on ladder and platform models with horizontal travel stops Vertical: -45° to 90°, with ladder platform models capable of additional travel to -45° to 110° (specific configurations) Compatibility with Extend-A-Gun: Typhoon is fully compatible with Extend-A-Gun for extended reach and operational flexibility Customizable Inlet and Outlet Options: Available with various inlet and outlet sizes and connection types, including flanges, threaded options, and riser flanges, to suit specific apparatus designs Durable Construction: Built with high-quality materials and powder-coated finishes, Typhoon ensures reliable operation and long-lasting performance in harsh firefighting environments All Prices in USD

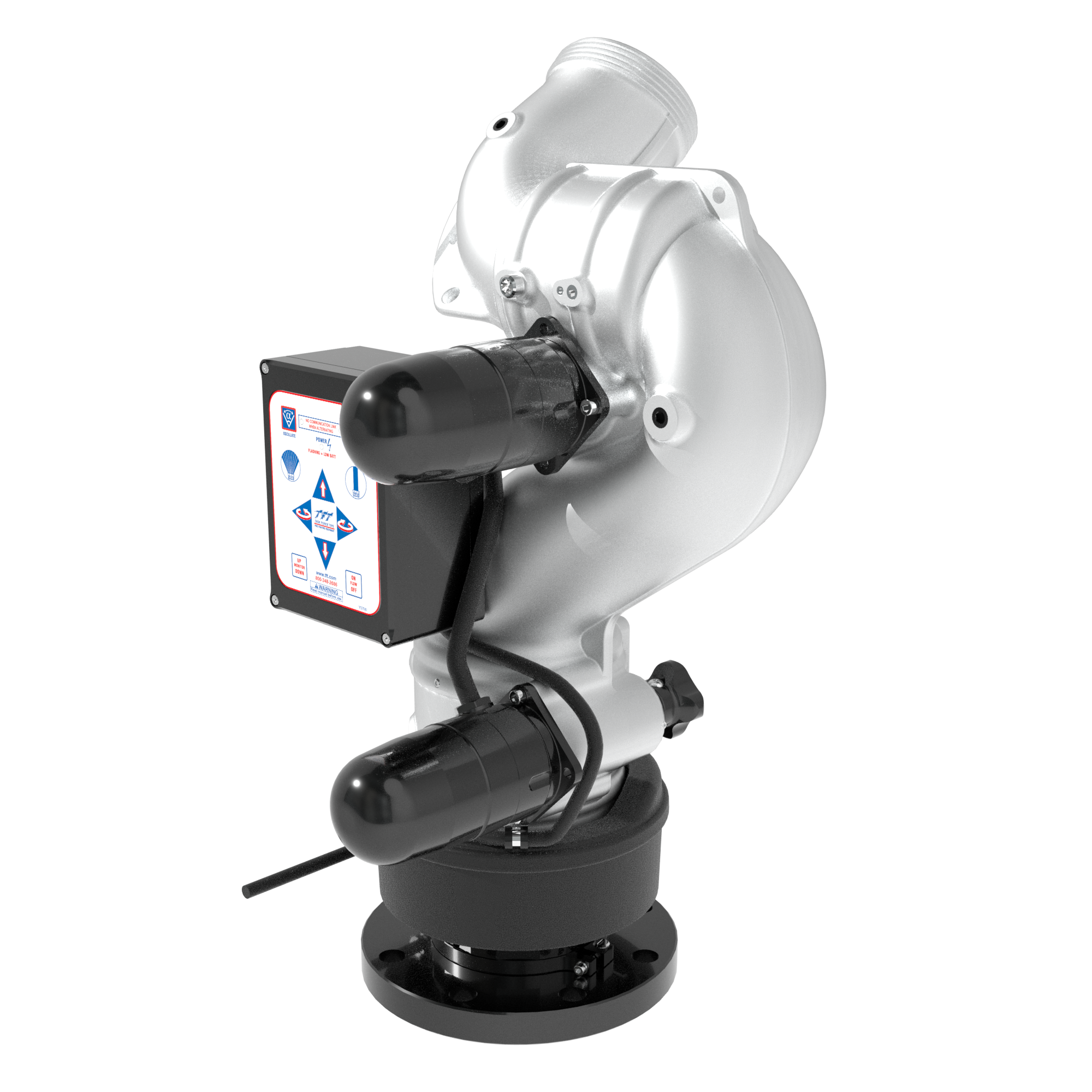

The Typhoon RC 1500 GPM Monitor from Task Force Tips is a remote-controlled pumper monitor built for high-volume fire suppression. Delivering up to 1500 GPM (6000 LPM), this unit provides substantial flow capacity for critical fire events, with its design focused on robust, adaptable performance in demanding environments.
- Remote control capabilities, supported by RS485 protocol and 12/24 VDC accessory power, facilitate safe and precise water stream management from a distance.
- The 4″ (100 mm) ANSI 150/DN100 PN16 rigid flange inlet ensures a secure, high-volume supply connection to maintain its maximum flow rate.
- An extensive horizontal range of 450° and a vertical range from -45° to 90°, controllable via integrated handwheels, offer broad area coverage and accurate stream placement for varied incident demands.
- A 3.5″ (90 mm) NHM rigid male outlet provides a standardized, stable attachment point for a wide range of firefighting nozzles.
Weighing 42.000 lbs, this CE-certified monitor is engineered for reliable, fixed installations on industrial pumpers, tenders, or other apparatus. The Task Force Tips Typhoon RC delivers unwavering performance where high-volume, remotely controlled suppression is paramount.
| Color | |
|---|---|
| Brand | |
| Weight | |
| Bundle |
Monitor Only |
| Monitor Type |
Pumper |
| Certifications | |
| Monitor Electronic Protocol |
RS485 |
| Monitor Accessory Power |
12/24 VDC |
| Monitor Supply Size (Imp) |
4" |
| Monitor Supply Size (Met) |
100 mm |
| Monitor Supply Type |
ANSI 150/DN100 PN16 |
| Monitor Supply Style |
Flange |
| Monitor Supply Swivel |
Rigid |
| Monitor Horizontal Control |
3" Handwheel |
| Monitor Horizontal Range |
450° |
| Monitor Vertical Control |
3" Handwheel |
| Monitor Vertical Range |
-45° – 90° |
| Monitor Control |
Remote Control |
| Monitor Supply Inlets |
Single |
| Monitor Outlet Size (Imp) |
3.5" |
| Monitor Outlet Size (Met) |
90 mm |
| Monitor Outlet Type |
NH Male |
| Monitor Outlet Style |
Male Threads |
| Monitor Outlet Swivel |
Rigid |
| Max Flow Rate (GPM) |
1500 GPM |
| Max Flow Rate (LPM) |
6000 LPM |
Technical Specifications and Drawings
Certifications & Approvals
Instructions For Installation, Safe Operation and Maintenance
- Typhoon & Typhoon RC Monitor Instruction Manual
- REMOTE CONTROL (RC) MONITOR ELECTRICAL CONTROLS MANUAL
