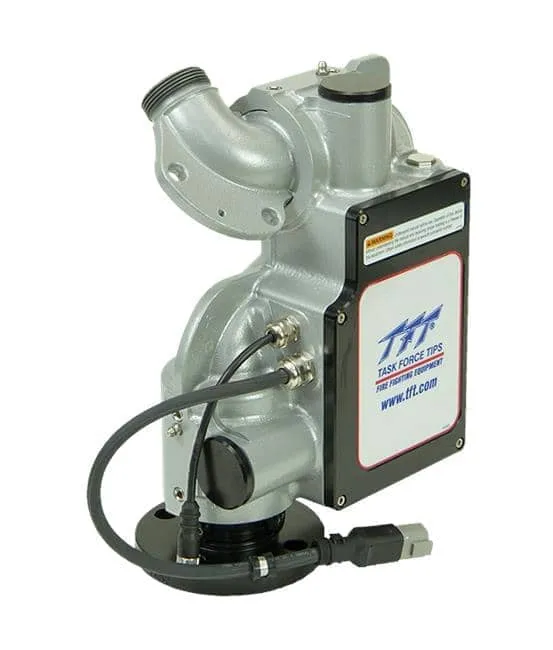

EF1 RC Monitor, 200 GPM (750 LPM) – 1.5″ (38 mm) NPTF Swivel Rocker Inlet, 1.5″ (38 mm) NHM Rigid Outlet, 12/24 VDC Acc. Power, RS485, Silver
$4,038.45
Compact Monitor for Wildland Firefighting
The EF1™ Remote-Controlled Monitor is designed to deliver powerful performance in a compact and rugged package. Capable of flowing up to 200 GPM (757 LPM), the EF1 is the ideal solution for wildland and interface apparatus. At just 12.6″ tall and built with hard coat anodized aluminum, this monitor is perfect for forestry bumper turrets and other off-road firefighting applications. Equipped with programmable park and oscillation modes, sealed electric drives, and waterproof controls, the EF1 is built to handle harsh conditions while delivering precise and efficient water flow. Key Features: High-Performance Flow: Supports up to 200 GPM (757 LPM), making it suitable for wildland and interface firefighting Compact Design: Measures only 12.6” tall and 6.1” deep, ideal for forestry and off-road applications Durable Construction: Built with hard coat anodized aluminum and powder-coated for extreme durability in harsh conditions Wide Travel Range: Horizontal Travel: 135° left and right of center for a total of 270° Vertical Travel: 45° below center and 90° above center for a total of 135° Programmable Features: Includes park and oscillation modes for operational flexibility and efficiency Easy Installation: Simplified wiring with a single factory-installed plug and compatibility with various inlets and outlets, including quick-connect couplings Waterproof Components: Electric drives and control box are sealed to protect against water and dust Adjustable Travel Stops: Horizontal stops can be adjusted for a 180° range, providing more control over the monitor’s movement All Prices in USD
The EF1 RC Monitor from Task Force Tips is a compact, remote-controlled water delivery solution, engineered for precise application and enhanced operational safety. With a maximum flow rate of 200 GPM (750 LPM), this monitor provides effective suppression capabilities for demanding fireground and industrial applications.
- Extensive Coverage and Precise Aim: Electronic horizontal control over 270° and vertical control from -45° to 90° enable accurate stream placement across a wide operational envelope, enhancing tactical flexibility from a safe remote position.
- Seamless Integration: Equipped with an RS485 communication protocol and 12/24 VDC accessory power, the monitor offers reliable electronic operation and broad power compatibility for seamless integration into existing control systems.
- Flexible and Stable Connections: A 1.5″ (38 mm) NPTF Swivel Rocker Inlet provides adaptable connection options to the water source, while the 1.5″ (38 mm) NHM Rigid Outlet ensures stable and secure attachment of nozzles.
- Substantial Flow Capacity: Delivers a maximum flow rate of 200 GPM (750 LPM), supporting effective fire suppression demands in various incident scenarios.
- Versatile Deployment: Its compact dimensions (5.8 x 9.2 x 13.7 in) and manageable weight of 17.300 lbs facilitate versatile deployment and integration onto diverse fixed or mobile platforms.
This Task Force Tips EF1 Monitor is ideal for fixed installations, vehicle mounting, or industrial process protection, enabling firefighters and personnel to manage water streams effectively from a safe distance, thereby improving incident response and reducing exposure to hazards.
| Weight | 17.3 lbs |
|---|---|
| Color | |
| Brand | |
| Weight | |
| Bundle |
Monitor Only |
| Monitor Type |
Standard Mounting |
| Monitor Electronic Protocol |
RS485 |
| Monitor Accessory Power |
12/24 VDC |
| Monitor Supply Size (Imp) |
1.5" |
| Monitor Supply Size (Met) |
38 mm |
| Monitor Supply Type |
NPT Female |
| Monitor Supply Style |
Rocker |
| Monitor Supply Swivel |
Swivel |
| Monitor Horizontal Control |
Electronic |
| Monitor Horizontal Range |
270° |
| Monitor Vertical Control |
Electronic |
| Monitor Vertical Range |
-45° – 90° |
| Monitor Control |
Remote Control |
| Monitor Supply Inlets |
Single |
| Monitor Outlet Size (Imp) |
1.5" |
| Monitor Outlet Size (Met) |
38 mm |
| Monitor Outlet Type |
NH Male ,NPT Male |
| Monitor Outlet Style |
Male Threads |
| Monitor Outlet Swivel |
Rigid |
| Max Flow Rate (GPM) |
200 GPM |
| Max Flow Rate (LPM) |
750 LPM |
| Swing Radius (in) |
7 |
| Swing Radius (mm) |
177.8 |
