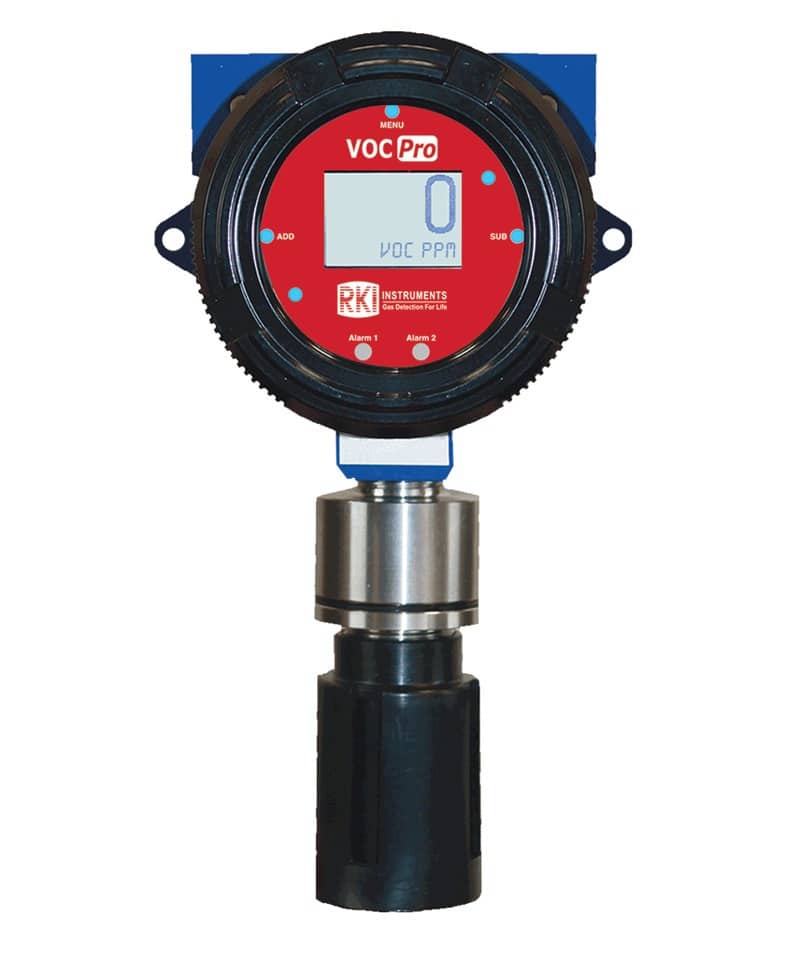

RKI VOC Pro – PID Detector Head
3-Wire Explosion Proof Transmitter
Features
- PID sensor options: 10.0 eV lamp / 11.7 eV / 10.6 eV ppb / 10.6 eV ppm
- Wired power (3-Wire), 12 to 35 VDC operating voltage
- Operating temperature range -40°C to +54°C
- Graphical LCD with LED backlight
- 3 Push-button interface (ADD, MENU, SUB) with corresponding magnetic, non-intrusive switches
- 2 Individually configurable alarms
- 2 Front panel LED indicators (amber and red)
- 2 Optional fully programmable alarm relays (dry contacts)
- Output options: 4-20mA (3-wire) analog, RS-485 modbus (4 wire)
- 1-Year warranty (see specifications)
VOC Pro Datasheet [PDF]
VOC Pro Operator’s Manual [PDF]
The VOC Pro Series Gas Detector is a versatile assembly that uses a PID sensor to detect a variety of gases. Wired power (12 to 35 VDC) with 4-20 mA analog and RS-485 Modbus outputs are standard. Magnetic switches allow for non-intrusive calibration while in the field as well as full system settings and diagnostics.
The VOC Pro represents the latest leading edge technology in fixed gas detection today.
Related Services
- Design, Consultations, and Engineering
- Installation
- Start-up
- Training
- System Maintenance
Application
- Petrochemical plants
- Refineries
- Water & wastewater treatment plants
- Pulp & paper mills
- Manufacturing facilities
- Automotive
- Semiconductor plants
- Chemical plants
PID Lamp Options
| Ranges | Part#
Suffix |
PID Lamps | |||
| 10.0 eV | 11.7 eV | 10.6 eV low ppm |
10.6 eV ppm | ||
| Part # Base | 66-6195-XX | 66-6194-XX | 66-6192-XX | 66-6193-XX | |
| 0 – 10.00 ppm | -01 | ▪ | ▪ | ||
| 0 – 20.00 ppm | -02 | ▪ | ▪ | ||
| 0 – 50.00 ppm | -05 | ▪ | ▪ | ||
| 0 – 100 ppm | -10 | ▪ | ▪ | ▪ | |
| 0 – 200 ppm | -20 | ▪ | |||
| 0 – 500 ppm | -50 | ▪ | |||
| 0 – 1000 ppm | -1K | ▪ | |||
| 0 – 2000 ppm | -2K | ▪ | |||
Specifications
| Sensor Type | PID | |
| Operating Voltage | Wired power (3-Wire) 12 to 35 VDC | |
| Power Draw | 2 Watts maximum | |
| Protection | Power electromagnetic interference (EMI) filter
4-20 mA surge suppression RS-485 surge suppression |
|
| Display Screen | 102×64 Resolution graphical LCD screen transflective (sunlight readable) with white LED backlight | |
| Interface | 3 Push-buttons (MENU, ADD and SUB)
3 Magnetic non-intrusive switches for calibration |
|
| Customizable Settings | 2 Individual-configurable alarm LED/relay set-points | |
| Temperature Range | -40°C to +54°C (-40°F to +130°F) | |
| Output (digital) | RS-485 modbus | |
| Wired (Analog) Output | 4-20 mA (3-Wire)
Fault terminal Optional 2 dry-contact relays with replaceable 4 amp fuses |
|
| Remote Sensor Kit
(Optional Additional Feature) |
Remote sensor kit with enclosure (5 pin)
• PID sensor max. length: 35 feet |
|
| Product Dimensions | 5.5 in, L x 6 in. W x 7 in. H (8 in. W x 17 in. H Max. dimensions with attachments) | |
| Total Weight | 6 lbs. | |
| Hazardous Location
Approvals |
Main Enclosure | Certified explosion / flame proof CQPSUS
Class I, Division 1 & 2, Groups B, C & D, Temp.= -20°C to +60°C |
| Sensor Housing | Certified explosion / flame proof CQPSUS
Class I, Division 1 & 2, Groups B, C & D Temp.= -40°C to +60°C |
|
| Controllers | Compatible with all RKI Beacon controllers, as well as most DCS / PLC systems: Beacon 110, Beacon 200, Beacon 410A and Beacon 800, MC-6400 | |
| Warranty | 1-Year warranty for electronics, and PID sensor (Two months for 11.7 eV lamp) | |
PID Sensor Response Factors for VOCs
