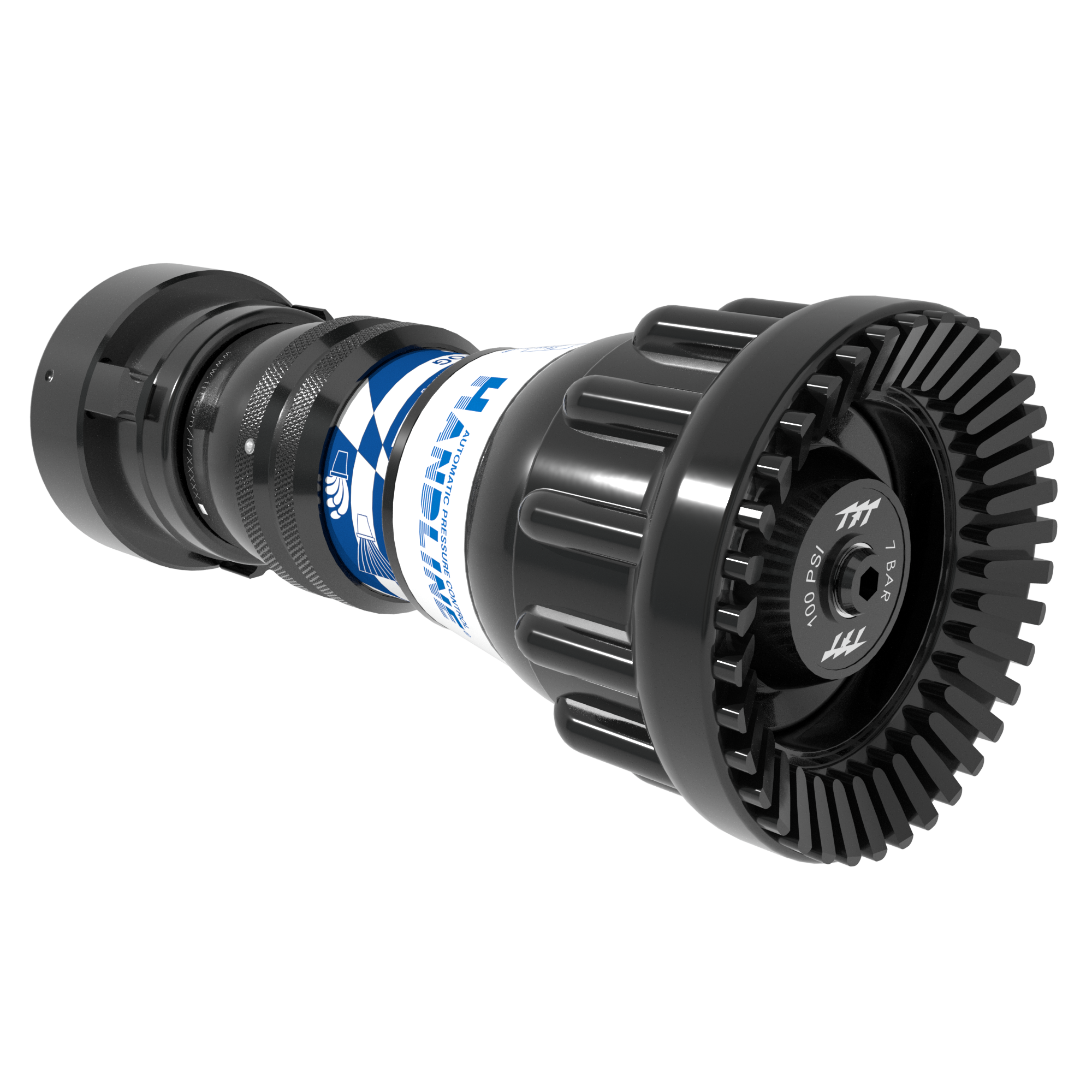

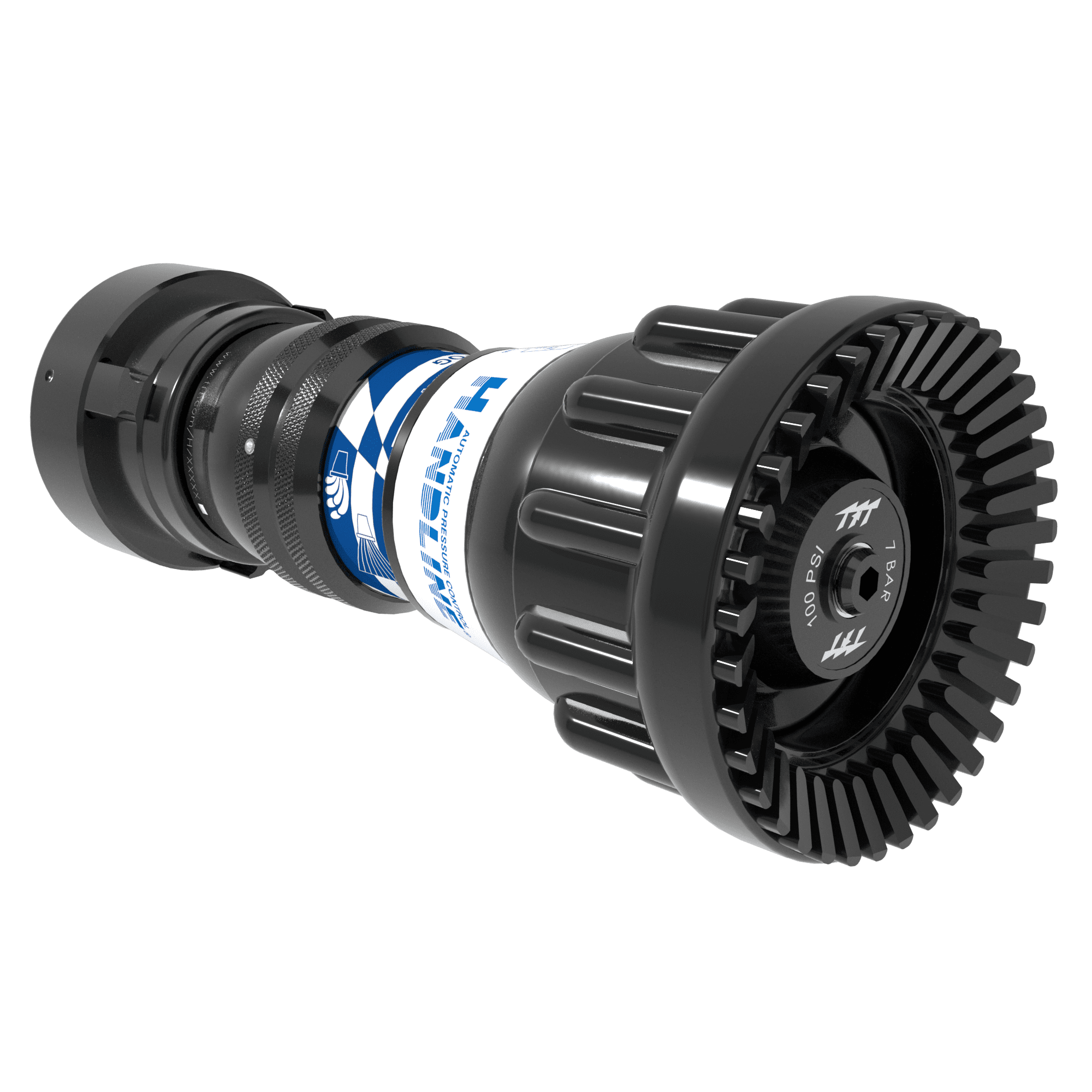

Handline Automatic Nozzle Tip – 190-1350 LPM @ 6.8 Bar, 65 mm BSPF Rocker Swivel Inlet, Rubber Teeth

Powerful, Adaptive Firefighting Solution

The Handline™ Automatic Nozzle series provides flexibility with three selectable pressure options, enabling firefighters to adapt quickly to changing conditions. With flow rates from 50 to 350 GPM (190-1350 LPM) and various connection and grip options, these nozzles enhance control, reach, and suppression capability. Each Handline™ nozzle features a patented slide valve for smooth operation and customizable handling options, making it ideal for structural and wildland firefighting. Key Features: Adjustable Pressure Settings: Available in a range of pressure settings for versatile performance Wide Flow Range: 50 to 350 GPM (190-1350 LPM) depending on the model, suitable for diverse firefighting scenarios Hose Compatibility: Fits 1.5” to 2.5” (38-65 mm) hoses, adaptable to NH, BIC, and BSP connections Slide Valve Design: Patented turbulence-free slide valve provides precise flow control and easy handling Impact-Resistant Bumper: Rubber bumper with fog teeth enhances stream pattern and provides protection Flush Without Shutdown: Quickly flush debris without interrupting operation Grip Options: Choose from pistol grip tip only configurations for improved control Custom Coupling Styles: Available with Rocker Lugs, Knurled, and Quick-Connect couplings for secure attachment All Prices in USD

Out of stock

SKU: HP-TO-2.5B Category: Brand
Description

The Task Force Tips Handline™ Automatic Nozzle Tip delivers consistent pressure performance across a wide flow spectrum, optimizing water delivery for demanding handline operations. Engineered for reliability, this automatic nozzle tip ensures operational efficiency and firefighter safety during critical incidents.

  • Experience consistent operating pressure at 6.8 Bar across a dynamic flow range from 190 LPM to 1350 LPM, adapting automatically to changing conditions.
  • A 65 mm BSPF Rocker Swivel Inlet facilitates rapid, secure attachment to hoselines and allows for immediate orientation adjustment.
  • Fixed Rubber Teeth are integrated to maintain stream integrity and enhance durability against typical fireground impacts.
  • At a practical 5.000 lbs, the tip contributes to a manageable overall nozzle assembly weight, aiding maneuverability without compromising robustness.
  • Reliable positive shut-off and flow control are enabled by the robust ball valve style of the accompanying nozzle system.

This Task Force Tips nozzle tip is an essential component for municipal and industrial firefighting, providing the flexibility and dependable performance required for effective attack and suppression in diverse fire scenarios.

Additional information
Color

Nozzle Valve Style

Ball Valve

,

Sold Separately

Nozzle Teeth

Fixed Rubber

Brand

Weight

Target Nozzle Flow (Imp)

50-350 GPM

Target Nozzle Flow (Met)

190-1350 LPM

Target Nozzle Pressure (Bar)

6.8 Bar

,

7 Bar

Target Nozzle Pressure (KPA)

680 KPA

,

700 KPA

Nozzle Type

Automatic

Nozzle Style

2-Piece

,

Tip Only

Nozzle Grip

None

Nozzle Hose Size (Imp)

2.5"

Nozzle Hose Size (Met)

65 mm

Nozzle Hose Connection Type

BSP Female

Nozzle Hose Coupling Style

Rocker Lugs

Nozzle Hose Coupling Swivel

Swivel

Target Nozzle Pressure (PSI)

100 PSI

,

98 PSI

Document Attachments

Instructions For Installation, Safe Operation and Maintenance
