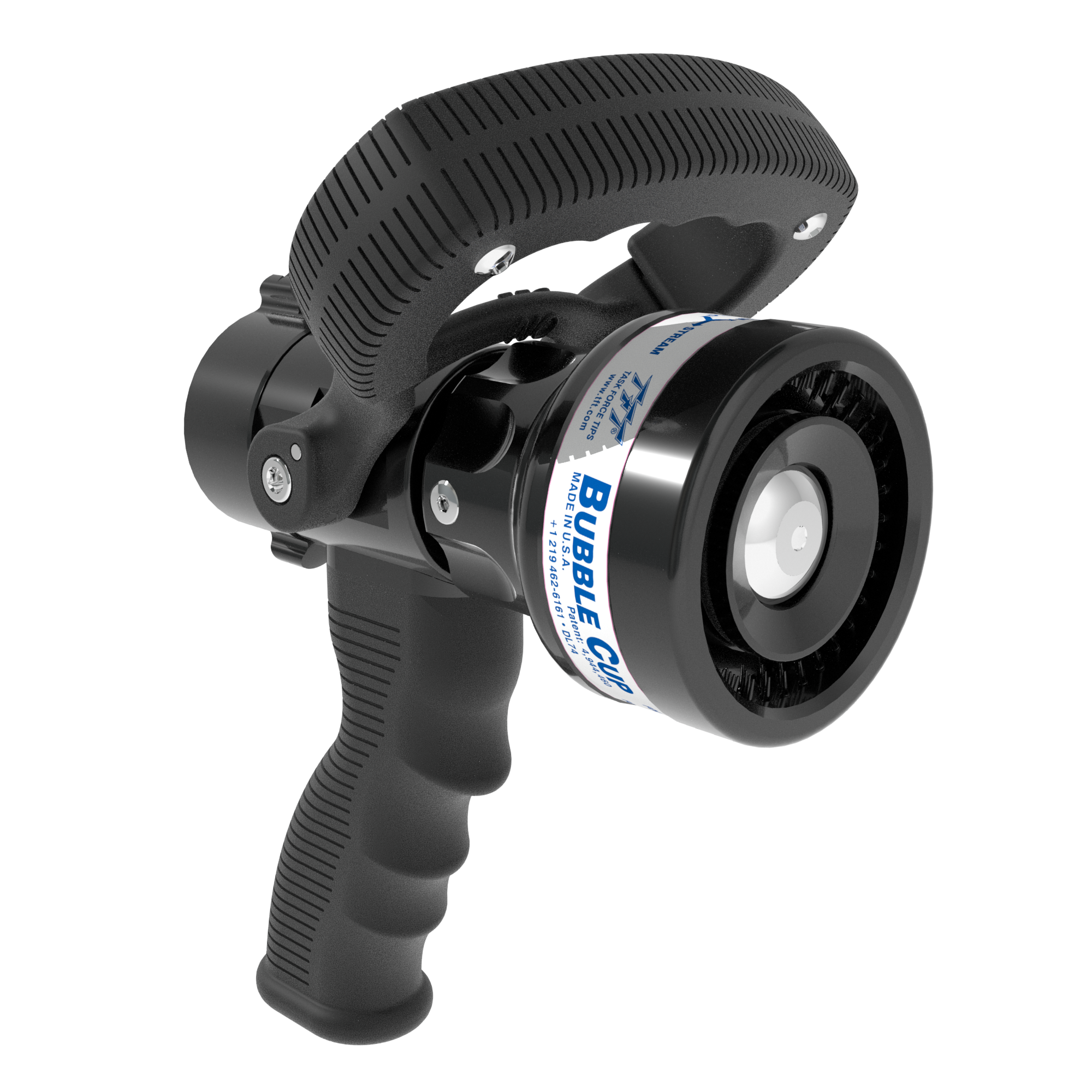

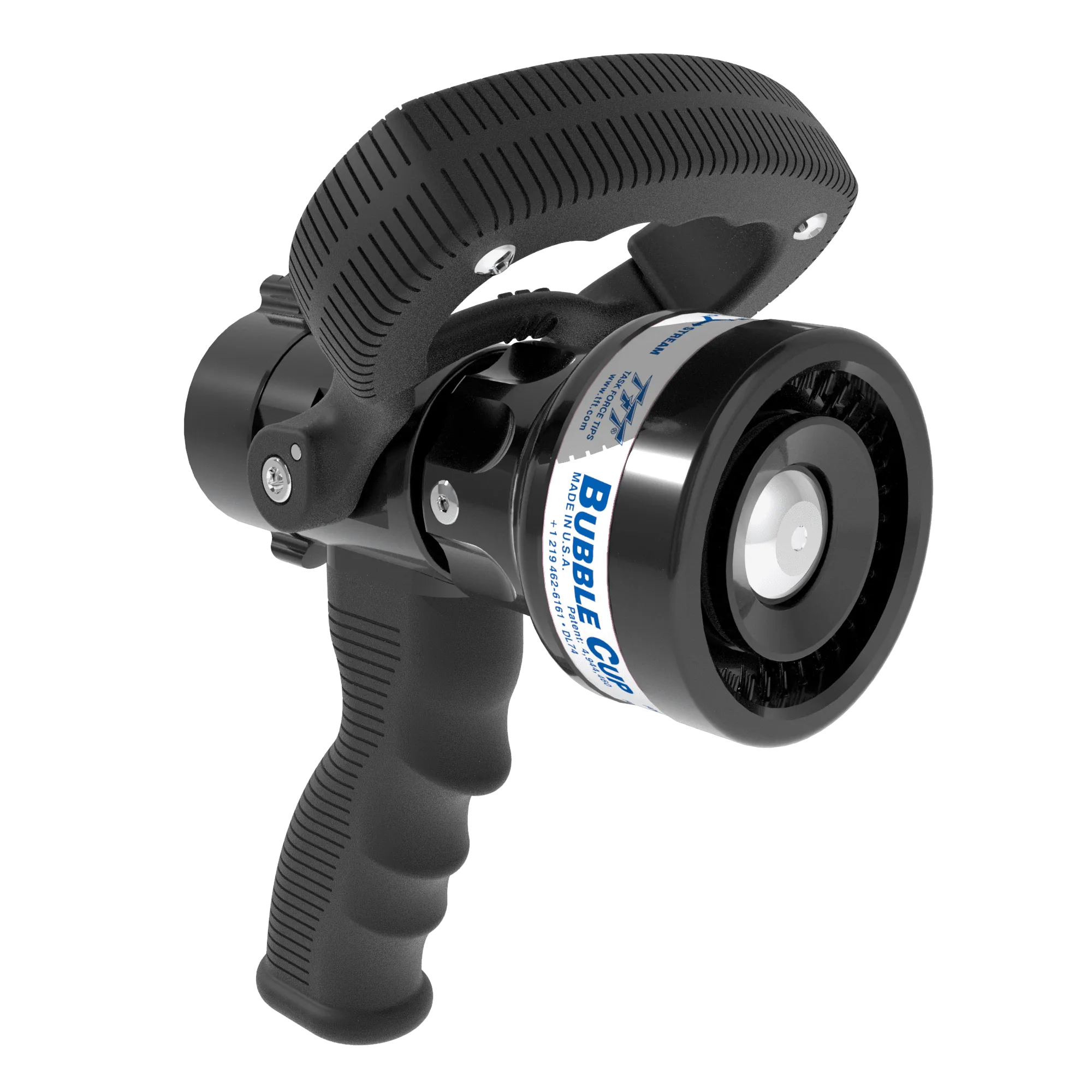

BUBBLE CUP W/GRIP 1.0″NHF
$430.30
10&40 GPM FOAM ASPIRATING SLEEVE
Dual gallonage Bubble Cup nozzle with two flow settings of 10 and 40 gpm @ 100 psi (37 and 150 l/min @ 7 bar). All lightweight materials, hard coat anodized aluminum. Quick-change rear valve seat, stainless steel shut-off ball and a twist “off” position for positive shut off. Pistol grip is mounted below the valve. Rocker lug 1.0″ NH (25 mm) swivel is standard. All Prices in USD
The Task Force Tips BUBBLE CUP W/GRIP 1.0″NHF is a selectable handline nozzle engineered for precise water or foam application, offering operational control within its 10/40 GPM (37/150 LPM) flow capabilities at a single operating pressure.
- Tactical Flow Adaptability: Selectable flow rates of 10 or 40 GPM (37 or 150 LPM) provide crucial flexibility for adapting to diverse fireground conditions and extinguishing agent needs, optimized for a 100 psi (7 bar) operating pressure.
- Secure Handling: The integrated pistol grip ensures enhanced control and ergonomic handling, contributing to operator confidence and reduced fatigue during extended operations.
- Fireground Durability: Featuring a robust stainless valve design and a metal aluminum bumper, this Task Force Tips nozzle is built to withstand the rigors of demanding operational environments.
- Hose Line Integration: Designed with a 1.0″ NHF rocker lug connection, it facilitates direct and secure attachment to standard 1-inch (25mm) hose lines for rapid deployment.
This Bubble Cup style nozzle, with its compact design and manageable 3.000 lbs (1.36 kg) weight, is ideally suited for specialized extinguishing tasks requiring targeted application and consistent performance from a handline.
| Weight | 3 lbs |
|---|---|
| Brand | |
| Weight | |
| Target Nozzle Flow (Imp) |
10/40 GPM |
| Target Nozzle Flow (Met) |
37/150 LPM |
| Target Nozzle Pressure (Bar) |
7 |
| Nozzle Type |
Handline Nozzle |
| Pistol Grip | , |
| Valve Design | |
| Flow Rate | |
| Inlet Coupling Style | |
| Body Size | |
| Inlet Coupling Swivel | |
| Style | |
| Pressure Mode | |
| Bumper Material | |
| Operating Pressure | |
| Nozzle Style |
Bubble Cup |
| Nozzle Grip |
None |
| Nozzle Hose Size (Imp) |
1.0" |
| Nozzle Hose Size (Met) |
25mm |
| Nozzle Hose Connection Type |
NH |
| Nozzle Hose Coupling Style |
Rocker |
| Nozzle Hose Coupling Swivel |
Non-Full Time Swivel |
| Product Weight (Imp) |
3.000 lbs |
| Target Nozzle Pressure (PSI) |
100 |
