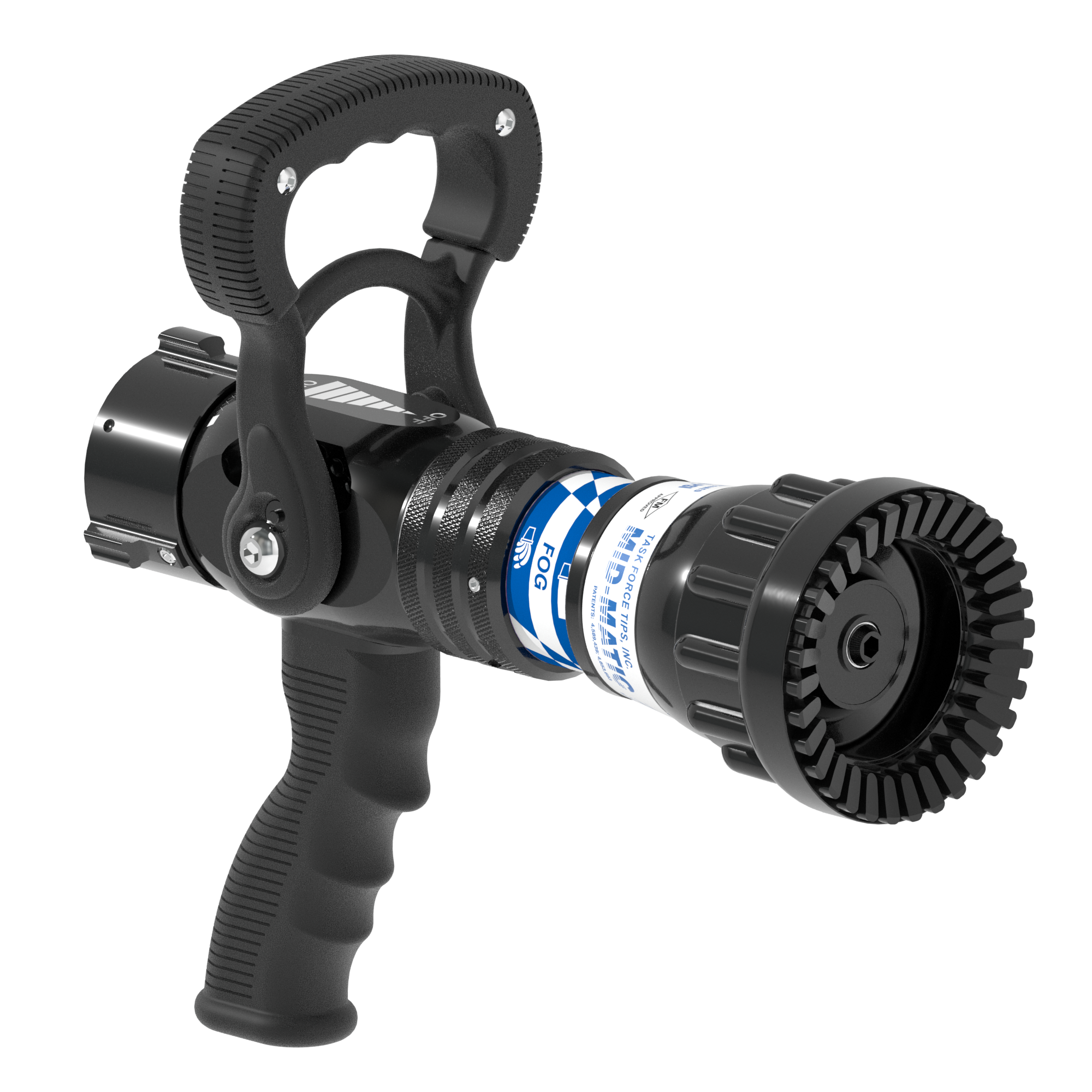

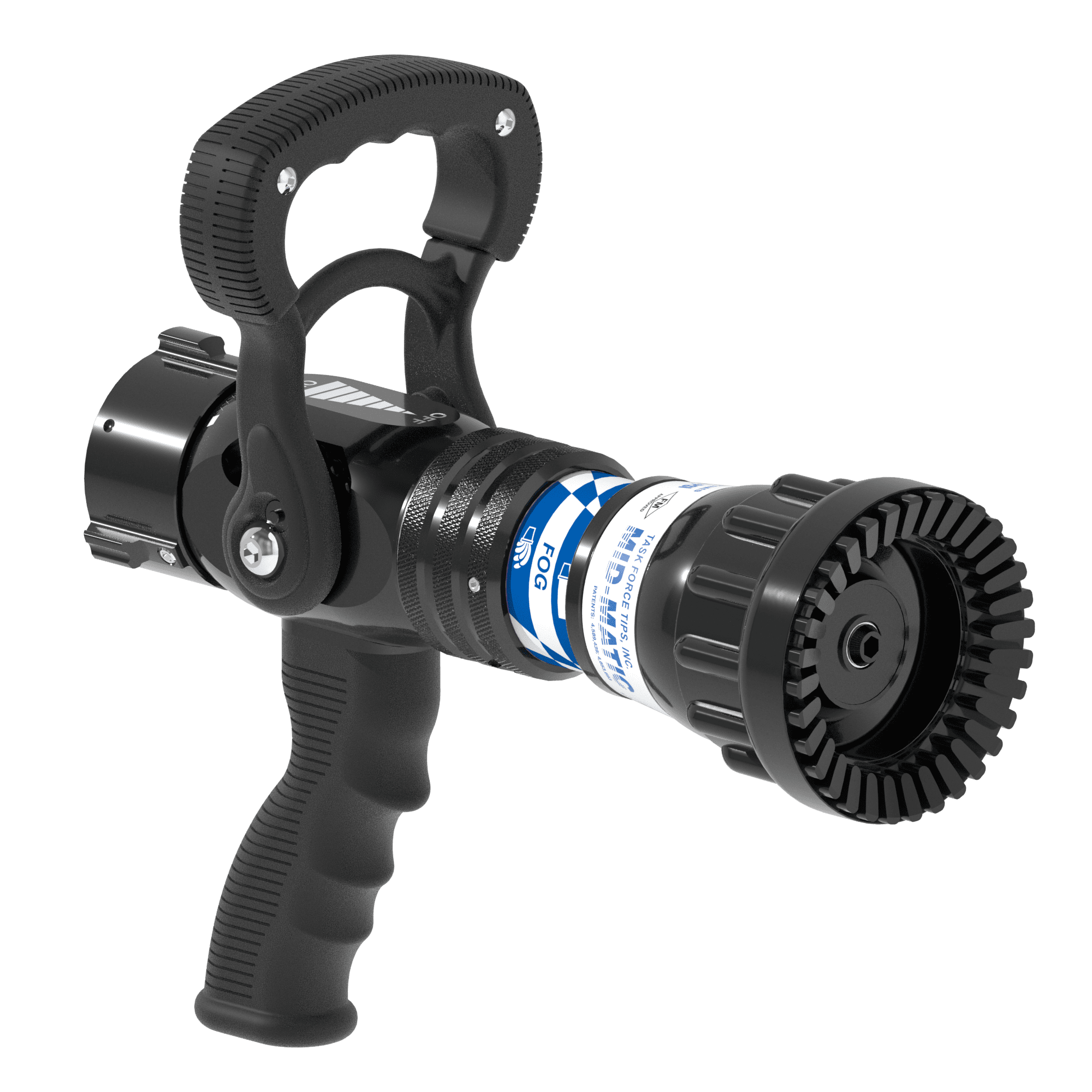

Mid-Matic Automatic One-Piece Nozzle With Pistol Grip, Slide Valve – 260-750 LPM @ 7 Bar, 38 mm BSPF Swivel Inlet, Rubber Teeth
Precision Flow and Versatile Pressure Options
The Mid-Matic™ Automatic Nozzle is designed for firefighting teams requiring mid-range flow and flexible pressure options. Delivering between 25-200 GPM (100-750 LPM), the Mid-Matic™ provides efficient water application with easy customization. Built to meet NFPA standards, it features a patented slide valve, detent flow control, and is available with various grip and coupling options for enhanced handling on the fireground. Key Features: Adjustable Pressure Choices: Available in 75, 80, and 100 PSI (5, 6, and 7 Bar) for accurate flow settings Flow Range: Delivers between 25-200 GPM (100-750 LPM), ideal for mid-range applications Hose Compatibility: Fits 1.5” to 2” (38-52 mm) hoses, available in NH, BSP, and BIC connections Slide Valve Control: Patented slide valve offers turbulence-free operation for smooth flow adjustments Fog Pattern Teeth: Choose from molded rubber or metal spinning teeth for versatile fog patterns Flush Without Shutdown: Easily clear obstructions without stopping water flow Grip Options: Pistol grip configurations for enhanced control Color & Safety Indicators: Black finish with optional flashover nozzle for advanced firefighting techniques All Prices in USD
Out of stock
The Task Force Tips Mid-Matic Automatic One-Piece Nozzle With Pistol Grip, Slide Valve is engineered for consistent water application across a dynamic range of firefighting scenarios. This automatic nozzle precisely maintains an effective operating pressure of 7 Bar (100 PSI), adapting to available flow from 260 to 750 LPM.
- Delivers consistent stream performance by automatically adjusting flow from 260 to 750 LPM while maintaining 7 Bar (100 PSI) operating pressure.
- Facilitates operator comfort and control with its integrated Pistol Grip.
- Ensures smooth, precise water application and positive shut-off via the responsive Slide Valve.
- Allows for quick, secure hose connection and reduces kinking through the 38 mm BSPF Swivel Inlet with a knurled coupling style.
- Features Fixed Rubber Teeth, designed for effective stream break-up and enhanced operational safety.
- Constructed as a 1-Piece unit, weighing 3.200 lbs, to withstand demanding fireground conditions.
Certified to NFPA/FM standards, this Task Force Tips nozzle provides dependable stream performance, crucial for effective fire suppression in diverse municipal and industrial environments where consistent water application and user control are paramount.
| Color | |
|---|---|
| Nozzle Valve Style |
Slide Valve |
| Nozzle Teeth |
Fixed Rubber |
| Brand | |
| Weight | |
| Target Nozzle Flow (Imp) |
70-200 GPM |
| Target Nozzle Flow (Met) |
260-750 LPM |
| Target Nozzle Pressure (Bar) |
7 Bar |
| Target Nozzle Pressure (KPA) |
700 KPA |
| Nozzle Type |
Automatic |
| Certifications | |
| Nozzle Style |
1-Piece ,One-Piece |
| Nozzle Grip |
Pistol |
| Nozzle Hose Size (Imp) |
1.5" |
| Nozzle Hose Size (Met) |
38 mm |
| Nozzle Hose Connection Type |
BSP Female |
| Nozzle Hose Coupling Style |
Knurled |
| Nozzle Hose Coupling Swivel |
Swivel |
| Target Nozzle Pressure (PSI) |
100 PSI |
Certifications & Approvals
- Mid-Matic FM Approval
- QuadraFog FM Approval
- ThunderFog FM Approval
- Mid-Matic 100 psi and 75 psi NFPA 1960
