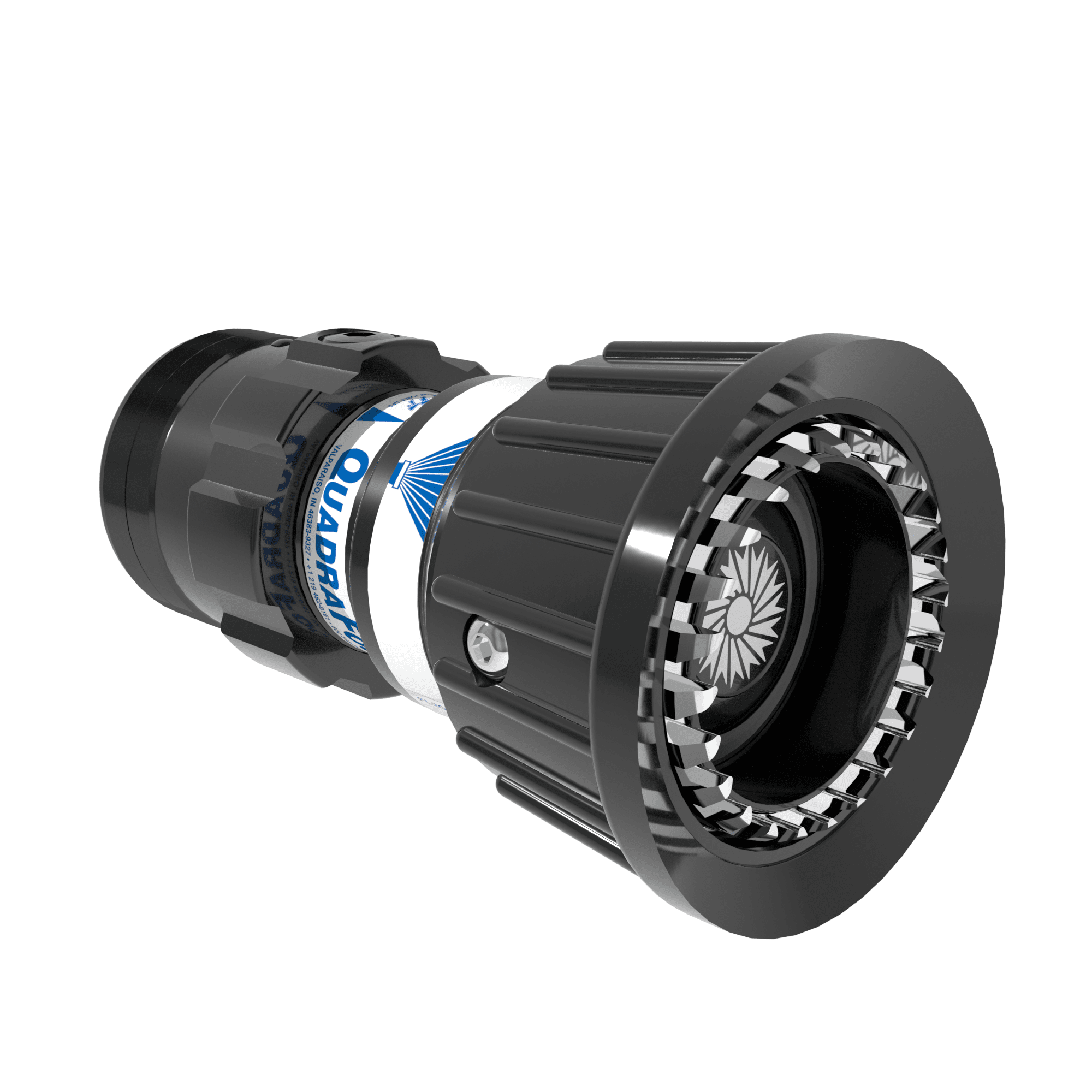

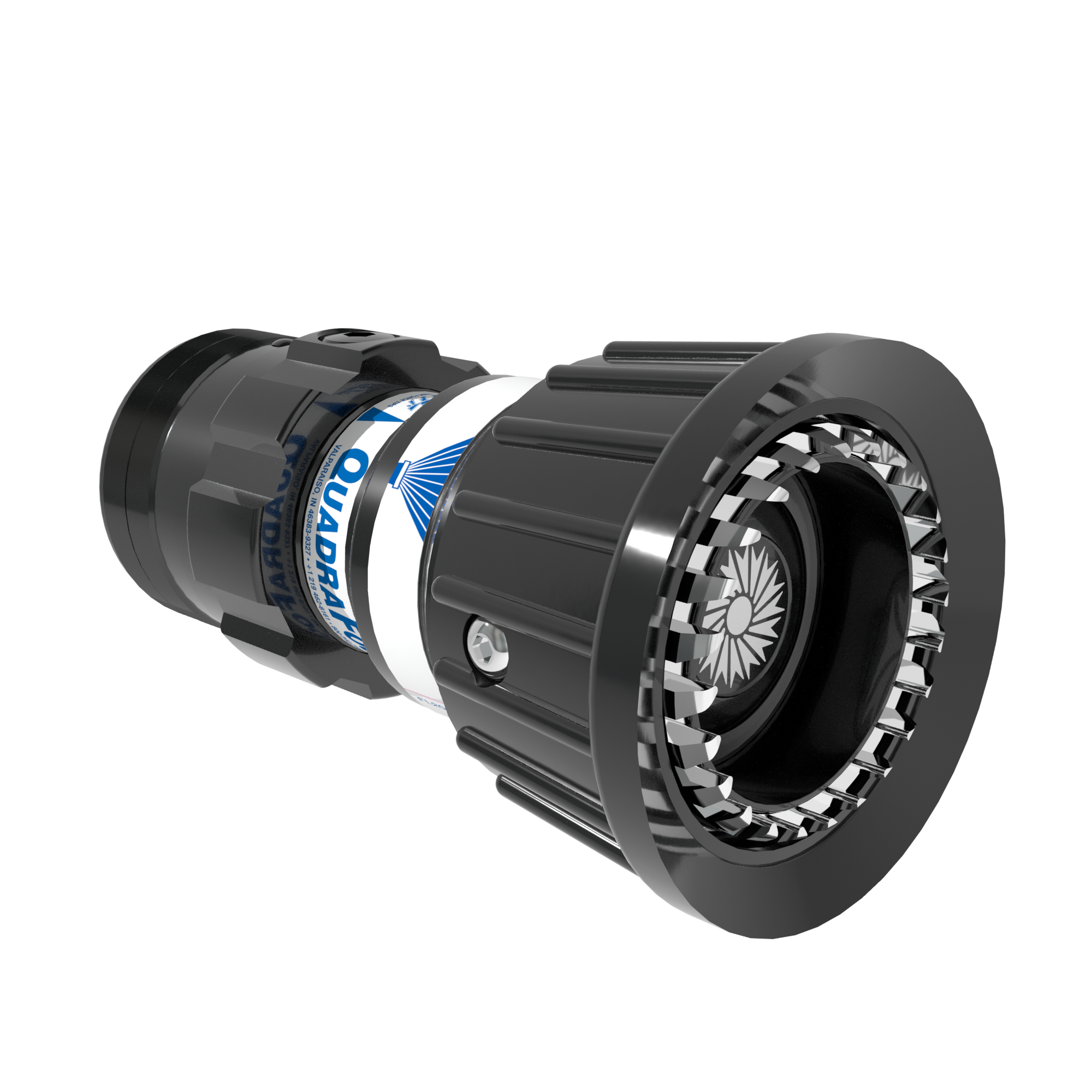

QuadraFog Selectable Nozzle Tip, Integrated Valve – 30/60/95/125 GPM @ 100 PSI, 1.5″ NHF Rigid Inlet, Spinning Metal Teeth
$719.55
Versatile Selectable Flow Combination Nozzle
The QuadraFog® Selectable Nozzle series is built for versatility, offering multiple flow and pressure options to suit various firefighting needs. Available in high and low-pressure models for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, QuadraFog® allows firefighters to switch between a straight stream and dense fog pattern with ease. Compatible with foam attachments for enhanced firefighting power, QuadraFog® provides precision and flexibility for all fireground operations. Key Features: Selectable Flow Options: Choose from multiple flow rate options on each model Pressure Options: Available in 100 PSI (7 bar), 80 PSI (6 Bar), or 75 PSI (5 bar) for your target pressure applications Compatibility: Suitable for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, adaptable for various firefighting setups Fog Pattern Adjustment: Adjustable from straight stream to dense fog, providing tactical control over water application Teeth Options: Choice of fixed metal or spinning metal teeth for effective fog creation Foam Compatibility: Designed to work with low-expansion and multi-expansion foam attachments Available Configurations: Tip only models with integrated valves and one-piece models with ball valves to suit diverse operational needs All Prices in USD
The Task Force Tips QuadraFog Selectable Nozzle Tip, Integrated Valve, offers dynamic flow control for various firefighting applications. Designed as a 2-piece unit, this tip provides immediate flow adjustment and shutoff capabilities directly at the hoseline connection, enhancing operational efficiency and water management.
- Flexible Flow Rates: Easily select between 30, 60, 95, or 125 GPM at 100 PSI (110, 230, 360, 470 LPM at 7 Bar), enabling quick adaptation to diverse fireground scenarios.
- Integrated Valve Control: The integrated valve allows for precise stream management and immediate water shutoff, crucial for conserving water and controlling fire progression.
- Effective Fog Production: Equipped with spinning metal teeth, this nozzle tip generates a consistent and robust fog pattern for effective personal protection and fire suppression.
- Secure Connection: Its 1.5″ NHF rigid inlet with a knurled coupling ensures a stable, reliable attachment to hoselines, preventing unwanted movement during operation.
- Lightweight Handling: At just 2.300 lbs, this tip minimizes fatigue for firefighters, contributing to sustained performance during extended operations.
- Certified Reliability: NFPA/FM certifications underscore its adherence to stringent performance and safety standards.
This Task Force Tips QuadraFog nozzle tip is engineered for critical fire attack, overhaul, and defensive operations where responsive flow selection and dependable performance are paramount for effective incident resolution.
| Color | |
|---|---|
| Nozzle Valve Style |
Integrated Valve |
| Nozzle Teeth |
Spinning Metal |
| Brand | |
| Weight | |
| Target Nozzle Flow (Imp) |
30/60/95/125 GPM |
| Target Nozzle Flow (Met) |
110/230/360/470 LPM |
| Target Nozzle Pressure (Bar) |
7 Bar |
| Target Nozzle Pressure (KPA) |
700 KPA |
| Nozzle Type |
Selectable |
| Certifications | |
| Nozzle Style |
2-Piece ,Tip Only |
| Nozzle Grip |
None |
| Nozzle Hose Size (Imp) |
1.5" |
| Nozzle Hose Size (Met) |
38 mm |
| Nozzle Hose Connection Type |
NH Female |
| Nozzle Hose Coupling Style |
Knurled |
| Nozzle Hose Coupling Swivel |
Rigid |
| Target Nozzle Pressure (PSI) |
100 PSI |
