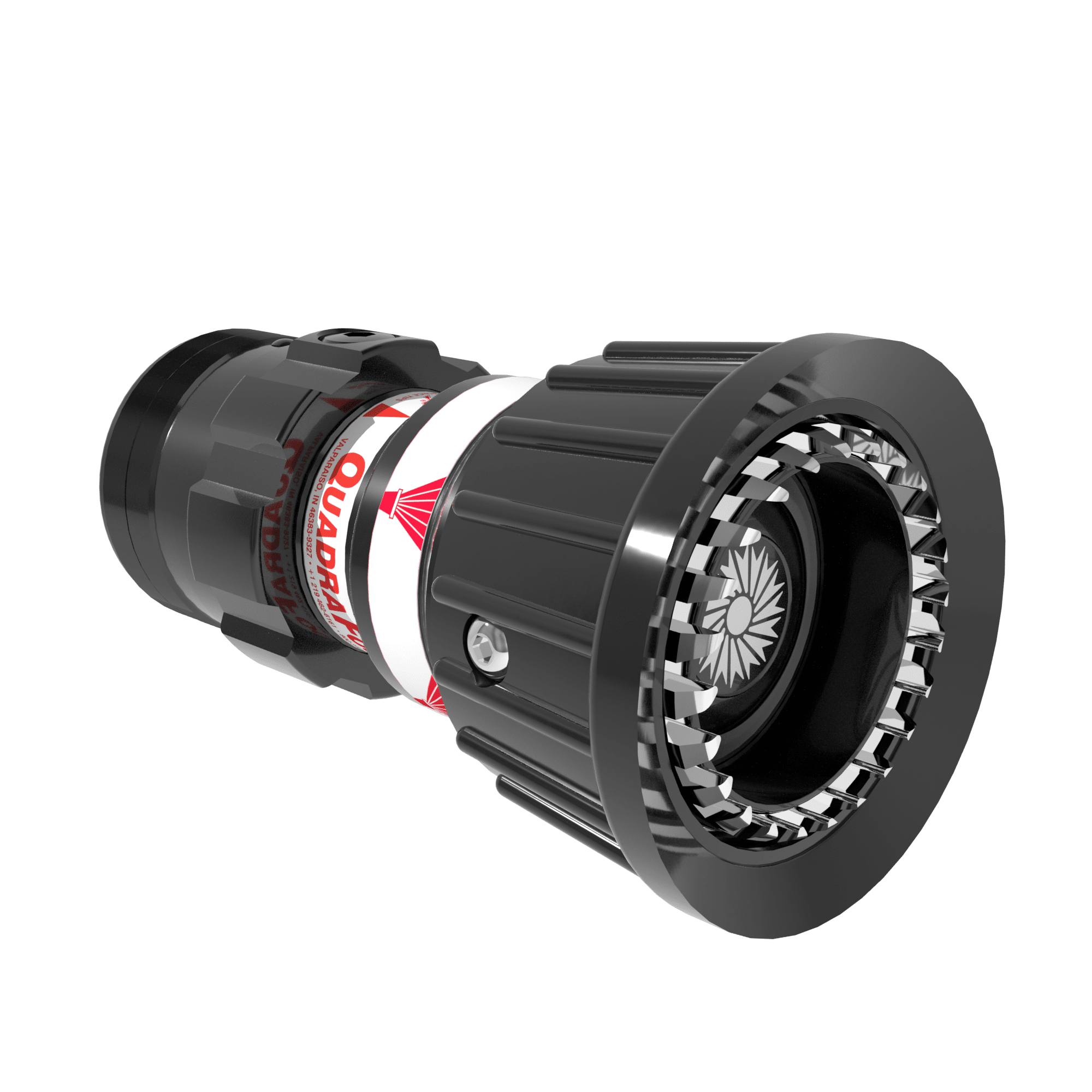

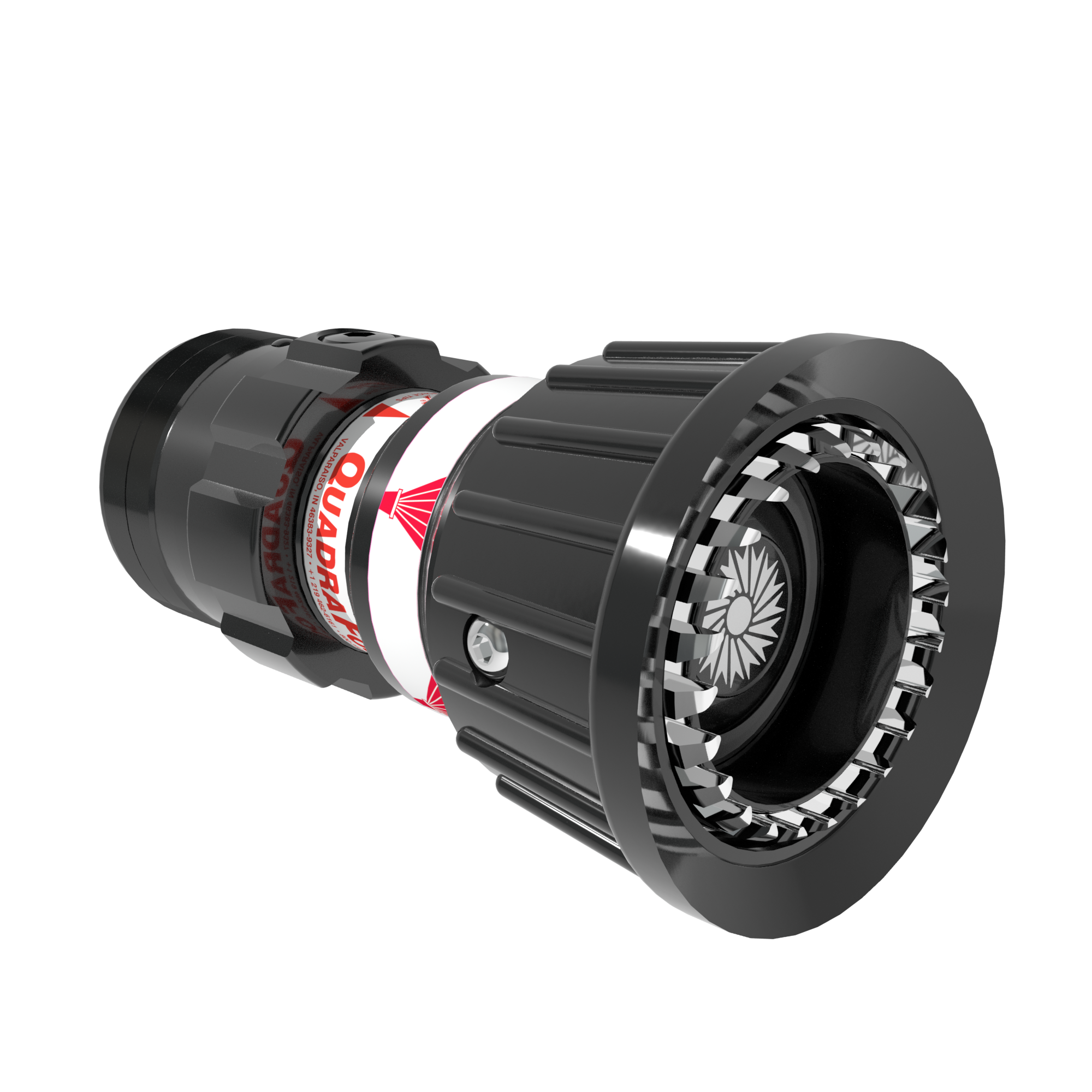

QuadraFog Selectable Nozzle Tip, Integrated Valve – 30/60/95/125 GPM @ 75 PSI, 1.5″ NHF Rigid Inlet, Spinning Metal Teeth
Versatile Selectable Flow Combination Nozzle
The QuadraFog® Selectable Nozzle series is built for versatility, offering multiple flow and pressure options to suit various firefighting needs. Available in high and low-pressure models for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, QuadraFog® allows firefighters to switch between a straight stream and dense fog pattern with ease. Compatible with foam attachments for enhanced firefighting power, QuadraFog® provides precision and flexibility for all fireground operations. Key Features: Selectable Flow Options: Choose from multiple flow rate options on each model Pressure Options: Available in 100 PSI (7 bar), 80 PSI (6 Bar), or 75 PSI (5 bar) for your target pressure applications Compatibility: Suitable for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, adaptable for various firefighting setups Fog Pattern Adjustment: Adjustable from straight stream to dense fog, providing tactical control over water application Teeth Options: Choice of fixed metal or spinning metal teeth for effective fog creation Foam Compatibility: Designed to work with low-expansion and multi-expansion foam attachments Available Configurations: Tip only models with integrated valves and one-piece models with ball valves to suit diverse operational needs All Prices in USD
Out of stock
The Task Force Tips QuadraFog Selectable Nozzle Tip, Integrated Valve is engineered to provide precise water control and pattern versatility for demanding firefighting applications. This essential nozzle tip combines selectable flow with an integrated valve, enabling immediate operational adjustments on the fireground.
- Operational Flexibility: Effortlessly select flow rates of 30, 60, 95, or 125 GPM at 75 PSI, allowing firefighters to adapt water delivery to specific fire conditions and tactical needs.
- Integrated Flow Management: The integrated valve provides instant water control, facilitating rapid on/off and precise flow adjustments directly at the nozzle.
- Robust Fog Production: Equipped with spinning metal teeth, this nozzle tip generates a consistent and effective fog pattern, crucial for personnel protection and efficient water distribution.
- Enhanced Maneuverability: At a lightweight 2.300 lbs, the design minimizes fatigue during extended use, supporting agile handling on dynamic firegrounds.
- Certified Performance: NFPA/FM certifications underscore its adherence to industry-leading performance and safety standards.
Ideal for municipal fire departments and industrial rapid intervention teams, the QuadraFog Selectable Nozzle Tip is built for consistent performance in demanding situations. Its design prioritizes direct control and operational adaptability, making it an indispensable component for effective fire suppression strategies.
| Color | |
|---|---|
| Nozzle Valve Style |
Integrated Valve |
| Nozzle Teeth |
Spinning Metal |
| Brand | |
| Weight | |
| Target Nozzle Flow (Imp) |
30/60/95/125 GPM |
| Target Nozzle Flow (Met) |
110/230/360/470 LPM |
| Target Nozzle Pressure (Bar) |
5 Bar |
| Target Nozzle Pressure (KPA) |
500 KPA |
| Nozzle Type |
Selectable |
| Certifications | |
| Nozzle Style |
2-Piece ,Tip Only |
| Nozzle Grip |
None |
| Nozzle Hose Size (Imp) |
1.5" |
| Nozzle Hose Size (Met) |
38 mm |
| Nozzle Hose Connection Type |
NH Female |
| Nozzle Hose Coupling Style |
Knurled |
| Nozzle Hose Coupling Swivel |
Rigid |
| Target Nozzle Pressure (PSI) |
75 PSI |
