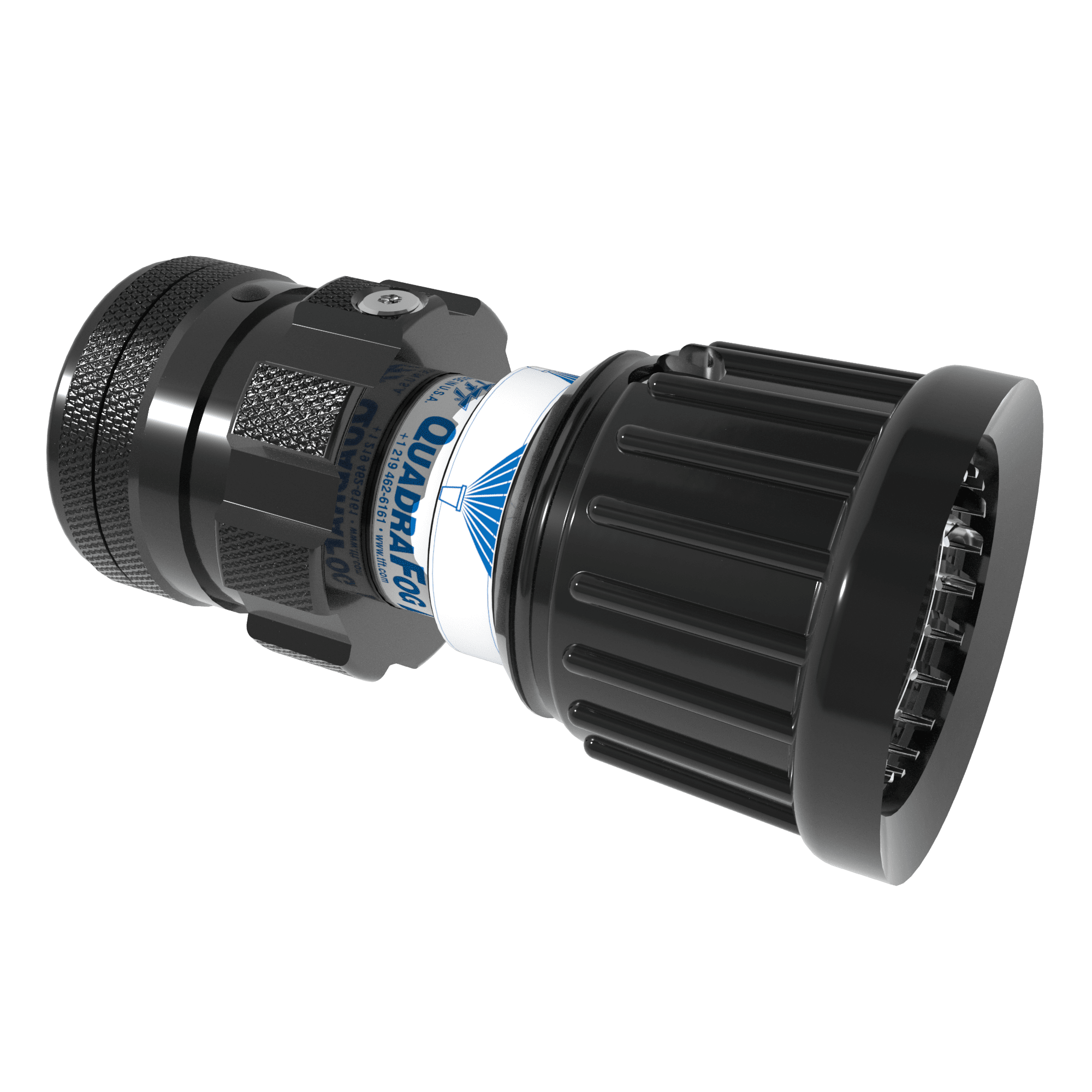

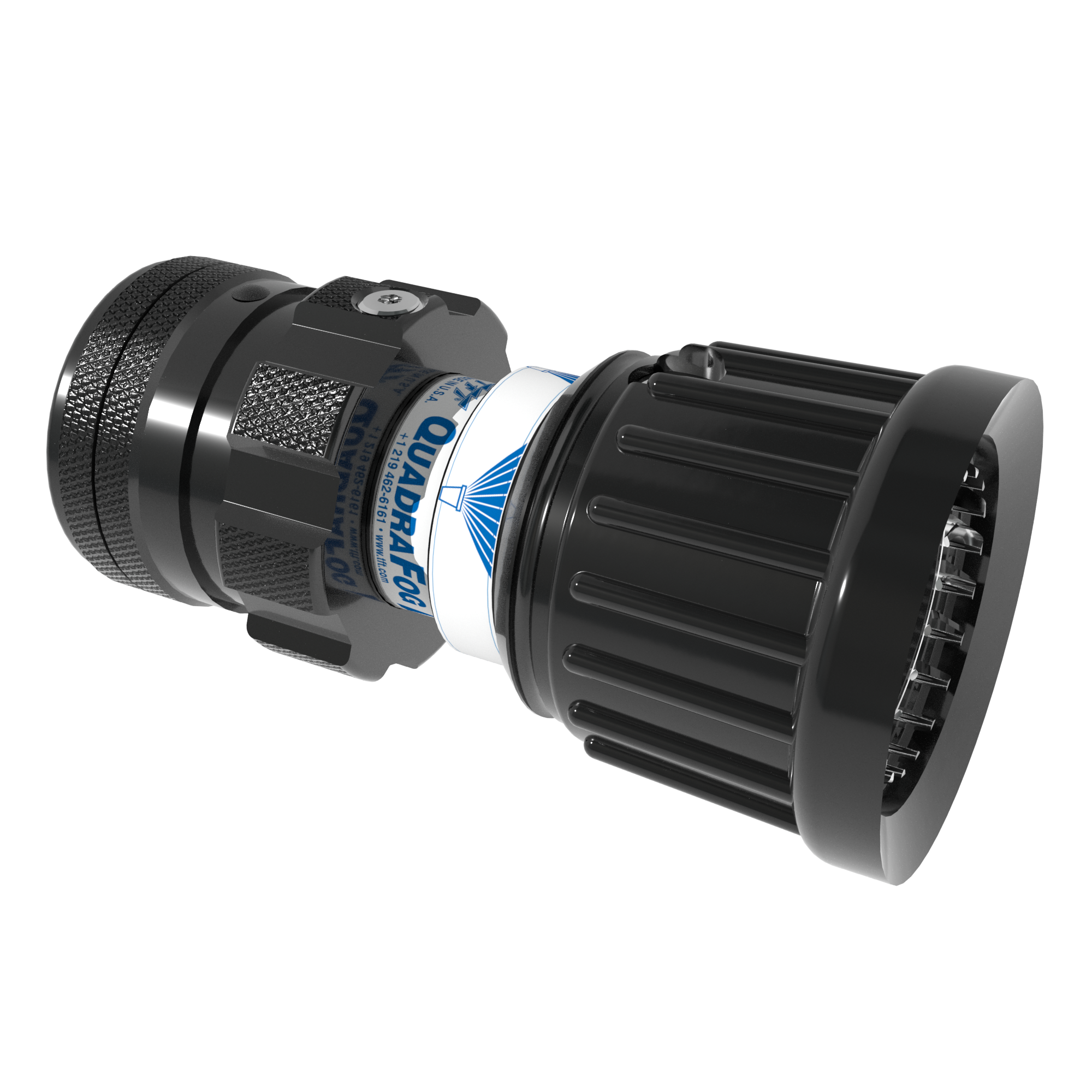

QuadraFog Selectable Nozzle Tip, Integrated Valve – 5/10/24/40 GPM @ 100 PSI, 1″ NPSHF Rigid Inlet, Spinning Metal Teeth
$503.75
Versatile Selectable Flow Combination Nozzle
The QuadraFog® Selectable Nozzle series is built for versatility, offering multiple flow and pressure options to suit various firefighting needs. Available in high and low-pressure models for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, QuadraFog® allows firefighters to switch between a straight stream and dense fog pattern with ease. Compatible with foam attachments for enhanced firefighting power, QuadraFog® provides precision and flexibility for all fireground operations. Key Features: Selectable Flow Options: Choose from multiple flow rate options on each model Pressure Options: Available in 100 PSI (7 bar), 80 PSI (6 Bar), or 75 PSI (5 bar) for your target pressure applications Compatibility: Suitable for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, adaptable for various firefighting setups Fog Pattern Adjustment: Adjustable from straight stream to dense fog, providing tactical control over water application Teeth Options: Choice of fixed metal or spinning metal teeth for effective fog creation Foam Compatibility: Designed to work with low-expansion and multi-expansion foam attachments Available Configurations: Tip only models with integrated valves and one-piece models with ball valves to suit diverse operational needs All Prices in USD
The Task Force Tips QuadraFog Selectable Nozzle Tip with Integrated Valve provides essential flow control for adaptable firefighting operations. Designed for precision and ease of use, this 2-piece nozzle offers immediate water management directly at the point of application, enhancing tactical efficiency on the fireground.
- Four selectable flow settings (5, 10, 24, and 40 GPM @ 100 PSI): This allows operators to quickly adapt water delivery to match specific fire conditions, from low-flow overhaul to higher volume suppression.
- Integrated valve: Provides instant on/off control directly at the nozzle, eliminating the need for separate valve manipulation and improving firefighter responsiveness.
- Durable spinning metal teeth: Ensures a consistent and robust fog pattern while offering enhanced resistance to wear and tear in demanding environments.
- Lightweight design (1.200 lbs): Contributes to reduced operator fatigue and improved maneuverability, particularly when deployed on 1-inch hose lines.
- Rigid 1″ NPSHF inlet: Delivers a secure and stable connection to booster lines or quick-attack hoses, minimizing potential for unintended disconnections during dynamic operations.
This Task Force Tips QuadraFog nozzle is well-suited for a range of applications, including rapid intervention, mop-up, and industrial fire protection, where precise flow selection and robust construction are paramount for effective incident management.
| Color | |
|---|---|
| Nozzle Valve Style |
Integrated Valve |
| Nozzle Teeth |
Spinning Metal |
| Brand | |
| Shipping Box Dimensions |
3.00 × 3.00 × 6.00 in |
| Weight | |
| Target Nozzle Flow (Imp) |
5/10/24/40 GPM |
| Target Nozzle Flow (Met) |
20/40/100/150 LPM |
| Target Nozzle Pressure (Bar) |
7 Bar |
| Target Nozzle Pressure (KPA) |
700 KPA |
| Nozzle Type |
Selectable |
| Nozzle Style |
2-Piece ,Tip Only |
| Nozzle Grip |
None |
| Nozzle Hose Size (Imp) |
1" |
| Nozzle Hose Size (Met) |
25 mm |
| Nozzle Hose Connection Type |
NPSH Female |
| Nozzle Hose Coupling Style |
Knurled |
| Nozzle Hose Coupling Swivel |
Rigid |
| Target Nozzle Pressure (PSI) |
100 PSI |
