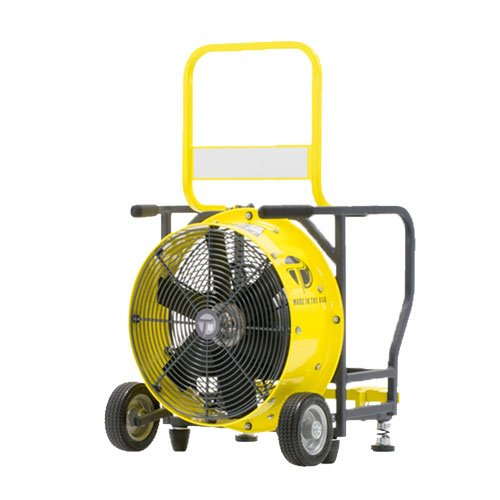

Single – Speed Electric Power Blower
Tempest Single-Speed PPV fans are perfect for departments looking to go electric on a limited budget.
PRODUCT CHARACTERISTICS
Tempest Single-Speed PPV fans feature some of the lightest designs available and are perfect for departments looking to go electric on a limited budget. Available with hazardous location (Explosion Proof, EP) motors which are intended for Class 1, Group C&D and Class 2 Group F&G environments. Motors can be ordered 110-120V/60Hz or 220-240V/50Hz.
| BLADE |
16″, 18″, 21″, or 24″ Diameter Assembly, AirFlex Fiberglass Reinforced Polyamide Blades |
|---|---|
| FRAME |
Rugged, Lightweight, Square-Steel Tubing with Powder-Coat Finish |
| SHROUD |
Turbo 2000 Design, Tapered Aluminum w/ Durable Powder-Coat Finish |
| WHEELS |
16″ Models: 6″ Non-Pneumatic w/ Steel Hubs 18″, 21″ and 24″ Models: 8″ Non-Pneumatic w/ Steel Hubs |
| GRILLE |
Continuous Circular-Wound ,Continuous Circular-Wound, External-Weld Steel Wire with 8 Tie Points for Additional Safety Meets UL & European CE Safety Standards ,External-Weld Steel Wire with 8 Tie Points for Additional Safety Meets UL & European CE Safety Standards |
| MOTOR/DRIVE |
21″ and 24″ Models: 1.0 HP TEFC Motor GFCI Compatible: Designed to Run on 15 AMP Circuit – Actual Draw Approx. 14 AMP 110V / 60Hz Standard (Other Options may be Available) ,Single Speed Electric 16″ Models: 1.5 HP TEFC Motor 18″ |
| EXPLOSION PROOF MOTOR OPTION |
Rated for Class I (Groups C & D) and Class II (Groups F & G) Environments |
| MAXIMUM CORD LENGTH |
14 GA. – 60′ 12 GA. – 95′ 10 GA. – 150′ 8 GA. – 240′ 6 GA. – 380′ |
| TILT |
Foot-Operated Tilt Mechanism 16” Models: Four Position Tilt, +10°, +5°, 0°, -5° 18”, 21”, 24” Models: Five Position Tilt, +15°, +10°, +5°, 0°, -5° |
