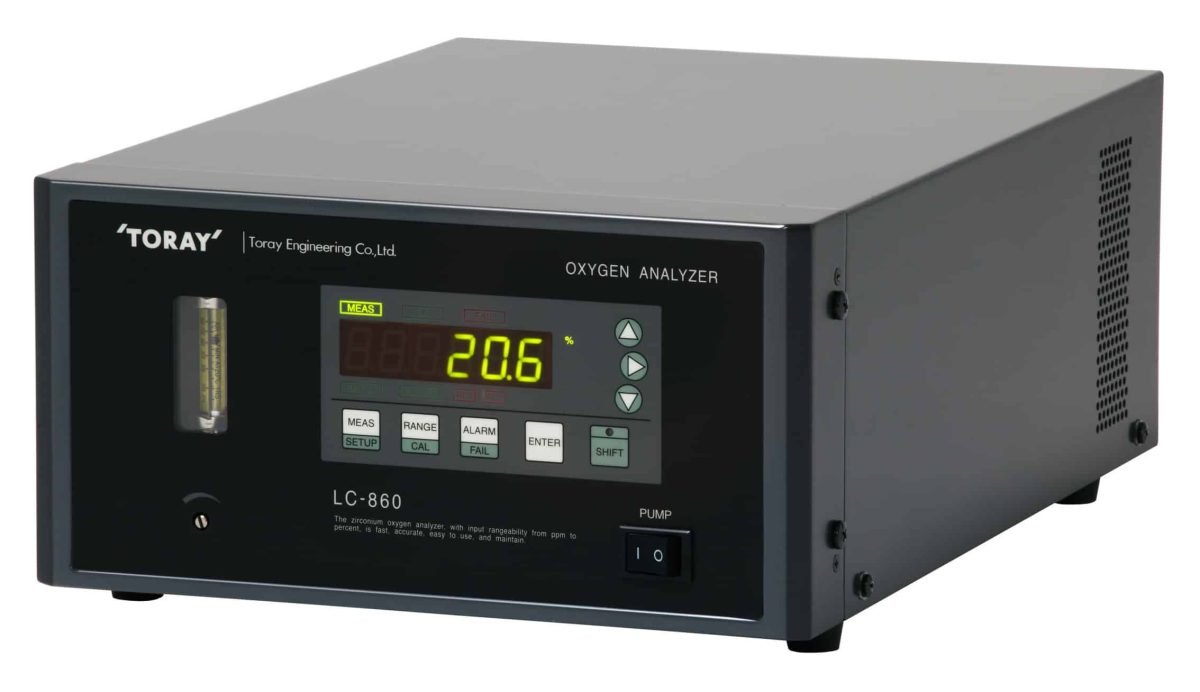

RKI Toray LC-860 Oxygen Analyzer
High Functionality Oxygen Analyzer
The LC-860 Series oxygen analyzer has been specifically developed for the application of controlling and monitoring oxygen in the electronic industry. This analyzer enables the user to measure a wide range of oxygen from the ppb level up to 100% Volume Oxygen. The LC-860 uses a proven zirconium oxide sensor that will provide many years of stable, reliable and precise operation. The LC 860 uses a pump driven system for in-line use that requires AC power supply.
Toray LC-860 Product Datasheet [PDF]
Specifications
| Type | Portable or panel-mounted |
| Display system | O2 conc.; LED Digital, 6 Digits l |
| Measurement range | 0.1ppm 100vol O2
(Oxygen Concentration (less than 1ppm) and 0-1ppm or less is out of warranty.) |
| Response speed | In 30 sec. after changing sampling gas from Inlet. (90% response) |
| Repeatability | Within ±1 % of full scale (Not guaranteed for 1ppm and the 0-1 ppm display range or below) |
| Sampling system | Continuous Suction |
| Sample gas rate | 200±50 ml/min |
| Sample gas conditions | Flow Rate; 1000~2000 ml/min
Pressure; 0.03MPa or less Humidity; Dew point shall be lower than ambient temperature. No Flammable Gas, No Halogen Gas, Silica, Corrosive Gas nor Vapor shall be contained. |
| Recorder output | Output signal: DC 0-10 V, insulation/load resistance 500 Ω max. |
| Communication | Conformed to RS-232C |
| Alarm output | Device Error Output
Concentration Error |
| Self Diagnosis | Warm-up Error, CPU Error,Instruments Over Heat Error, and other 11type |
| Automatic refresh function | Apply current to sensor automatically in detecting the deterioration of sensor during air calibration |
| Ambient temperature | 0-40 °C |
| Warmup time | In 20 min. |
| Dimensions | 288(W) × 144(H) × 400(D)mm (Excluding protrusion) |
| Weight | Approx. 10 kg |
| Gas connection | INLET (Sample Gas); Rc 1/8
BYPASS OUT ; Rc 1/8 OUTLET (Sample Gas); Rc 1/4 |
| Power Source | Voltage; AC 100V ±10 V Frequency; 50/60 Hz |
