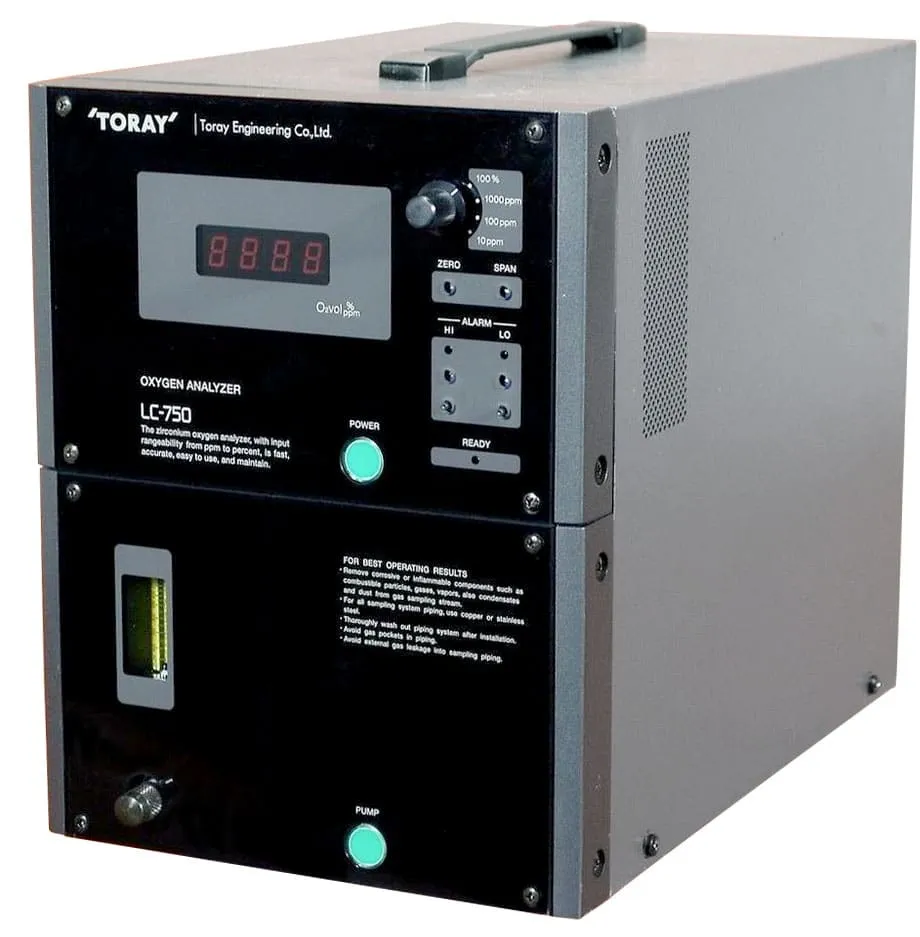

RKI Toray LC-750L/PC-120 Oxygen Analyzer
Built In Type Oxygen Analyzer For Low Concentration Clean Gas
The LC-750 series has been developed to monitor or control almost any inert gas stream that is clean, dry and free of corrosive and combustible components. The LC-750L oxygen analyzers detects low concentrations of O2. The LC-750H oxygen analyzer can detect high and medium concentrations of O2. The built-in sample pump of the PC-120 is used to draw a sample into the analyzer for processing. This analyzer is widely used in the semiconductor industry to monitor for oxygen content in glove box and manufacturing applications. LC 750 PC 120.
Description
Specifications
| Type | Portable or panel-mounted | |
|---|---|---|
| Display system | Digital | Analog |
| Measurement range | 0-10 / 100 / 1000 ppm / 100 vol%O2 | |
| Response speed | Within 90 sec (90 % response) | |
| Repeatability | Within ±0.5 % of full scale (at or above 1 % range) Within ±1 % of full scale (below 1% range) | |
| Sampling system | Continuous suction | |
| Reference gas | 1000-2000 mL/min | |
| Reference gas | Air | |
| Recorder output | DC 0-10 V 4-20 mA | |
| Alarm output | Upper/Lower limit alarm | |
| Ambient temperature | 0-40 °C | |
| Warmup time | Approx. 20 min | |
| Dimensions | 210(W) × 288(H) × 327(D) mm | |
| Weight | Approx. 10 kg | |
| Panel cut dimensions | 225(W) × 269(H) | |
| Gas connection | Rc1/4 (Female) | |
| Power supply | AC 100 V?50/60 Hz | |
| Max. power consumption | 200 VA | |
