- LPG, LNG utlities
- Refineries
- Chemical plants
- Semi-conductor manufacturing plants
- Engineering, public works
- Power station
- Iron and steel works
- Automotive plating processes

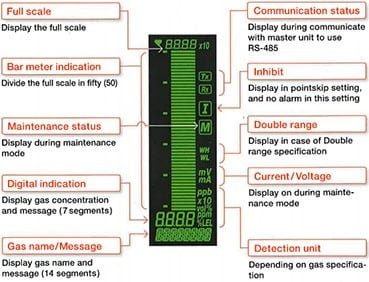

Display Indication
Display indicates gas concentration by two methods; bar meter and digital meter. LCD will change color depending on the concentration level so you can confirm detection condition from a distance. RM-5000 color displays Maximum of 32 points can be connected to use RS-485.
Specifications
|
RM-5000 Series
|
GP-5001 NC-5001 NC-5001W | NP-5001 | SP-5001 | GH-5001 |
|
Detection Gas
|
Combustible | Combustible Inert Gases | Combustible/Toxic | |
|
Indication
|
Character LCD (Digital and bar meter) Green, Yellow, Red (3-colors) | |||
|
Type of acceptable detector head
|
Catalytic combustion new ceramic | Thermal conductivity | Special catalytic/semiconductor combination sensor | semiconductor |
|
Acceptable input signal
|
Direct sensor signal | |||
|
Applicable cable
|
CVV-4C | CVVS-4C | CVV-4C | CVVS-3C |
|
Max distance
|
Max 2.0km | |||
|
Output signal
|
Ouput of electric power transmission (non-isolated) 4-20mADC, max loop load 300Ω | |||
|
Alamr indication
|
Flashing or lighting lamp: Red (alarm1), Red (alarm2), Self-latching or Auto reset, Lock-in | |||
|
Trouble Alarm
|
Orange lamp flashing (fault), non-latching / content indication | |||
|
Alarm relays
|
Normally energized or de-energized normally-open or closed contact rated 0.5A at 100VAC, 1.5A at 30VDC (resistive) | |||
|
Operating condition
|
-10~+40C (14 F to 104 F), 10~90% RH (non-condensing) | |||
|
Power supply
|
24VDC | |||
|
Power consumption
|
Max 7W | |||
|
Dimensions & weight
|
Approx. 1.16w x 4.72h x 3.62d inches | |||
|
Structure
|
Card type with front display enclosed in a case (a single-unit or multi-unit case) | |||
|
RM-5000 Series
|
EC-5002 | OX-5001 | OX-5002 | RM-5002 | RM-5003 |
|
Detection Gas
|
Toxic | Oxygen | Combustible, Toxic, Oxygen | ||
|
Indication
|
Character LCD (Digital and bar meter) Green, Yellow, Red (3-colors) | ||||
|
Type of acceptable detector head
|
Electrochemical cell | Galvanic cell | 4-20mA outputs | ||
| 2-wire type | 3-wire type | ||||
|
Acceptable input signal
|
4-20mA output | Direct Sensor | 4-20mA output | ||
|
Applicable cable
|
CVVS-2C | CVVS-3C | |||
|
Max distance
|
Max 2.0km | Max 600m | Max 2.0km | Depending on the detector | |
|
Output signal
|
Ouput of electric power transmission (non-isolated) 4-20mADC, max loop load 300Ω | ||||
|
Alamr indication
|
Flashing or lighting lamp: Red (alarm1), Red (alarm2), Self-latching or Auto reset, Lock-in | ||||
|
Trouble Alarm
|
Orange lamp flashing (fault), non-latching / content indication | ||||
|
Alarm relays
|
Normally energized or de-energized normally-open or closed contact rated 0.5A at 100VAC, 1.5A at 30VDC (resistive) | ||||
|
Operating condition
|
-10~+40C (14 F to 104 F), 10~90% RH (non-condensing) | ||||
|
Power supply
|
24VDC | ||||
|
Power consumption
|
Max 3W | Max 2W | Max 3W | Max 2W | Max 8W |
|
Dimensions & weight
|
Approx. 1.16w x 4.72h x 3.62d inches | ||||
|
Structure
|
Card type with front display enclosed in a case (a single-unit or multi-unit case) | ||||
