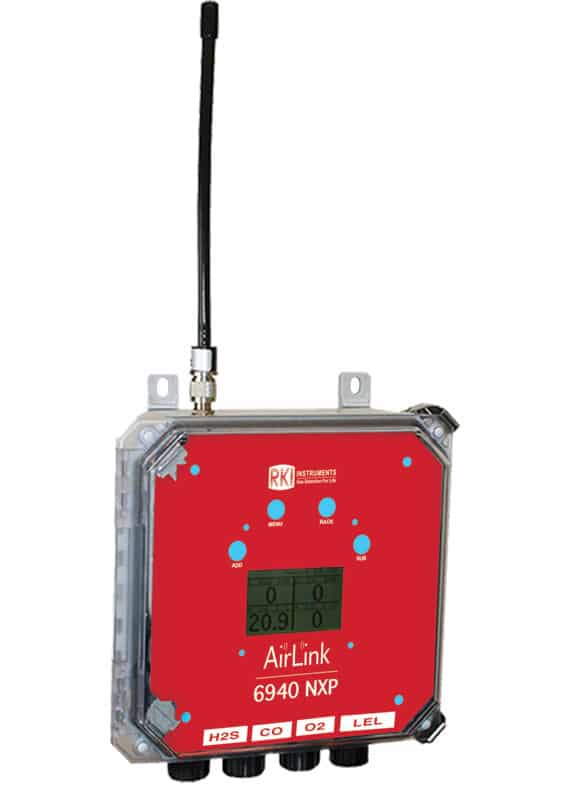

RKI AirLink 6940NXP Wireless Multi-Gas Detector
Wireless AC Powered Quad head
Features
- Electrochemical, PID, or low power IR sensors
- Wireless communication
- 900 MHz radio and 52 networks
- 2.4 GHz radio and 78 networks
- AC powered with integrated backup battery pack
- Graphical LCD with LED backlight
- Adjustable background gas setting per setting
- 4 Push-button interface (MENU, ADD, SUB, and BACK) with 4 corresponding magnetic, non-intrusive switches
- Sensor warranty subject to factory verification
- 1-Year limited hardware warranty
Description
AirLink 6940NXP Product Datasheet [PDF]
AirLink 6940NXP Operator’s Manual [PDF]
The RKI AirLink 6940NXP series AC powered ambient air multi-gas detector simultaneously uses up to four sensor elements to detect an array of gases. The Assembly reports once a minute, however the reporting rate will increase to once every five seconds if the target gases exceed a preset background level. Operates from an AC power supply with an internal backup
battery pack. Magnetic switches allow for non-intrusive calibration while in the field as well as full system settings and diagnostics.
The AirLink 6940NXP
NXP represents the latest leading edge wireless technology in fixed gas detection today.
Related Services
- Design, Consultations, and Engineering
- Installation
- Start-up
- Training
- System Maintenance
ApplicationApplication
- Petrochemical plants
- Refineries
- Water & wastewater treatment plants
- Pulp & paper mills
- Manufacturing facilities
- Chemical plants
Sensor Options
| Gas Type | Range | T90 | Hazard Classification |
| AsH3 | 0 – 1 ppm | < 30 sec. | Class 1, Div 2 |
| CH2O | 0 – 10 ppm | < 30 sec. | Class 1, Div 2 |
| CH3SH | 0 – 10 ppm | < 100 sec. | Class 1, Div 2 |
| CL2 | 0 – 10 ppm | < 60 sec. | Class 1, Div 2 |
| CLO2 | 0 – 1 ppm | < 120 sec. | Class 1, Div 2 |
| CO | 0 – 1000 ppm | < 30 sec. | Class 1, Div 1 |
| CO2 | 0 – 1.5% Vol. | < 30 sec. | Class 1, Div 1 |
| ETO | 0 – 10 ppm | < 80 sec. | Class 1, Div 2 |
| F2 | 0 – 1 ppm | < 80 sec. | Class 1, Div 2 |
| H2 | 0 – 4% Vol. | < 60 sec. | Class 1, Div 1 |
| H2S | 0 – 100 ppm | < 30 sec. | Class 1, Div 1 |
| H2S | 0 – 2000 ppm | < 25 sec. | Class 1, Div 1 |
| HBr | 0 – 30 ppm | < 40 sec. | Class 1, Div 2 |
| HCL | 0 – 30 ppm | < 300 sec. | Class 1, Div 2 |
| HCN | 0 – 50 ppm | < 70 sec. | Class 1, Div 2 |
| HF | 0 – 10 ppm | < 90 sec. | Class 1, Div 2 |
| LEL-IR | 0 – 100% LEL (0 – 5% Vol.) |
< 30 sec. | Class 1, Div 1 |
| LEL HC-IR | 0 – 100% LEL | < 30 sec. | Class 1, Div 1 |
| NH3 | 0 – 100 ppm | < 90 sec. | Class 1, Div 2 |
| NH3 | 0 – 300 ppm | < 120 sec. | Class 1, Div 2 |
| NH3 | 0 – 1000 ppm | < 120 sec. | Class 1, Div 2 |
| NO | 0 – 250 ppm | < 40 sec. | Class 1, Div 2 |
| NO2 | 0 – 20 ppm | < 25 sec. | Class 1, Div 2 |
| O2 | 0 – 25% Vol. | < 15 sec. | Class 1, Div 1 |
| O3 | 0 – 5 ppm | < 60 sec. | Class 1, Div 2 |
| PH3 | 0 – 5 ppm | < 30 sec. | Class 1, Div 2 |
| SO2 | 0 – 20 ppm | < 35 sec. | Class 1, Div 1 |
| PID VOC 10.6 eV Low Range | 0 – 10.00 / 20.00 / 50.00 ppm |
< 3 sec. | Class 1, Div 1 |
| PID VOC 10.6 eV High Range | 0 – 100 / 200 / 500 / 1000 / 2000 ppm |
< 3 sec. | Class 1, Div 1 |
| PID – VOC 10.0 eV |
0 – 10.00 / 20.00 / 50.00 / 100 ppm |
< 3 sec. | Class 1, Div 1 |
| PID – VOC 11.7 eV |
0 – 100 ppm | < 3 sec. | Class 1, Div 1 |
Specifications
| Sensor Type | Electrochemical, PID and / or low-power infrared sensor |
| Power Type | AC power supply with integrated 3.6VDC/76 Ah backup battery pack |
| RF Connection | External N-female radio frequency (RF) connector, flexible antenna included |
| Display Screen | 160×104 Resolution graphical LCD screen
Transflective (sunlight readable) with LED backlight |
| Interface | 4 Push-buttons (MENU, ADD, SUB, and BACK)
4 Magnetic non-intrusive switches for calibration (MENU, ADD, SUB, and BACK) |
| Customizable Settings | Adjustable background gas setting (1% to 10% of full scale) settable per sensor element |
| Temperature Range | -40°C to +60°C |
| Wireless Radio Options | 900 MHz (200 mW) radio or 2.4 GHz (125 mW) radio |
| Networks | 52 Networks (900 MHz radio) or 78 networks (II 2.4 GHz radio)
255 addresses per network |
| Product Dimensions | 5 in. D x 10.5 in. W x 20 in. H (Max. dimensions with attachments) |
| Enclosure Material | NEMA Class I, 4, 4X and 6 fiberglass enclosure with clear lid – IP 66, UL 508 and UL 746C (f1) rated |
| Hardware Warranty | Limited one year |
| Sensor Element Warranty | Varies with sensor element and is subject to factory verification |
| Compatible Controllers | AirLink 7010, AirLink 7032, and AirLink 7543 |
| Optional Remote Sensor Kit | Electrochemical sensor — up to 250 feet of cable Low power infrared sensor — up to 40 feet of cable Photo Ionization Detector (PID) — up to 35 feet of cable |
