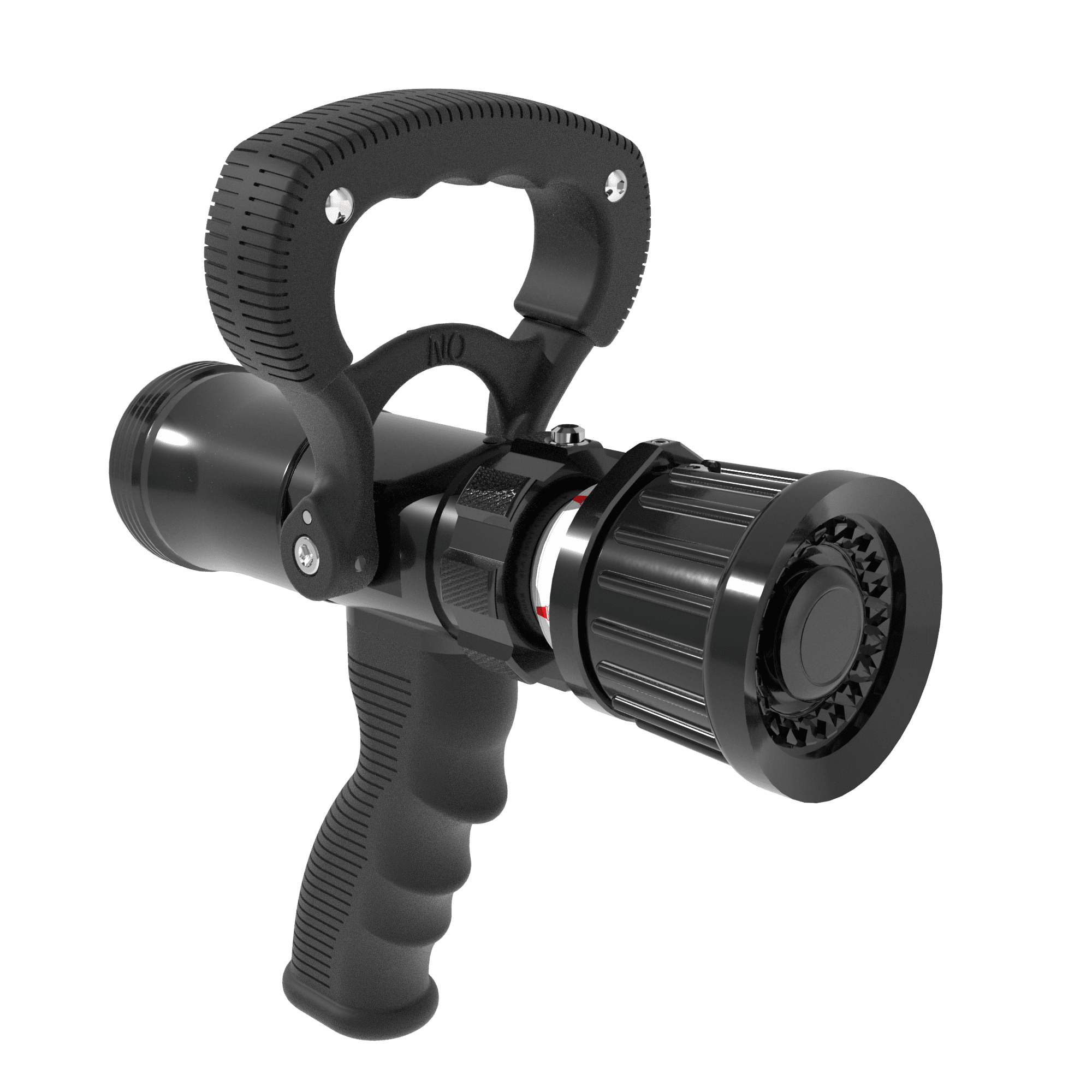

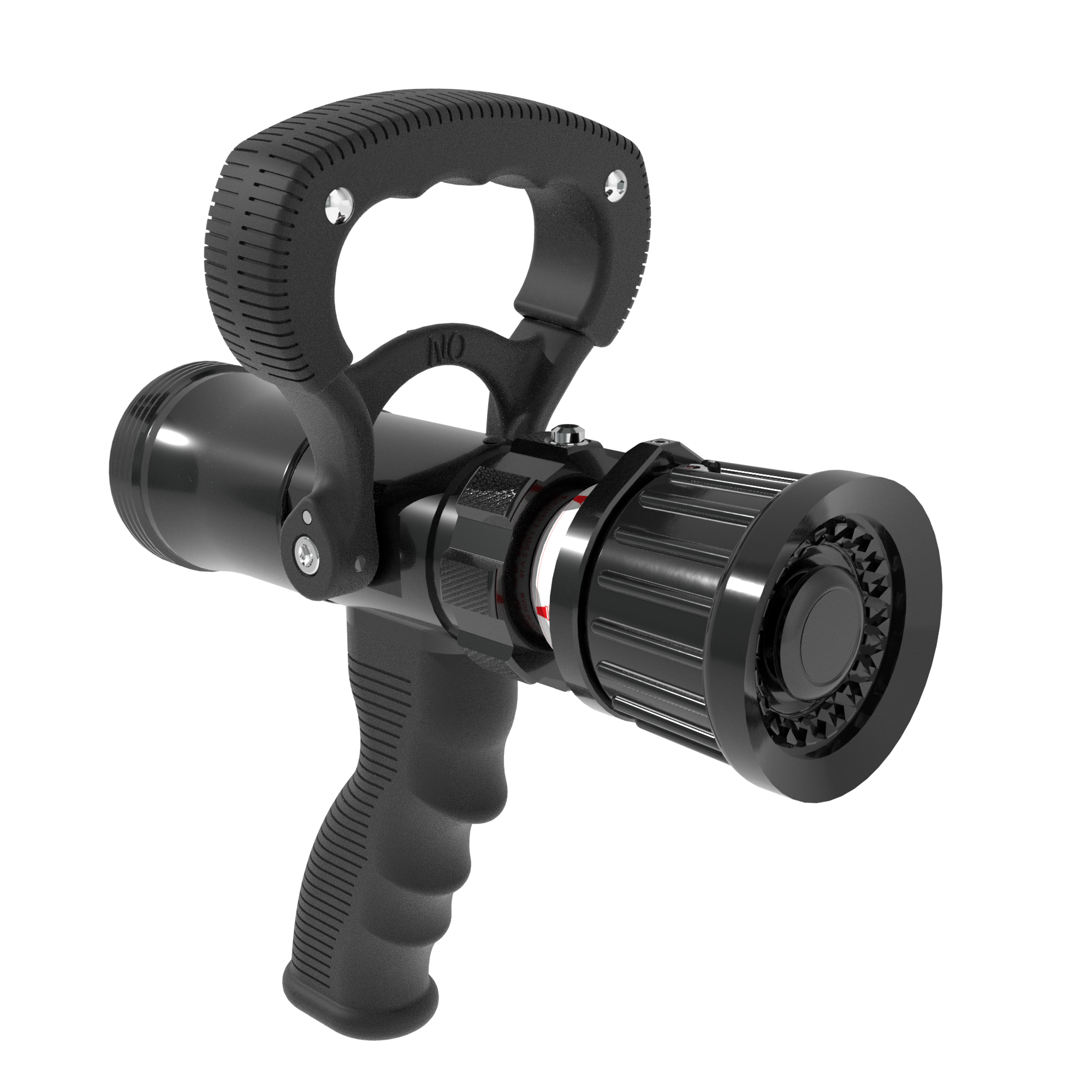

QuadraFog Selectable One-Piece EN Nozzle With Pistol Grip, Ball Valve – 20/40/100/150 LPM @ 6 Bar, 52 mm BSPM Extended Swivel Inlet, Metal Teeth
Versatile Selectable Flow Combination Nozzle
The QuadraFog® Selectable Nozzle series is built for versatility, offering multiple flow and pressure options to suit various firefighting needs. Available in high and low-pressure models for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, QuadraFog® allows firefighters to switch between a straight stream and dense fog pattern with ease. Compatible with foam attachments for enhanced firefighting power, QuadraFog® provides precision and flexibility for all fireground operations. Key Features: Selectable Flow Options: Choose from multiple flow rate options on each model Pressure Options: Available in 100 PSI (7 bar), 80 PSI (6 Bar), or 75 PSI (5 bar) for your target pressure applications Compatibility: Suitable for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, adaptable for various firefighting setups Fog Pattern Adjustment: Adjustable from straight stream to dense fog, providing tactical control over water application Teeth Options: Choice of fixed metal or spinning metal teeth for effective fog creation Foam Compatibility: Designed to work with low-expansion and multi-expansion foam attachments Available Configurations: Tip only models with integrated valves and one-piece models with ball valves to suit diverse operational needs All Prices in USD
Out of stock
The Task Force Tips QuadraFog Selectable One-Piece EN Nozzle is purpose-built for precise water stream management, offering firefighters immediate control across diverse fireground scenarios. Combining a robust, one-piece design with a pistol grip, it ensures reliable performance and operational flexibility.
- Adaptable flow rates of 20/40/100/150 LPM at 6 Bar provide tactical versatility for varying fire conditions and suppression needs.
- The responsive ball valve ensures instantaneous flow control and positive shut-off, enhancing operational safety and efficiency.
- An ergonomic pistol grip, combined with fixed metal teeth, optimizes handling and ensures a consistent fog pattern, even under demanding conditions.
- The 52 mm BSPM extended swivel inlet facilitates rapid, secure hose connection and minimizes hose kinking during deployment.
- Certified to EN 15182-2 Type 3 standards, this nozzle guarantees compliance and robust construction for critical operations.
This design approach ensures maximum operational efficiency and reliable performance for municipal and industrial firefighting applications, where sustained durability and precise water application are critical.
| Color | |
|---|---|
| Nozzle Valve Style |
Ball Valve |
| Nozzle Teeth |
Fixed Metal |
| Brand | |
| Weight | |
| Target Nozzle Flow (Imp) |
5/10/24/40 GPM |
| Target Nozzle Flow (Met) |
20/40/100/150 LPM |
| Target Nozzle Pressure (Bar) |
6 Bar |
| Target Nozzle Pressure (KPA) |
600 KPA |
| Nozzle Type |
Selectable |
| Certifications | |
| Nozzle Style |
1-Piece ,One-Piece |
| Nozzle Grip |
Pistol |
| Nozzle Hose Size (Imp) |
2" |
| Nozzle Hose Size (Met) |
52 mm |
| Nozzle Hose Connection Type |
BSP Male |
| Nozzle Hose Coupling Style |
Male Threads (Extended) |
| Nozzle Hose Coupling Swivel |
Swivel |
| Target Nozzle Pressure (PSI) |
80 PSI |
