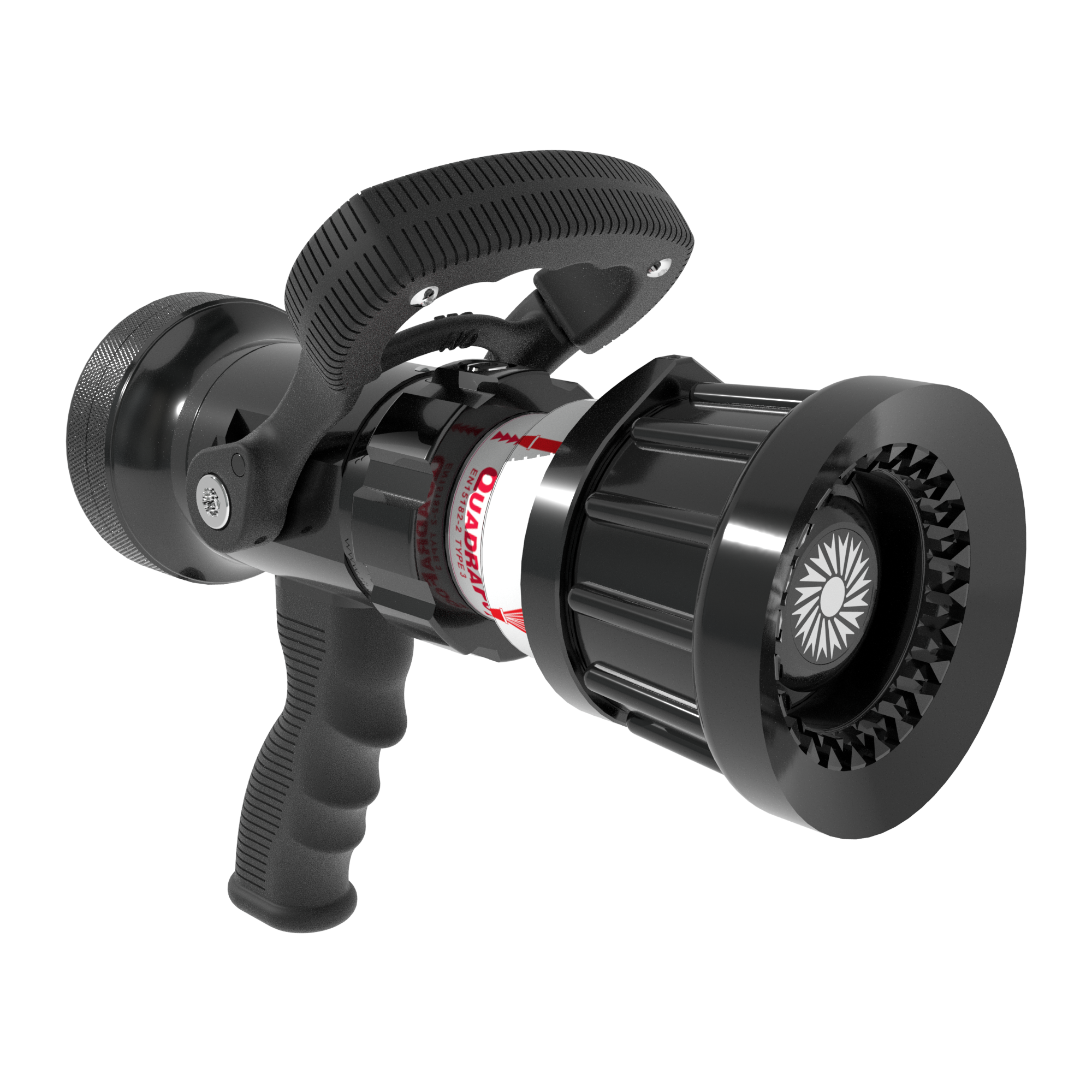

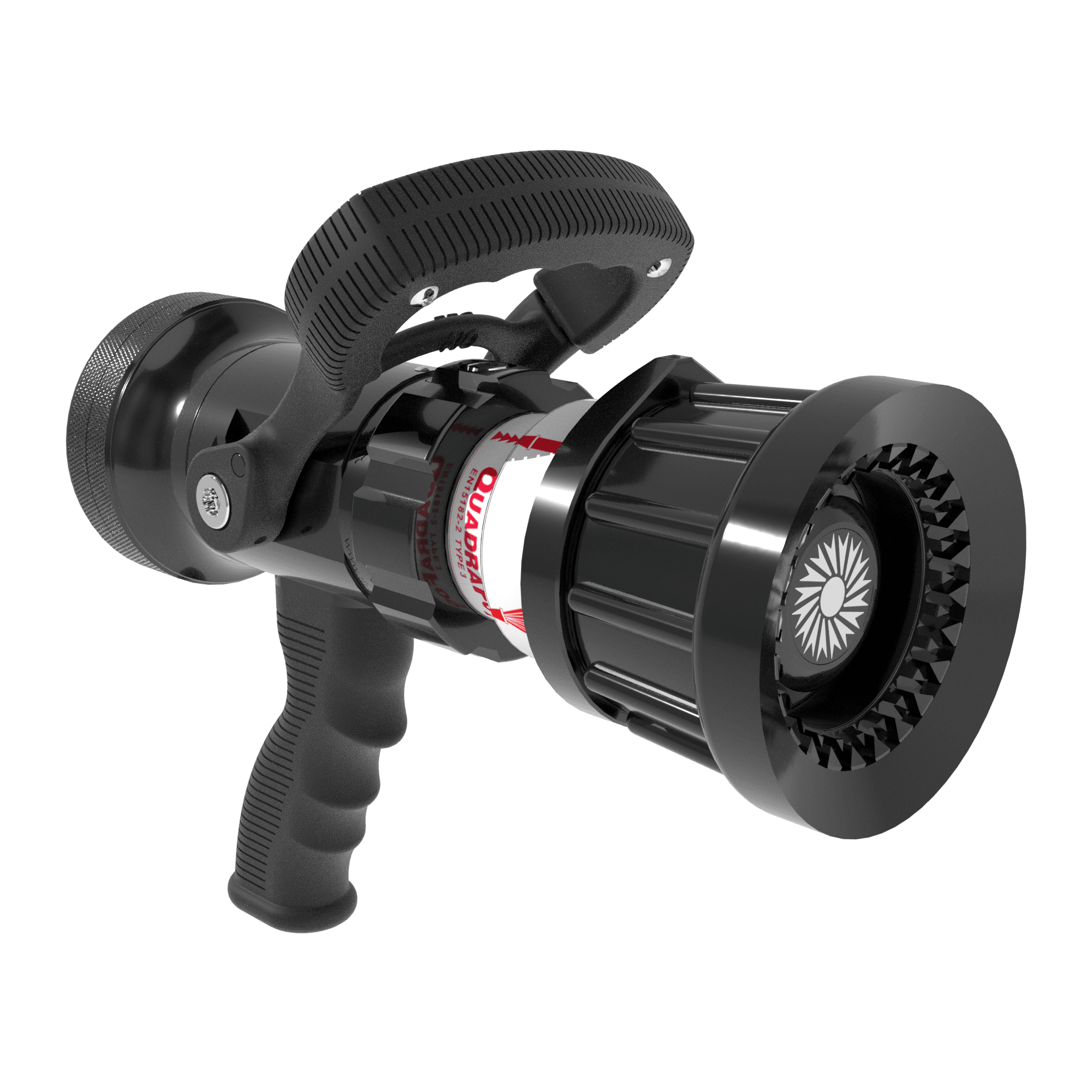

QuadraFog Selectable One-Piece Nozzle With Pistol Grip, Ball Valve – 285/500/600/800/1000 LPM @ 6 Bar, 65 mm BSPF Rocker Swivel Inlet, Metal Teeth
Versatile Selectable Flow Combination Nozzle
The QuadraFog® Selectable Nozzle series is built for versatility, offering multiple flow and pressure options to suit various firefighting needs. Available in high and low-pressure models for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, QuadraFog® allows firefighters to switch between a straight stream and dense fog pattern with ease. Compatible with foam attachments for enhanced firefighting power, QuadraFog® provides precision and flexibility for all fireground operations. Key Features: Selectable Flow Options: Choose from multiple flow rate options on each model Pressure Options: Available in 100 PSI (7 bar), 80 PSI (6 Bar), or 75 PSI (5 bar) for your target pressure applications Compatibility: Suitable for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, adaptable for various firefighting setups Fog Pattern Adjustment: Adjustable from straight stream to dense fog, providing tactical control over water application Teeth Options: Choice of fixed metal or spinning metal teeth for effective fog creation Foam Compatibility: Designed to work with low-expansion and multi-expansion foam attachments Available Configurations: Tip only models with integrated valves and one-piece models with ball valves to suit diverse operational needs All Prices in USD
Out of stock
The QuadraFog Selectable One-Piece Nozzle from Task Force Tips delivers robust flow control for demanding firefighting operations. Engineered for versatility, this nozzle provides firefighters with immediate access to multiple flow rates, ensuring adaptable water delivery in diverse incident scenarios.
- Selectable Flow Control: Offers precise adjustments across 285, 500, 600, 800, and 1000 LPM at 6 Bar (75-260 GPM @ 80 PSI), enabling optimal water application for varying fire conditions.
- Positive Shut-off: Features an integrated Ball Valve for reliable stream control and immediate water cessation, enhancing operational safety and efficiency.
- Enhanced Handling: The ergonomic Pistol Grip combined with a 6.900 lbs weight ensures comfortable and controlled operation during extended use.
- Durable Stream Pattern: Equipped with Fixed Metal Teeth to produce a consistent and robust fog pattern, maintaining integrity even under intense conditions.
- Secure, Agile Connection: Utilizes a 65 mm BSPF Rocker Swivel Inlet, facilitating quick, secure hose attachment and reducing kinking for improved maneuverability on the fireground.
This Task Force Tips QuadraFog nozzle is designed for critical applications ranging from structural attacks to industrial incidents, where rapid flow adjustment, reliable control, and durable performance are paramount.
| Color | |
|---|---|
| Nozzle Valve Style |
Ball Valve |
| Nozzle Teeth |
Fixed Metal |
| Brand | |
| Weight | |
| Target Nozzle Flow (Imp) |
75/130/160/210/260 GPM |
| Target Nozzle Flow (Met) |
285/500/600/800/1000 LPM |
| Target Nozzle Pressure (Bar) |
6 Bar |
| Target Nozzle Pressure (KPA) |
600 KPA |
| Nozzle Type |
Selectable |
| Nozzle Style |
1-Piece ,One-Piece |
| Nozzle Grip |
Pistol |
| Nozzle Hose Size (Imp) |
2.5" |
| Nozzle Hose Size (Met) |
65 mm |
| Nozzle Hose Connection Type |
BSP Female |
| Nozzle Hose Coupling Style |
Rocker Lugs |
| Nozzle Hose Coupling Swivel |
Swivel |
| Target Nozzle Pressure (PSI) |
80 PSI |
