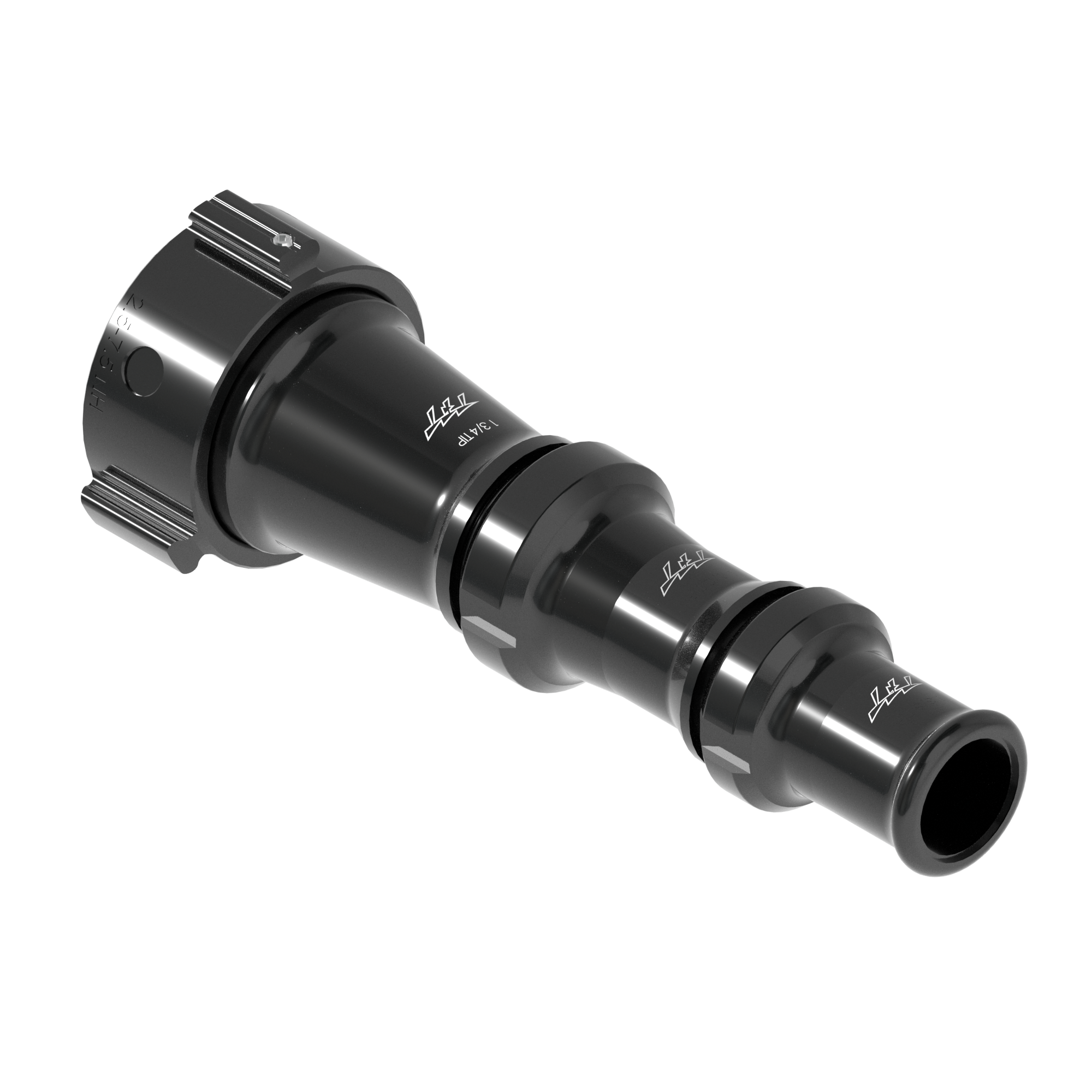

Smooth Bore Masterstream Quad Stack Nozzle Tip Set (1-3/8″, 1-1/2″, 1-3/4″) – 2.5″ NHF Inlet
$466.70
Unmatched Stream Reach & Penetration
Smooth Bore Masterstream Nozzles deliver powerful, straight streams for maximum reach and fireground penetration, ensuring optimal performance in firefighting operations. Key Features: High-Quality Construction: Made from aluminum alloy with hard coat anodization for durability Exceptional Stream Quality: Smooth, tapered waterway for a solid and focused stream Critical Orifice Protection: Recessed edge and aluminum bumper shield the nozzle from damage Easy Identification: Laser-engraved tip size and pressure/flow chart for quick reference Wide Flow Range: Handles flow rates from 250 GPM (900 LPM) to 5,000 GPM (19,000 LPM) based on tip size Lightweight: Designed for easy handling without compromising performance Enhanced Durability: Hard coat finish resists wear and tear in the most demanding environments Monitor Compatibility: Compatible with portable and fixed monitors from any manufacturer for any application Proven Reliability: Simple, no-frills design for consistent, effective fireground operation All Prices in USD
The Task Force Tips Smooth Bore Masterstream Quad Stack Nozzle Tip Set (1-3/8″, 1-1/2″, 1-3/4″) – 2.5″ NHF Inlet delivers adaptable, high-volume water application for demanding master stream operations. Engineered for precision, this smooth bore tip set provides firefighters with selectable flow capabilities to address varied incident requirements.
- The stacked tip design includes three distinct orifice sizes—1-3/8″, 1-1/2″, and 1-3/4″—providing targeted flows of 500, 600, or 850 GPM at a standard 80 PSI operating pressure.
- Quickly adjust flow characteristics on the fireground by manually changing between the stacked tips, optimizing water delivery without needing to swap out the entire nozzle assembly.
- Features a 2.5″ NH Female inlet connection with a swivel rocker coupling, ensuring rapid and secure attachment to master stream appliances or hose lines while preventing twists.
- The smooth bore configuration, without nozzle teeth, produces a focused, coherent stream for maximum reach and concentrated water delivery.
- Weighing 3.000 lbs, this set offers a balance of robust performance and manageable handling during critical deployments.
This Task Force Tips master stream nozzle tip set provides essential tactical flexibility, allowing personnel to fine-tune water delivery for industrial sites, municipal operations, or other large-scale incidents where precise, high-volume flow is paramount.
| Color | |
|---|---|
| Nozzle Valve Style |
Sold Separately |
| Nozzle Teeth |
None |
| Brand | |
| Shipping Box Dimensions |
14.00 × 8.00 × 8.00 in |
| Weight | |
| Target Nozzle Flow (Imp) |
500/600/850 GPM |
| Target Nozzle Flow (Met) |
1900/2300/3200 LPM |
| Target Nozzle Pressure (Bar) |
5 Bar |
| Target Nozzle Pressure (KPA) |
500 KPA |
| Nozzle Type |
Smooth Bore |
| Nozzle Style |
Stacked Tips |
| Target Nozzle Pressure (Imp) |
80 PSI |
| Nozzle Orifice Size (Imp) |
1-3/8", 1-1/2", 1-3/4" |
| Nozzle Orifice Size (Met) |
35 mm, 38 mm, 44 mm |
| Nozzle Shaper Actuation |
Manual |
| Nozzle Power |
Manual |
| Nozzle Inlet Size (Imp) |
2.5" |
| Nozzle Inlet Size (Met) |
65 mm |
| Nozzle Inlet Connection Type |
NH Female |
| Nozzle Inlet Coupling Style |
Rocker |
| Nozzle Inlet Coupling Swivel |
Swivel |
