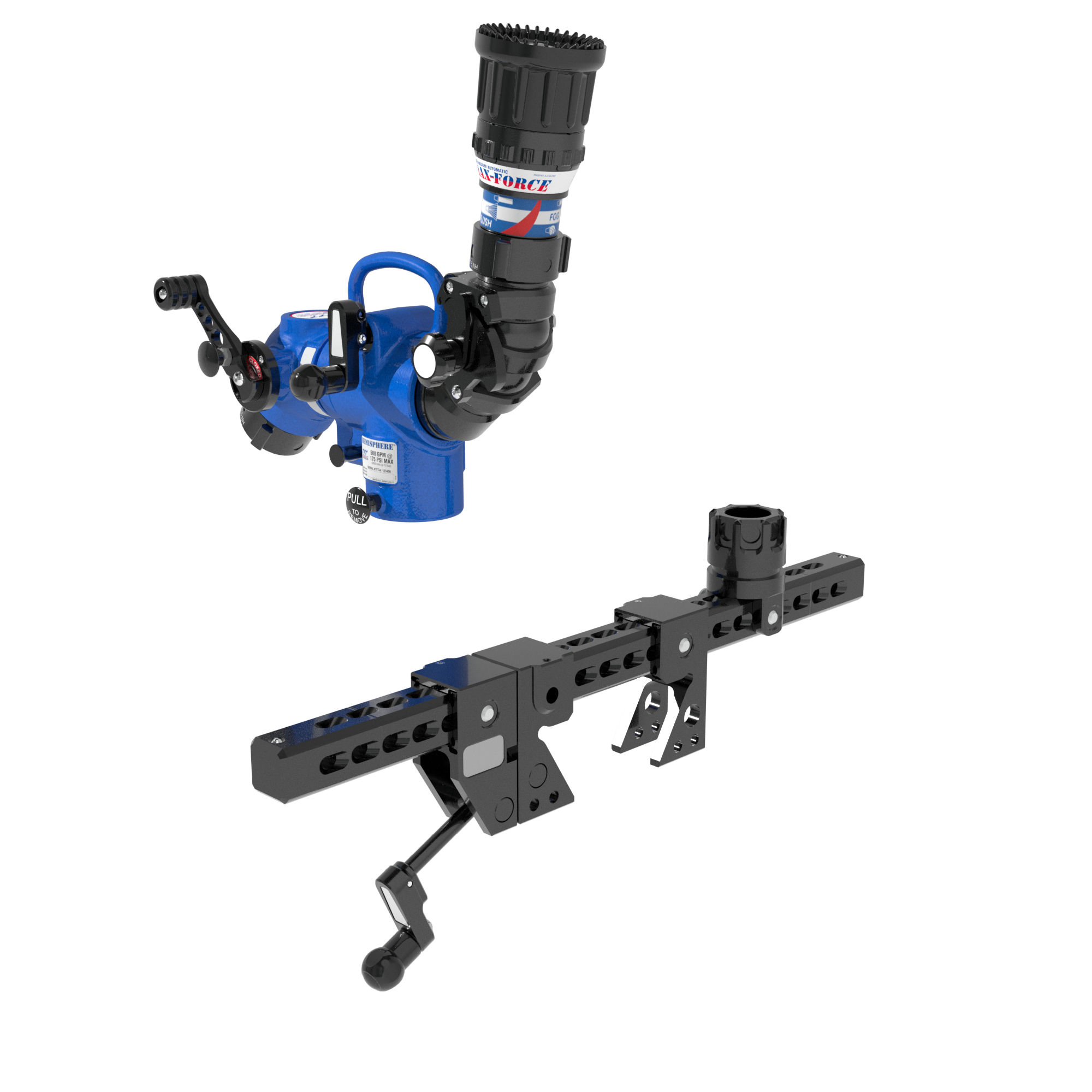

Hemisphere Mountable Monitor +Max-Force Automatic Nozzle Package – 2.5″ NHF Swivel Inlet, 2.5″ NHM Rigid Outlet, I-Beam Clamp
Comprehensive Mountable Monitor Packages for Precision Firefighting
The Hemisphere™ Mountable Monitor Packages deliver high-flow water performance with the included nozzle and mounting solution. With flow capabilities up to 500 GPM (2000 LPM), this package is designed to tackle challenging firefighting environments, offering 360-degree rotation and 80-degree pivoting for precise water stream control. The package’s quick-attach mounting system and included nozzle allow for rapid setup and streamlined deployment, making it ideal for confined, elevated, or hard-to-reach areas where flexibility and accuracy are crucial for industrial or municipal fire departments. Key Features: Flow Capacity : Delivers up to 500 GPM (2000 LPM), ideal for a range of firefighting applications 360° Aiming : Allows water to be directed precisely, enhancing flexibility in confined spaces Quick-Attach Mounting System : Securely mounts to various surfaces, with options like I-beam, hitch, and tank lip clamps for versatile use Lightweight Aluminum Construction : Easy to transport with a built-in carrying handle, ensuring quick setup and deployment Water Pressurized Safety Pins : Prevents accidental rotation/release during operation, adding safety and control Adjustable Stream Straightener : Built-in straightener ensures optimized stream reach and minimal turbulence Flow Control : Quarter-turn ball valve with a locking bail handle for precise flow management and to prevent unintentional discharge Wide Compatibility : Standard inlet and outlet sizes of 2.5” NH or BSP fittings, with options for Storz and other quick-connect attachments This Package Includes: HPM-A – I-Beam Clamp & 2” Hitch Mount HPM111A – Hemisphere Mountable Monitor – 2.5″ NHF Swivel Inlet, 2.5″ NHM Rigid Outlet MD12A – Max-Force Automatic Nozzle, 2.5″ NH Female, 100-500 GPM (380-1900 LPM) @ 55 or 100 PSI (4 or 7 Bar) All Prices in USD
Out of stock
The Hemisphere Mountable Monitor +Max-Force Automatic Nozzle Package from Task Force Tips is engineered for high-volume water delivery in challenging industrial and municipal environments. This robust system provides versatile water application and precise control for fixed or semi-fixed fire suppression operations.
- The included I-Beam Clamp mount ensures secure and stable installation on structural elements, facilitating reliable, consistent water projection.
- Benefit from comprehensive fireground coverage with the monitor’s expansive 360° horizontal and vertical range, allowing for versatile targeting.
- The 2.5″ NHF Swivel Inlet enables quick and secure hose connections, enhancing operational readiness and simplifying setup.
- An integrated Max-Force Automatic Nozzle delivers up to 500 GPM (2000 LPM), coupled with an integrated stream straightener for optimal water effectiveness and reach.
- Control water flow confidently via the manual ball valve, featuring pressurized pins and a locking valve handle for enhanced operational safety and stable stream deployment.
This Task Force Tips package is designed for demanding fire protection needs, offering reliable, powerful water delivery for industrial facilities, storage areas, and other critical infrastructure requiring substantial, directed suppression capabilities.
| Color | |
|---|---|
| Brand | |
| Weight | |
| Package | |
| Bundle |
Monitor Package |
| Monitor Type |
Mountable |
| Bundle Nozzle Type |
Automatic |
| Bundle Nozzle Brand |
Max-Force |
| Monitor Supply Size (Imp) |
2.5" |
| Monitor Supply Size (Met) |
65 mm |
| Monitor Supply Type |
NH Female |
| Monitor Supply Style |
Rocker |
| Monitor Supply Swivel |
Swivel |
| Monitor Horizontal Range |
360° |
| Monitor Vertical Range |
360° |
| Monitor Control |
Manual |
| Monitor Supply Inlets |
Single |
| Monitor Outlet Size (Imp) |
2.5" |
| Monitor Outlet Size (Met) |
65 mm |
| Monitor Outlet Type |
NH Male |
| Monitor Outlet Style |
Male Threads |
| Monitor Outlet Swivel |
Rigid |
| Max Flow Rate (GPM) |
500 GPM |
| Max Flow Rate (LPM) |
2000 LPM |
| Bundle Stream Straightener |
Integrated |
| Monitor Valve Type |
Ball Valve |
| Safety Features |
Pressurized Pins & Locking Valve Handle |
| Bundle Mount |
I-Beam Clamp |
