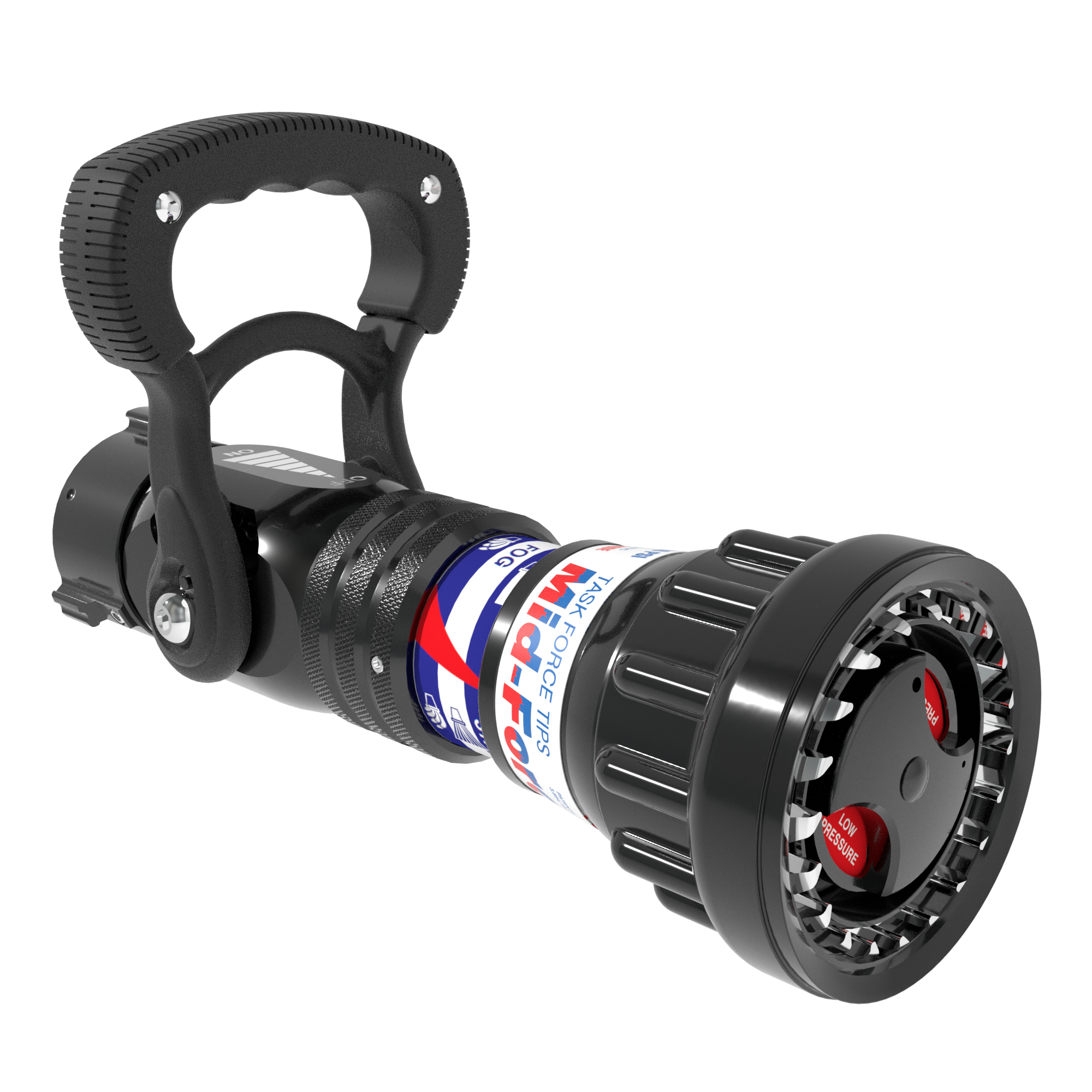

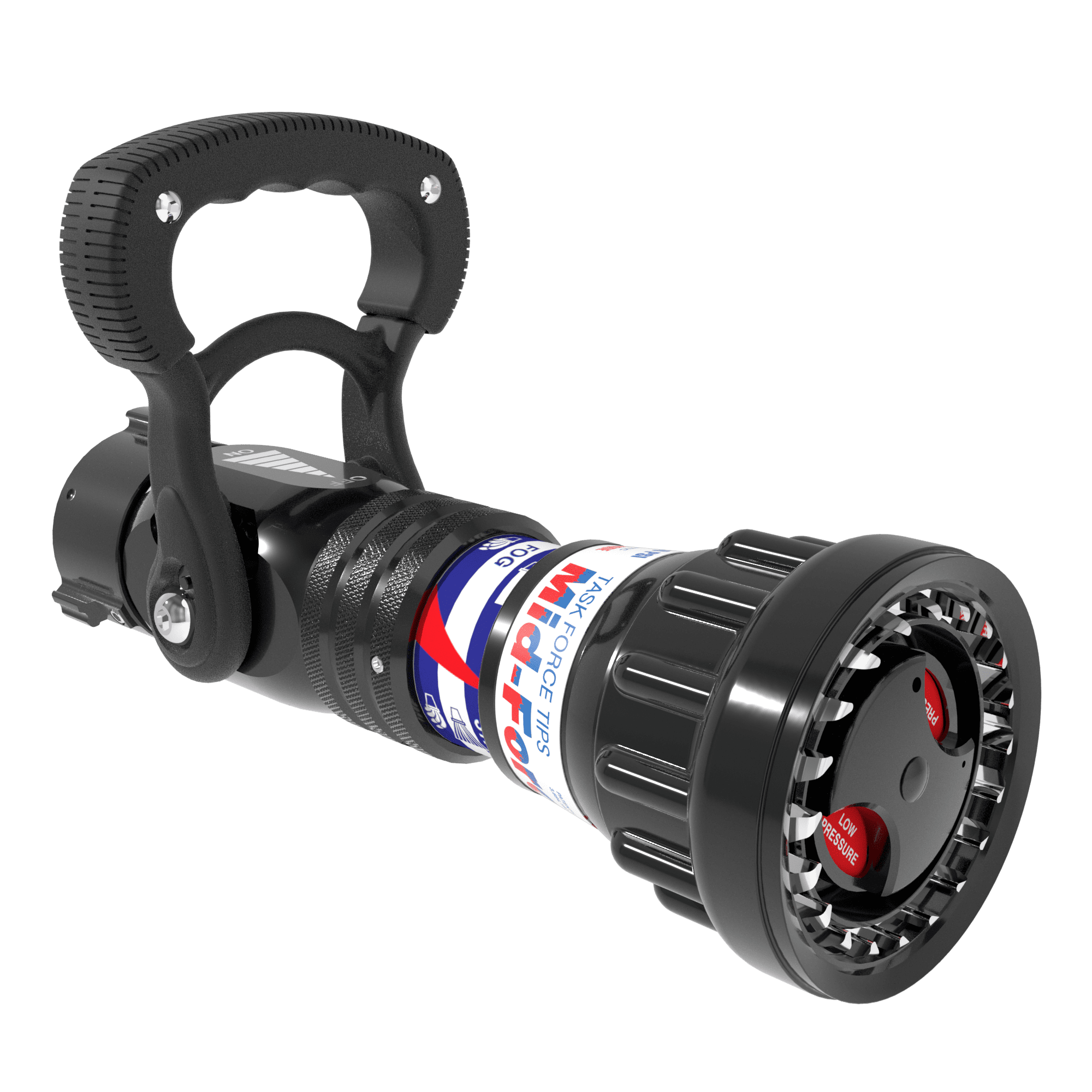

Mid-Force Automatic One-Piece Nozzle, Slide Valve – 70-200 GPM @ 55/100 PSI, 1.5″ NHF Rocker Swivel Inlet, Spinning Metal Teeth
Versatile Dual-Pressure Firefighting Nozzles
The Mid-Force™ Automatic Nozzle series provides firefighting crews with dual-pressure functionality, enabling a choice between standard and low-pressure modes. Designed for aggressive departments, this nozzle delivers a flow range of 70-200 GPM (265-760 LPM) and is compatible with various hose sizes and connections. With options for molded rubber or stainless-steel spinning teeth, these nozzles are ideal for creating straight streams to dense fog patterns for comprehensive coverage. Key Features: Dual-Pressure Modes: Choose between high (55 or 100 PSI, 3.8 or 7 Bar) and low (45 or 75 PSI, 3 or 5 Bar) pressure settings Flow Range: Delivers between 25-200 GPM (100-750 LPM) for adaptable water application Hose Compatibility: Fits 1.5” to 2” (38-52 mm) hoses, available with NH and BSP thread options Slide Valve Control: Patented slide valve provides smooth and precise flow adjustment Fog Pattern Control: Options for fixed rubber or spinning metal teeth to create the ideal fog patterns Coupling Options: Includes Rocker Lugs, Knurled, and Male Threaded options for secure and varied connections Flush Without Shutdown: Easily clears debris while maintaining water flow Grip Choices: Available with pistol grip or standard configurations for optimal handling All Prices in USD
Out of stock
The Task Force Tips Mid-Force Automatic One-Piece Nozzle with a slide valve delivers versatile flow and consistent pressure control for demanding fireground operations. Engineered as a robust, single unit, this automatic nozzle provides effective water application across a range of tactical needs.
- Flexible Flow and Pressure: The automatic design maintains effective pressure at either 55 or 100 PSI across a 70-200 GPM (260-750 LPM) flow range, adapting to various fire attack strategies.
- Precise Stream Control: An integrated slide valve enables smooth, positive flow adjustment and shutoff, giving operators immediate command over water delivery.
- Durable Fog Pattern: Equipped with spinning metal teeth, the nozzle consistently produces a wide, effective fog pattern while offering enhanced longevity in harsh environments.
- Secure, Tangle-Free Connection: The 1.5″ NHF rocker swivel inlet ensures quick and secure attachment to hose lines, minimizing twists during deployment.
- Manageable Weight: At 4.600 lbs, this one-piece design promotes agile handling and reduces fatigue during extended operations.
This Mid-Force nozzle is certified to NFPA standards, signifying its suitability for direct integration into fire suppression systems. Its robust, automatic design ensures reliable performance for municipal, industrial, and marine firefighting applications where consistent stream delivery is paramount.
| Color | |
|---|---|
| Nozzle Valve Style |
Slide Valve |
| Nozzle Teeth |
Spinning Metal |
| Brand | |
| Weight | |
| Target Nozzle Flow (Imp) |
70-200 GPM |
| Target Nozzle Flow (Met) |
260-750 LPM |
| Target Nozzle Pressure (Bar) |
3.8 or 7 Bar |
| Target Nozzle Pressure (KPA) |
380 or 700 KPA |
| Nozzle Type |
Automatic |
| Certifications | |
| Nozzle Style |
1-Piece ,One-Piece |
| Nozzle Grip |
None |
| Nozzle Hose Size (Imp) |
1.5" |
| Nozzle Hose Size (Met) |
38 mm |
| Nozzle Hose Connection Type |
NH Female |
| Nozzle Hose Coupling Style |
Rocker Lugs |
| Nozzle Hose Coupling Swivel |
Swivel |
| Target Nozzle Pressure (PSI) |
55 or 100 PSI |
