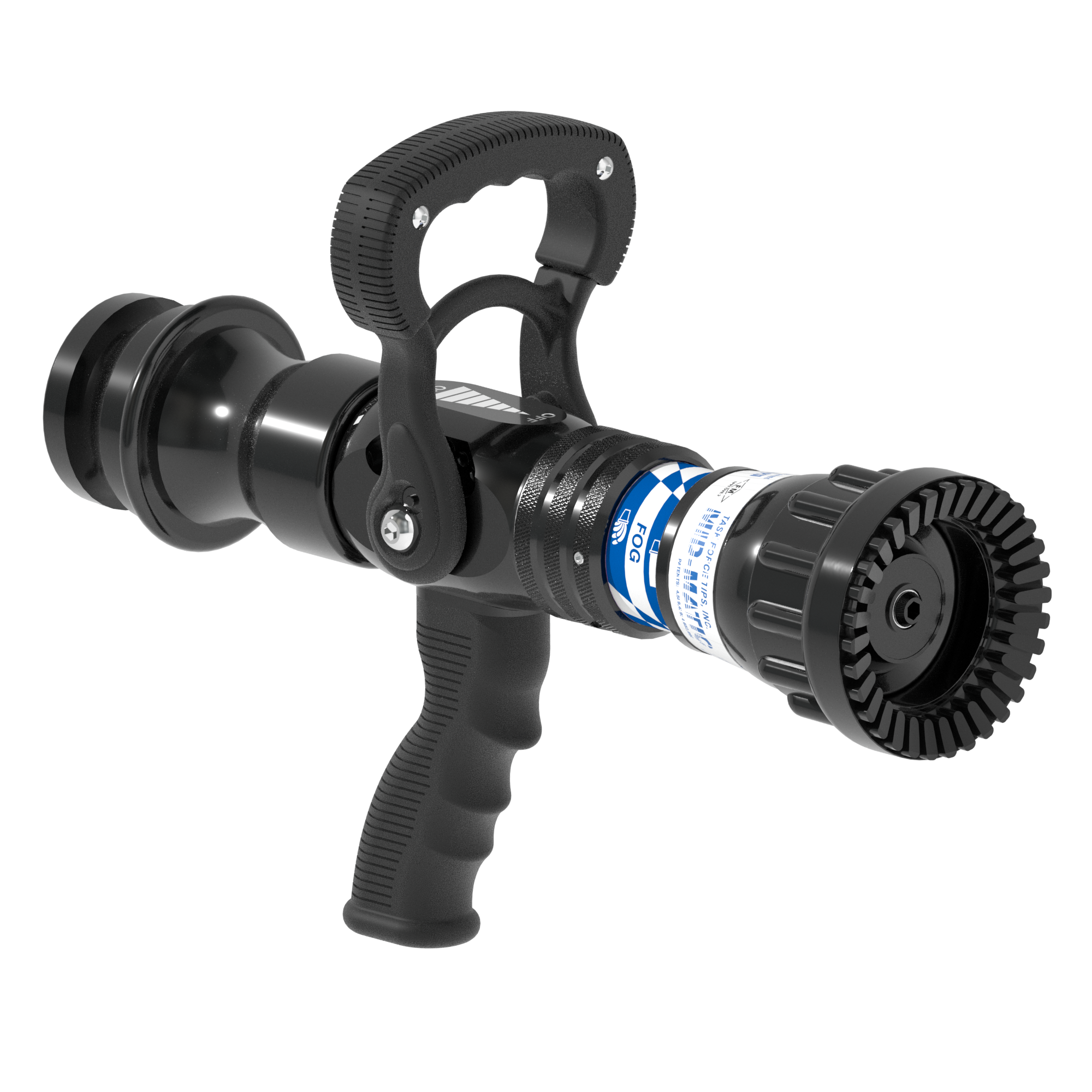

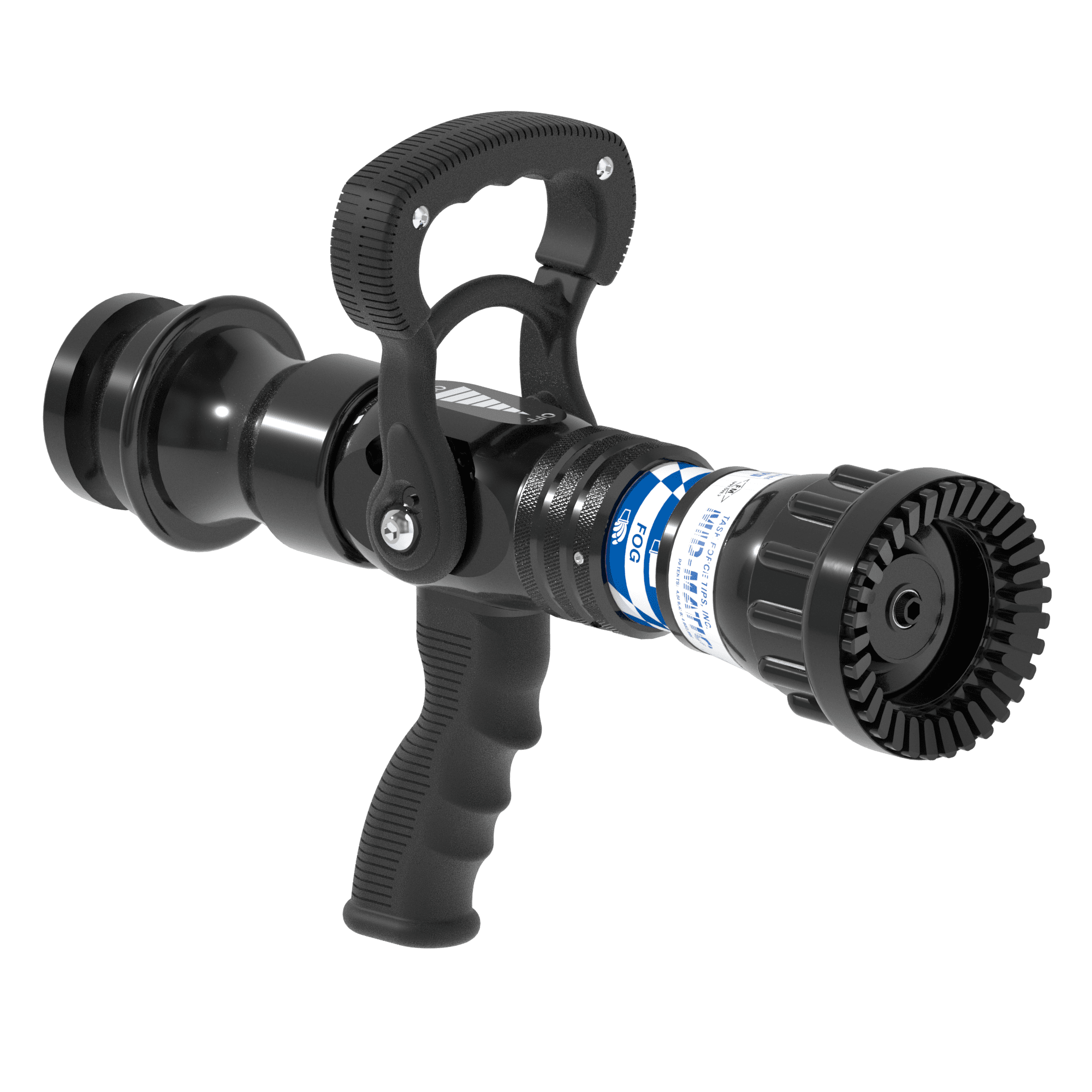

Mid-Matic Automatic One-Piece Nozzle With Pistol Grip, Slide Valve – 260-750 LPM @ 7 Bar, 65 mm BICM Swivel Inlet, Rubber Teeth
Precision Flow and Versatile Pressure Options
The Mid-Matic™ Automatic Nozzle is designed for firefighting teams requiring mid-range flow and flexible pressure options. Delivering between 25-200 GPM (100-750 LPM), the Mid-Matic™ provides efficient water application with easy customization. Built to meet NFPA standards, it features a patented slide valve, detent flow control, and is available with various grip and coupling options for enhanced handling on the fireground. Key Features: Adjustable Pressure Choices: Available in 75, 80, and 100 PSI (5, 6, and 7 Bar) for accurate flow settings Flow Range: Delivers between 25-200 GPM (100-750 LPM), ideal for mid-range applications Hose Compatibility: Fits 1.5” to 2” (38-52 mm) hoses, available in NH, BSP, and BIC connections Slide Valve Control: Patented slide valve offers turbulence-free operation for smooth flow adjustments Fog Pattern Teeth: Choose from molded rubber or metal spinning teeth for versatile fog patterns Flush Without Shutdown: Easily clear obstructions without stopping water flow Grip Options: Pistol grip configurations for enhanced control Color & Safety Indicators: Black finish with optional flashover nozzle for advanced firefighting techniques All Prices in USD
Out of stock
Description
The Task Force Tips Mid-Matic Automatic Nozzle is a robust, one-piece firefighting solution engineered for precise water application across a wide spectrum of fireground scenarios. Its automatic pressure control consistently delivers 7 Bar operating pressure, optimizing stream performance across various flow rates.
- Operational Versatility: The automatic design consistently maintains 7 Bar pressure across a wide 260-750 LPM flow range, allowing for rapid adaptation to diverse fire conditions and varying water availability without manual adjustment.
- Enhanced User Control: A smooth-operating slide valve provides precise stream management, complemented by an ergonomic pistol grip for secure, fatigue-reducing handling throughout demanding operations.
- Superior Durability: Featuring fixed rubber teeth and a rugged one-piece construction, this 6.000 lbs nozzle offers inherent robustness and reliable pattern integrity, certified by NFPA/FM for trusted performance.
- Rapid, Flexible Deployment: The 65 mm BICM swivel inlet with a quick-connect coupling facilitates fast, kink-free hose attachment and improved maneuverability, crucial for dynamic fireground environments.
This Mid-Matic nozzle’s design prioritizes both performance and operator efficiency. It is an ideal choice for municipal firefighting, industrial brigades, and maritime applications demanding consistent, reliable water delivery and robust construction in critical situations.
Additional information
| Color | |
|---|---|
| Nozzle Valve Style |
Slide Valve |
| Nozzle Teeth |
Fixed Rubber |
| Brand | |
| Weight | |
| Target Nozzle Flow (Imp) |
70-200 GPM |
| Target Nozzle Flow (Met) |
260-750 LPM |
| Target Nozzle Pressure (Bar) |
7 Bar |
| Target Nozzle Pressure (KPA) |
700 KPA |
| Nozzle Type |
Automatic |
| Certifications | |
| Nozzle Style |
1-Piece ,One-Piece |
| Nozzle Grip |
Pistol |
| Nozzle Hose Size (Imp) |
2.5" |
| Nozzle Hose Size (Met) |
65 mm |
| Nozzle Hose Connection Type |
BIC Male |
| Nozzle Hose Coupling Style |
Quick-Connect |
| Nozzle Hose Coupling Swivel |
Swivel |
| Target Nozzle Pressure (PSI) |
100 PSI |
Document Attachments
Certifications & Approvals
- Mid-Matic FM Approval
- QuadraFog FM Approval
- ThunderFog FM Approval
- Mid-Matic 100 psi and 75 psi NFPA 1960
