Handline Automatic One-Piece Nozzle With Pistol Grip, Slide Valve – 360-1150 LPM @ 7 Bar, 65 mm BICM Rocker Swivel Inlet, Rubber Teeth

Powerful, Adaptive Firefighting Solution

The Handline™ Automatic Nozzle series provides flexibility with three selectable pressure options, enabling firefighters to adapt quickly to changing conditions. With flow rates from 50 to 350 GPM (190-1350 LPM) and various connection and grip options, these nozzles enhance control, reach, and suppression capability. Each Handline™ nozzle features a patented slide valve for smooth operation and customizable handling options, making it ideal for structural and wildland firefighting. Key Features: Adjustable Pressure Settings: Available in a range of pressure settings for versatile performance Wide Flow Range: 50 to 350 GPM (190-1350 LPM) depending on the model, suitable for diverse firefighting scenarios Hose Compatibility: Fits 1.5” to 2.5” (38-65 mm) hoses, adaptable to NH, BIC, and BSP connections Slide Valve Design: Patented turbulence-free slide valve provides precise flow control and easy handling Impact-Resistant Bumper: Rubber bumper with fog teeth enhances stream pattern and provides protection Flush Without Shutdown: Quickly flush debris without interrupting operation Grip Options: Choose from pistol grip tip only configurations for improved control Custom Coupling Styles: Available with Rocker Lugs, Knurled, and Quick-Connect couplings for secure attachment All Prices in USD

Out of stock

SKU: H-2VPGI-BICJ Categories: , Brand
Description

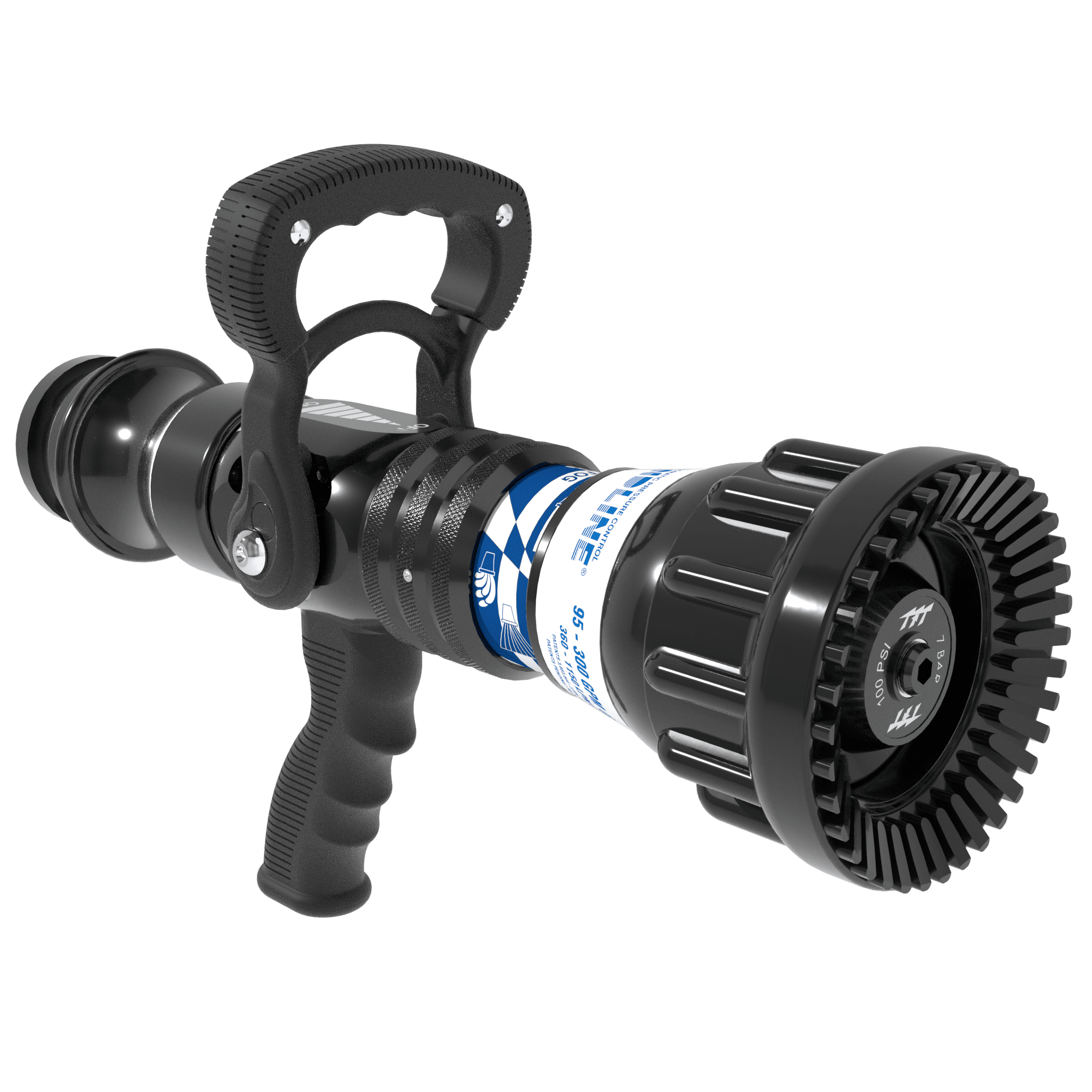

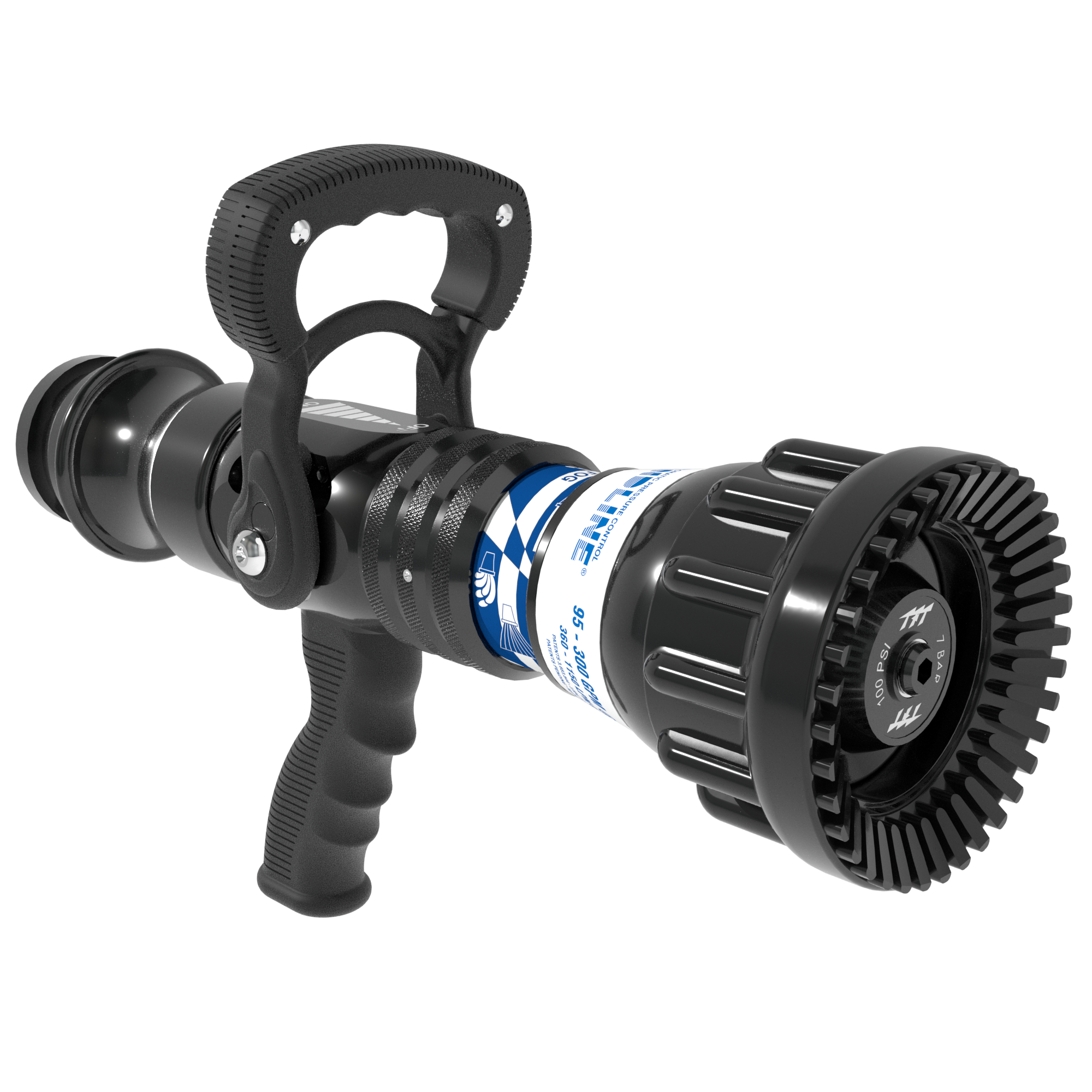

The Task Force Tips Handline™ Automatic One-Piece Nozzle with Pistol Grip and Slide Valve is engineered for adaptable fire suppression, providing controlled water delivery across diverse scenarios.

  • Its automatic operation maintains a consistent stream quality at 7 Bar across flows from 360-1150 LPM, simplifying adjustments during dynamic operations.
  • The integrated slide valve offers precise, smooth flow control, enabling firefighters to manage water output effectively.
  • Designed with a pistol grip, this 7.100 lbs nozzle provides improved handling and operational stability.
  • A 65 mm BICM Rocker Swivel Inlet ensures quick, secure hose connection while eliminating twists for enhanced maneuverability.
  • Fixed rubber teeth create a durable, effective fog pattern for protection and wide area coverage.

This Handline™ nozzle’s robust, one-piece construction and versatile flow range make it suitable for a broad spectrum of municipal and industrial firefighting applications, ensuring reliable performance when it matters most.

Additional information
Color

Nozzle Valve Style

Slide Valve

Nozzle Teeth

Fixed Rubber

Brand

Weight

Target Nozzle Flow (Imp)

95-300 GPM

Target Nozzle Flow (Met)

360-1150 LPM

Target Nozzle Pressure (Bar)

7 Bar

Target Nozzle Pressure (KPA)

700 KPA

Nozzle Type

Automatic

Nozzle Style

1-Piece

,

One-Piece

Nozzle Grip

Pistol

Nozzle Hose Size (Imp)

2.5"

Nozzle Hose Size (Met)

65 mm

Nozzle Hose Connection Type

BIC Male

Nozzle Hose Coupling Style

Quick-Connect

Nozzle Hose Coupling Swivel

Swivel

Target Nozzle Pressure (PSI)

100 PSI

Document Attachments

Instructions For Installation, Safe Operation and Maintenance
