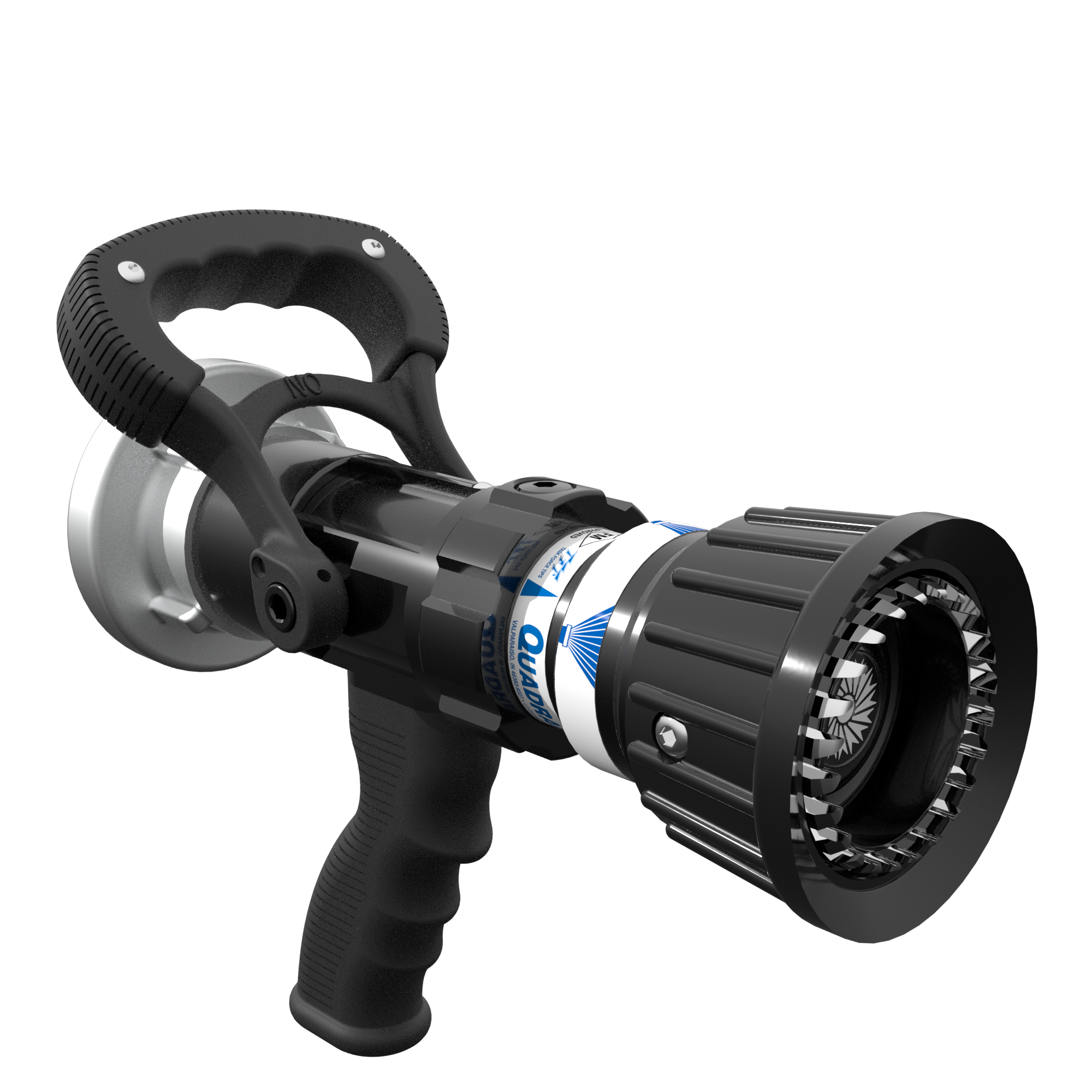

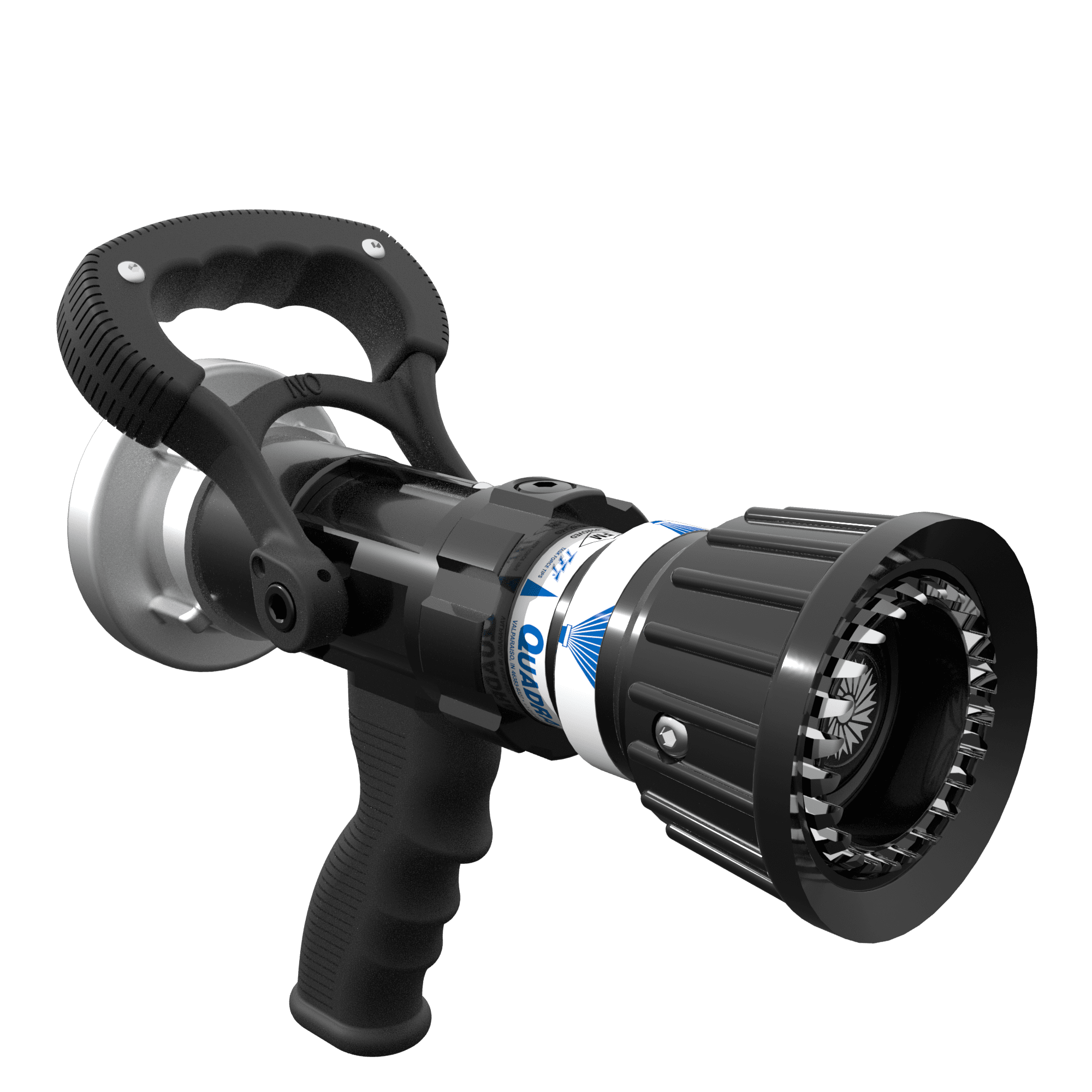

QuadraFog Selectable One-Piece Nozzle With Pistol Grip, Ball Valve – 110/230/360/470 LPM @ 7 Bar, 52 mm Storz Rigid Inlet, Spinning Metal Teeth
$945.10
Versatile Selectable Flow Combination Nozzle
The QuadraFog® Selectable Nozzle series is built for versatility, offering multiple flow and pressure options to suit various firefighting needs. Available in high and low-pressure models for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, QuadraFog® allows firefighters to switch between a straight stream and dense fog pattern with ease. Compatible with foam attachments for enhanced firefighting power, QuadraFog® provides precision and flexibility for all fireground operations. Key Features: Selectable Flow Options: Choose from multiple flow rate options on each model Pressure Options: Available in 100 PSI (7 bar), 80 PSI (6 Bar), or 75 PSI (5 bar) for your target pressure applications Compatibility: Suitable for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, adaptable for various firefighting setups Fog Pattern Adjustment: Adjustable from straight stream to dense fog, providing tactical control over water application Teeth Options: Choice of fixed metal or spinning metal teeth for effective fog creation Foam Compatibility: Designed to work with low-expansion and multi-expansion foam attachments Available Configurations: Tip only models with integrated valves and one-piece models with ball valves to suit diverse operational needs All Prices in USD
The QuadraFog Selectable One-Piece Nozzle delivers versatile water application and precise control for demanding firefighting operations. Engineered for adaptability, this nozzle allows firefighters to efficiently manage flow rates based on incident needs.
- Flow Adaptability: Seamlessly choose between 110, 230, 360, or 470 LPM at 7 Bar, enabling rapid adjustment to diverse fire conditions and effective water resource management.
- Positive Stream Control: The integrated Ball Valve provides immediate shut-off and precise flow regulation for confident handling on the fireground.
- Ergonomic Handling: A pistol grip design ensures secure and comfortable operation, enhancing maneuverability and reducing operator fatigue during extended use.
- Robust Fog Pattern: Spinning metal teeth consistently create an effective fog for heat absorption and reliable personnel protection.
- Durable Integration: Its one-piece construction, coupled with a 52 mm Storz rigid inlet, offers reliable performance and a secure, quick hose connection.
This QuadraFog nozzle by Task Force Tips is designed for front-line use where responsive flow management and robust construction are critical for effective fire suppression and firefighter safety. Its thoughtful design supports dynamic operational demands.
| Color | |
|---|---|
| Nozzle Valve Style |
Ball Valve |
| Nozzle Teeth |
Spinning Metal |
| Brand | |
| Weight | |
| Target Nozzle Flow (Imp) |
30/60/95/125 GPM |
| Target Nozzle Flow (Met) |
110/230/360/470 LPM |
| Target Nozzle Pressure (Bar) |
7 Bar |
| Target Nozzle Pressure (KPA) |
700 KPA |
| Nozzle Type |
Selectable |
| Nozzle Style |
1-Piece ,One-Piece |
| Nozzle Grip |
Pistol |
| Nozzle Hose Size (Imp) |
2" |
| Nozzle Hose Size (Met) |
52 mm |
| Nozzle Hose Connection Type |
STORZ |
| Nozzle Hose Coupling Style |
Quick-Connect |
| Nozzle Hose Coupling Swivel |
Rigid |
| Target Nozzle Pressure (PSI) |
100 PSI |
