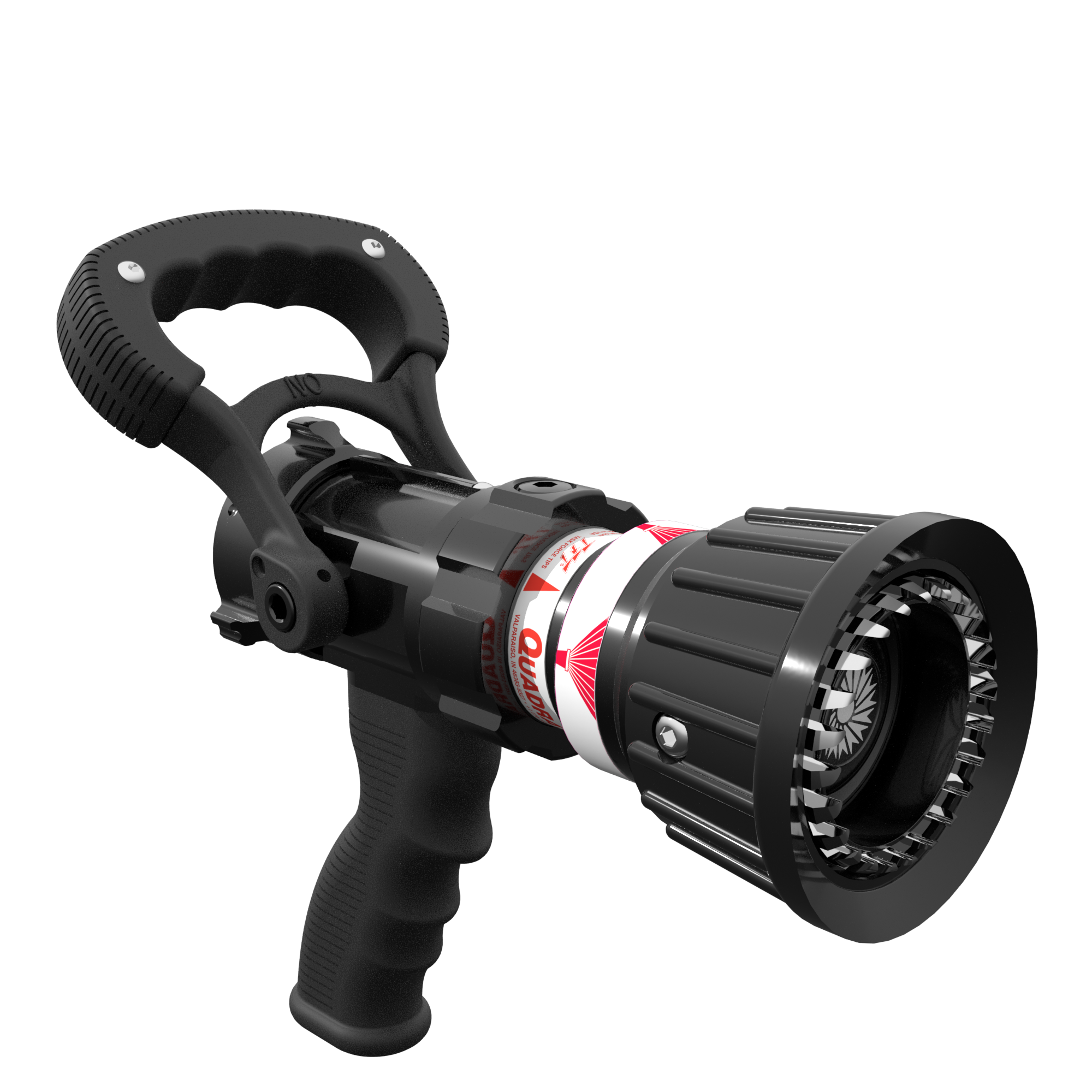

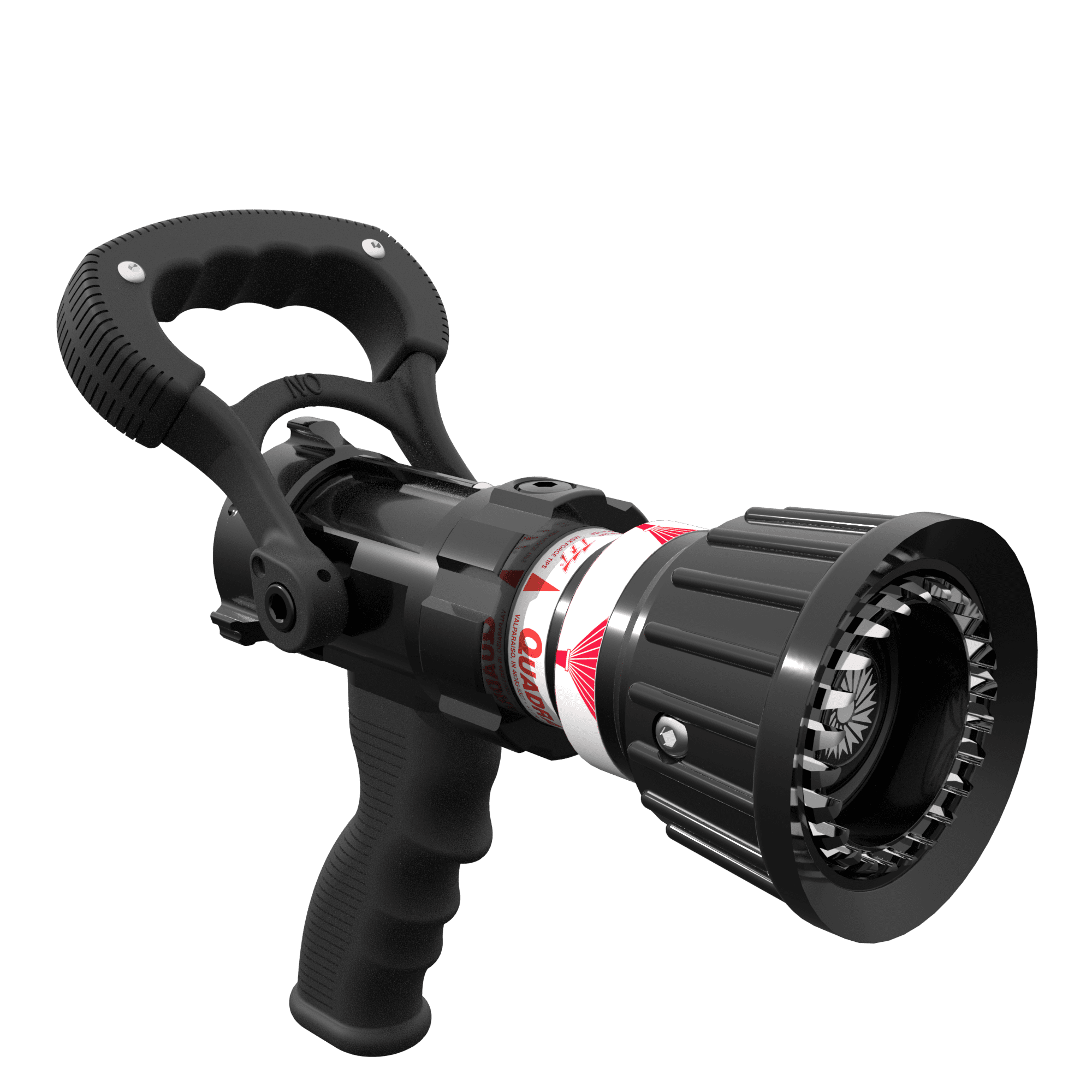

QuadraFog Selectable One-Piece Nozzle With Pistol Grip, Ball Valve – 30/60/95/125 GPM @ 75 PSI, 1.5″ NHF Rocker Swivel Inlet, Spinning Metal Teeth
$945.10
Versatile Selectable Flow Combination Nozzle
The QuadraFog® Selectable Nozzle series is built for versatility, offering multiple flow and pressure options to suit various firefighting needs. Available in high and low-pressure models for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, QuadraFog® allows firefighters to switch between a straight stream and dense fog pattern with ease. Compatible with foam attachments for enhanced firefighting power, QuadraFog® provides precision and flexibility for all fireground operations. Key Features: Selectable Flow Options: Choose from multiple flow rate options on each model Pressure Options: Available in 100 PSI (7 bar), 80 PSI (6 Bar), or 75 PSI (5 bar) for your target pressure applications Compatibility: Suitable for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, adaptable for various firefighting setups Fog Pattern Adjustment: Adjustable from straight stream to dense fog, providing tactical control over water application Teeth Options: Choice of fixed metal or spinning metal teeth for effective fog creation Foam Compatibility: Designed to work with low-expansion and multi-expansion foam attachments Available Configurations: Tip only models with integrated valves and one-piece models with ball valves to suit diverse operational needs All Prices in USD
The Task Force Tips QuadraFog Selectable One-Piece Nozzle provides firefighters with essential flow control and robust performance for diverse fireground demands. Engineered as a single, integrated unit, this nozzle is designed for reliable water application in demanding operational scenarios, ensuring quick and effective response.
- Adaptability is central with QuadraFog’s four selectable flow rates: 30, 60, 95, and 125 GPM at a consistent 75 PSI, allowing operators to match water delivery precisely to the incident’s requirements.
- The integrated pistol grip enhances handling and reduces operator fatigue, while the ball valve offers immediate, positive control over the water stream.
- Spinning metal teeth contribute to a wide, effective fog pattern, simultaneously bolstering the nozzle’s durability in harsh conditions.
- A 1.5″ NHF rocker swivel inlet facilitates rapid, secure hose attachment, minimizing setup time and preventing hose twists during critical operations.
- Weighing just 3.600 lbs, this nozzle balances sturdy construction with ease of maneuverability.
- NFPA and FM certifications underscore the QuadraFog’s adherence to stringent industry standards for performance and safety.
From structural firefighting to industrial protection, the QuadraFog’s thoughtfully designed features, including its one-piece construction and reliable flow settings, support efficient water application and enhance operational safety on the fireground.
| Color | |
|---|---|
| Nozzle Valve Style |
Ball Valve |
| Nozzle Teeth |
Spinning Metal |
| Brand | |
| Weight | |
| Target Nozzle Flow (Imp) |
30/60/95/125 GPM |
| Target Nozzle Flow (Met) |
110/230/360/470 LPM |
| Target Nozzle Pressure (Bar) |
5 Bar |
| Target Nozzle Pressure (KPA) |
500 KPA |
| Nozzle Type |
Selectable |
| Certifications | |
| Nozzle Style |
1-Piece ,One-Piece |
| Nozzle Grip |
Pistol |
| Nozzle Hose Size (Imp) |
1.5" |
| Nozzle Hose Size (Met) |
38 mm |
| Nozzle Hose Connection Type |
NH Female |
| Nozzle Hose Coupling Style |
Rocker Lugs |
| Nozzle Hose Coupling Swivel |
Swivel |
| Target Nozzle Pressure (PSI) |
75 PSI |
