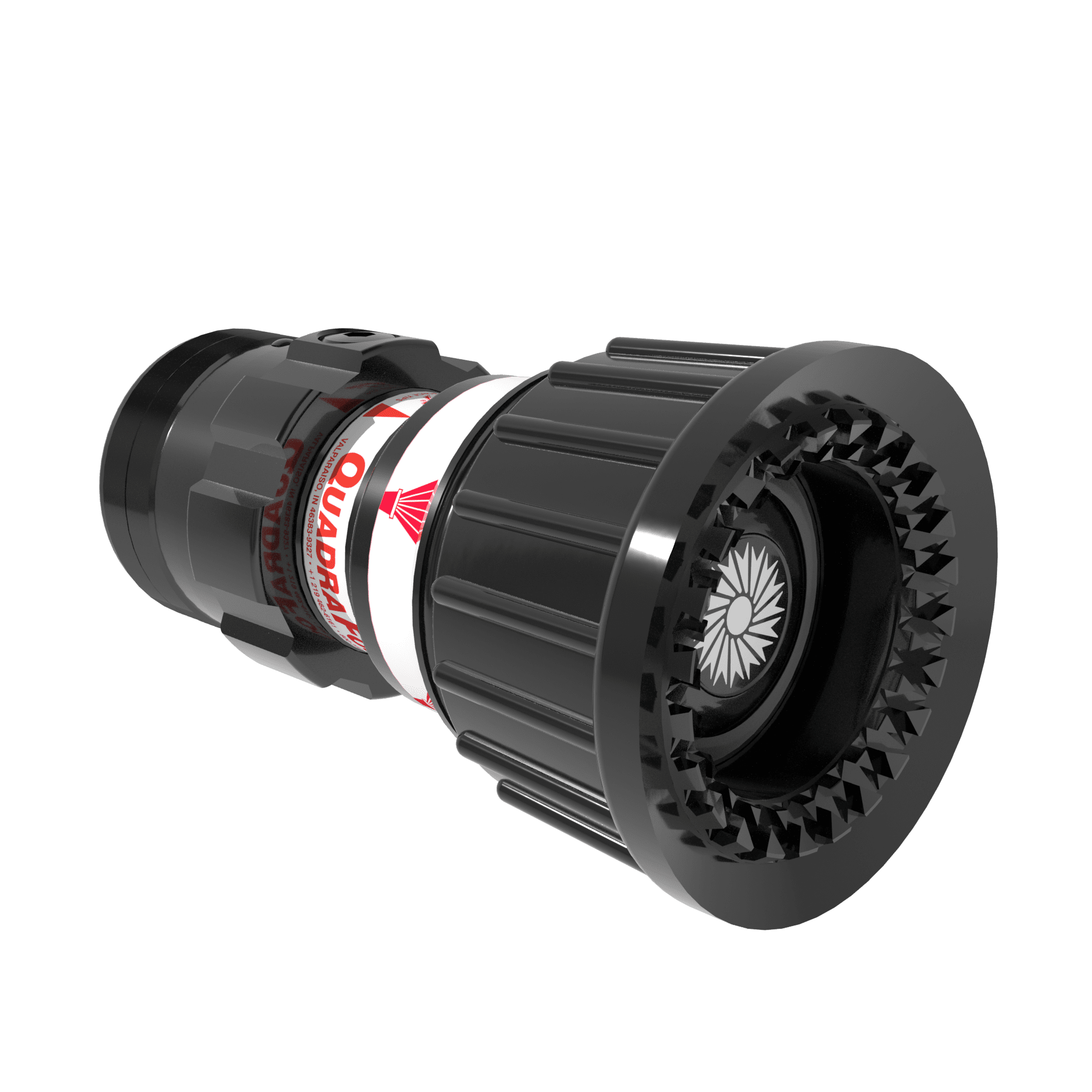

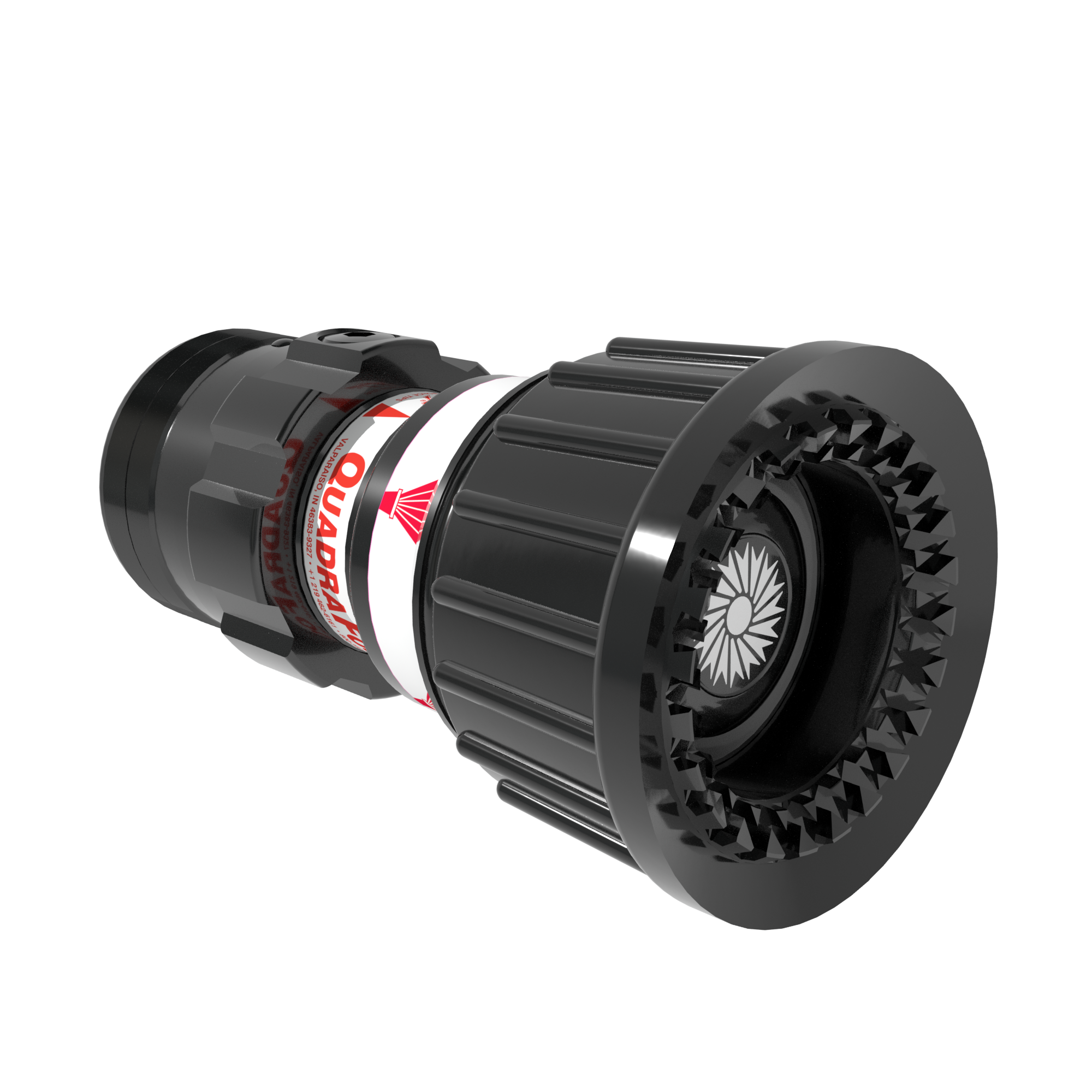

QuadraFog Selectable Nozzle Tip, Integrated Valve – 30/60/95/125 GPM @ 75 PSI, 1.5″ NHF Rigid Inlet, Metal Teeth
Versatile Selectable Flow Combination Nozzle
The QuadraFog® Selectable Nozzle series is built for versatility, offering multiple flow and pressure options to suit various firefighting needs. Available in high and low-pressure models for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, QuadraFog® allows firefighters to switch between a straight stream and dense fog pattern with ease. Compatible with foam attachments for enhanced firefighting power, QuadraFog® provides precision and flexibility for all fireground operations. Key Features: Selectable Flow Options: Choose from multiple flow rate options on each model Pressure Options: Available in 100 PSI (7 bar), 80 PSI (6 Bar), or 75 PSI (5 bar) for your target pressure applications Compatibility: Suitable for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, adaptable for various firefighting setups Fog Pattern Adjustment: Adjustable from straight stream to dense fog, providing tactical control over water application Teeth Options: Choice of fixed metal or spinning metal teeth for effective fog creation Foam Compatibility: Designed to work with low-expansion and multi-expansion foam attachments Available Configurations: Tip only models with integrated valves and one-piece models with ball valves to suit diverse operational needs All Prices in USD
Out of stock
The Task Force Tips QuadraFog Selectable Nozzle Tip, Integrated Valve is engineered for adaptable water delivery, providing firefighters with critical flow control for diverse operational demands. This robust nozzle system combines a selectable flow tip with an integrated valve, allowing for immediate adjustments to water volume directly at the point of attack.
- Selectable Flow Rates: Offering 30, 60, 95, or 125 GPM at 75 PSI, this nozzle provides the flexibility to match water application to specific fire conditions or available water supply.
- Integrated Valve: The built-in valve streamlines operation, enabling rapid on/off control and precise flow management without additional equipment.
- Durable Fog Pattern: Fixed metal teeth ensure consistent and reliable fog pattern formation, critical for various tactical approaches including personal protection and ventilation.
- Lightweight Design: Weighing only 2.300 lbs, the nozzle supports extended use and enhanced maneuverability for dynamic fireground scenarios.
- Certified Performance: NFPA and FM certifications affirm its adherence to industry performance and safety standards.
- Secure Connection: Featuring a 1.5″ NHF rigid inlet with a knurled coupling, it provides a stable and leak-resistant attachment to hose lines.
Designed for professional municipal and industrial firefighting, the QuadraFog nozzle’s precise flow selection and integrated control are vital for effectively managing water resources and adapting rapidly to evolving incident requirements on the fireground.
| Color | |
|---|---|
| Nozzle Valve Style |
Integrated Valve |
| Nozzle Teeth |
Fixed Metal |
| Brand | |
| Weight | |
| Target Nozzle Flow (Imp) |
30/60/95/125 GPM |
| Target Nozzle Flow (Met) |
110/230/360/470 LPM |
| Target Nozzle Pressure (Bar) |
5 Bar |
| Target Nozzle Pressure (KPA) |
500 KPA |
| Nozzle Type |
Selectable |
| Certifications | |
| Nozzle Style |
2-Piece ,Tip Only |
| Nozzle Grip |
None |
| Nozzle Hose Size (Imp) |
1.5" |
| Nozzle Hose Size (Met) |
38 mm |
| Nozzle Hose Connection Type |
NH Female |
| Nozzle Hose Coupling Style |
Knurled |
| Nozzle Hose Coupling Swivel |
Rigid |
| Target Nozzle Pressure (PSI) |
75 PSI |
