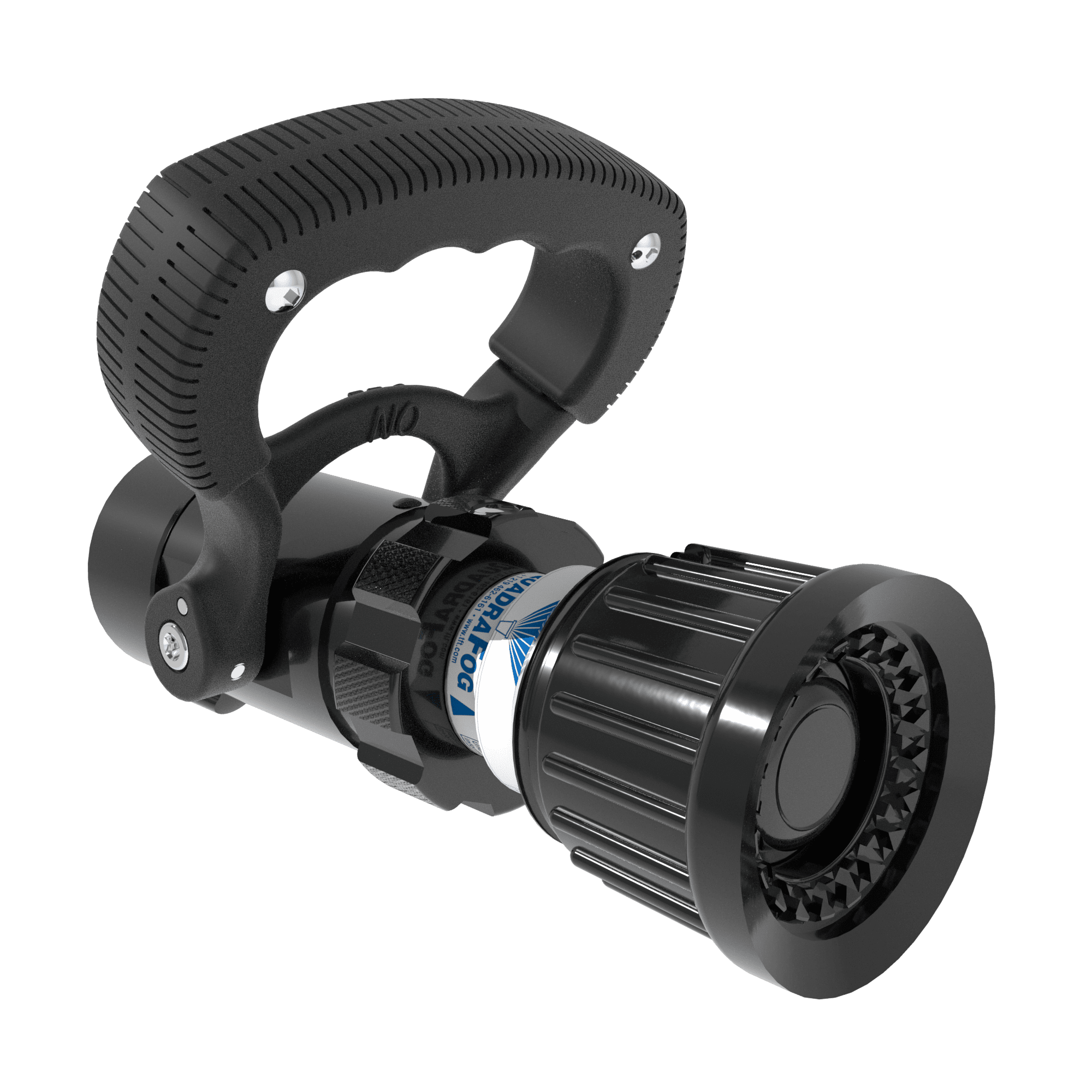

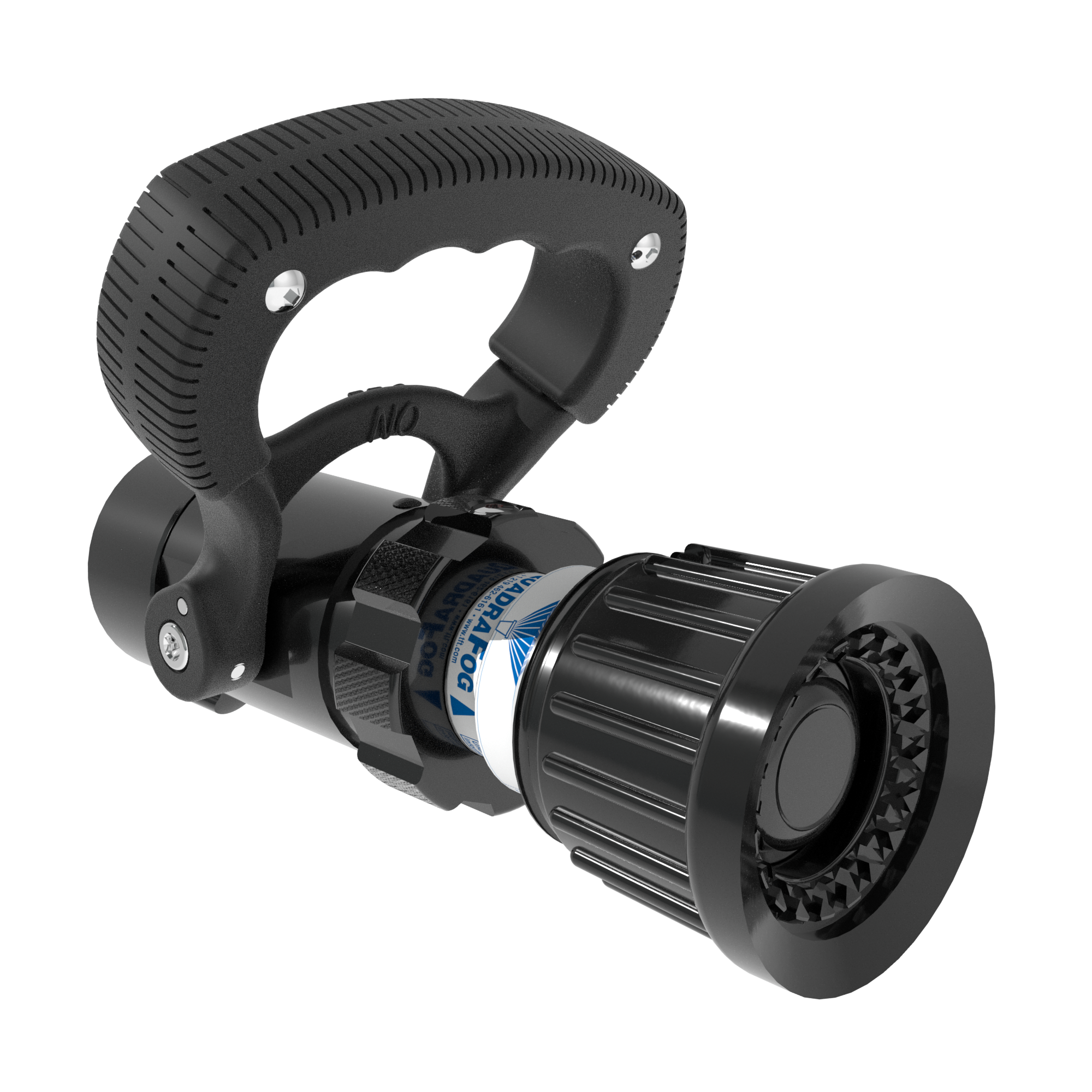

QuadraFog Selectable One-Piece Nozzle, Ball Valve – 5/10/25/40/60 GPM @ 100 PSI, 1″ NHF Rocker Swivel Inlet, Metal Teeth
$838.50
Versatile Selectable Flow Combination Nozzle
The QuadraFog® Selectable Nozzle series is built for versatility, offering multiple flow and pressure options to suit various firefighting needs. Available in high and low-pressure models for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, QuadraFog® allows firefighters to switch between a straight stream and dense fog pattern with ease. Compatible with foam attachments for enhanced firefighting power, QuadraFog® provides precision and flexibility for all fireground operations. Key Features: Selectable Flow Options: Choose from multiple flow rate options on each model Pressure Options: Available in 100 PSI (7 bar), 80 PSI (6 Bar), or 75 PSI (5 bar) for your target pressure applications Compatibility: Suitable for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, adaptable for various firefighting setups Fog Pattern Adjustment: Adjustable from straight stream to dense fog, providing tactical control over water application Teeth Options: Choice of fixed metal or spinning metal teeth for effective fog creation Foam Compatibility: Designed to work with low-expansion and multi-expansion foam attachments Available Configurations: Tip only models with integrated valves and one-piece models with ball valves to suit diverse operational needs All Prices in USD
The Task Force Tips QuadraFog Selectable One-Piece Nozzle provides adaptable water application for a broad spectrum of firefighting demands. This robust, integrated nozzle is engineered for reliable performance and precise control on the fireground.
- The selectable flow rates, ranging from 5 to 60 GPM at 100 PSI, offer operational flexibility to match diverse tactical requirements, from initial attack to overhaul.
- Equipped with a responsive Ball Valve, firefighters gain immediate and positive control over water flow, allowing for rapid adjustments and secure shutoff.
- Fixed Metal Teeth are incorporated for consistent fog pattern development and enduring performance, enhancing durability under rigorous use.
- Weighing just 2.200 lbs, the 1-Piece nozzle style design promotes ease of handling and maneuverability, reducing fatigue during extended operations.
- A 1″ NHF Rocker Swivel Inlet ensures quick, secure connection to hose lines while minimizing hose twist and kinks during deployment.
Designed for demanding municipal and industrial firefighting environments, the QuadraFog Selectable One-Piece Nozzle’s precise flow selection and robust construction make it an essential tool for effective water delivery and incident control.
| Color | |
|---|---|
| Nozzle Valve Style |
Ball Valve |
| Nozzle Teeth |
Fixed Metal |
| Brand | |
| Weight | |
| Target Nozzle Flow (Imp) |
5/10/25/40/60 GPM |
| Target Nozzle Flow (Met) |
20/40/100/150/235 LPM |
| Target Nozzle Pressure (Bar) |
7 Bar |
| Target Nozzle Pressure (KPA) |
700 KPA |
| Nozzle Type |
Selectable |
| Nozzle Style |
1-Piece ,One-Piece |
| Nozzle Grip |
None |
| Nozzle Hose Size (Imp) |
1" |
| Nozzle Hose Size (Met) |
25 mm |
| Nozzle Hose Connection Type |
NH Female |
| Nozzle Hose Coupling Style |
Rocker Lugs |
| Nozzle Hose Coupling Swivel |
Swivel |
| Target Nozzle Pressure (PSI) |
100 PSI |
