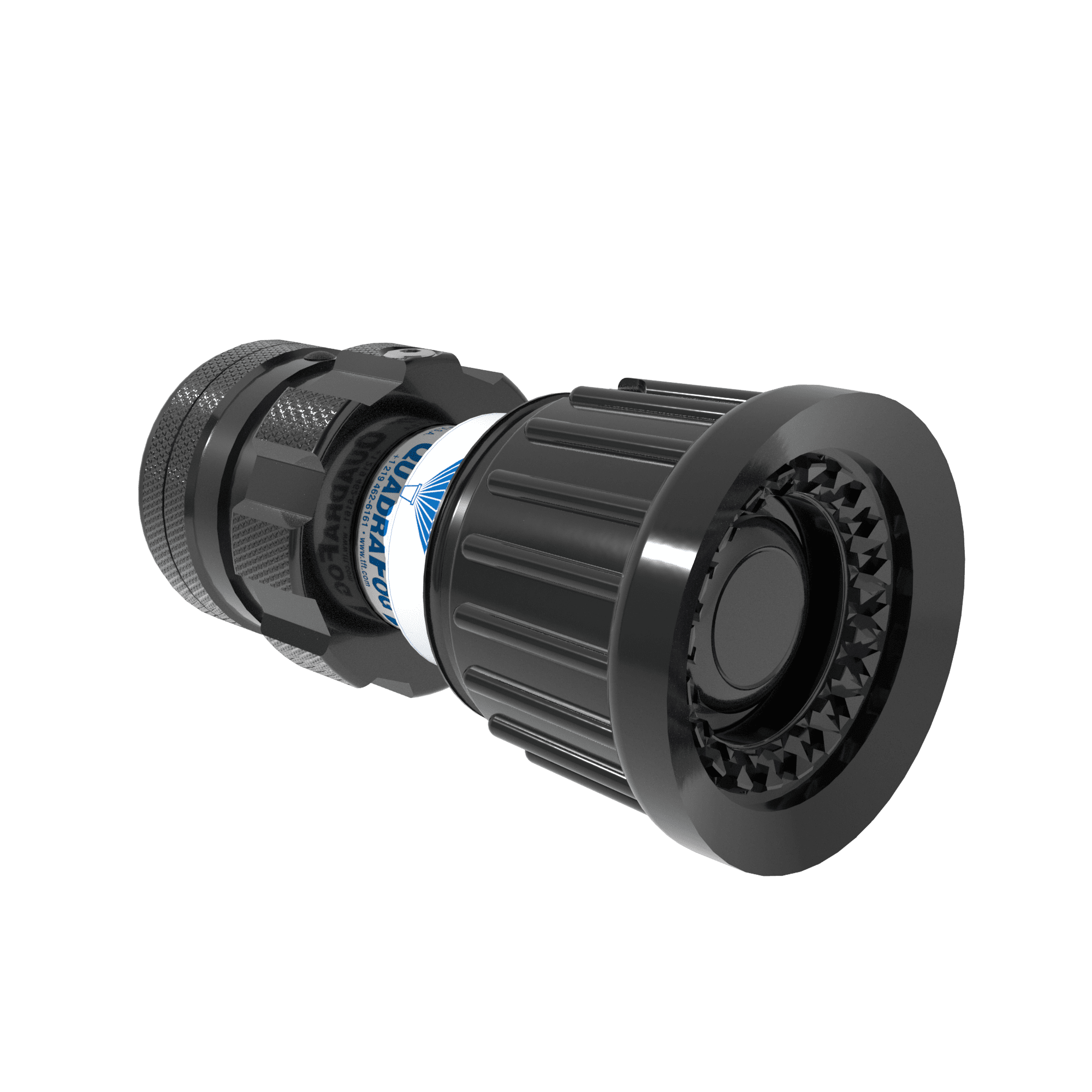

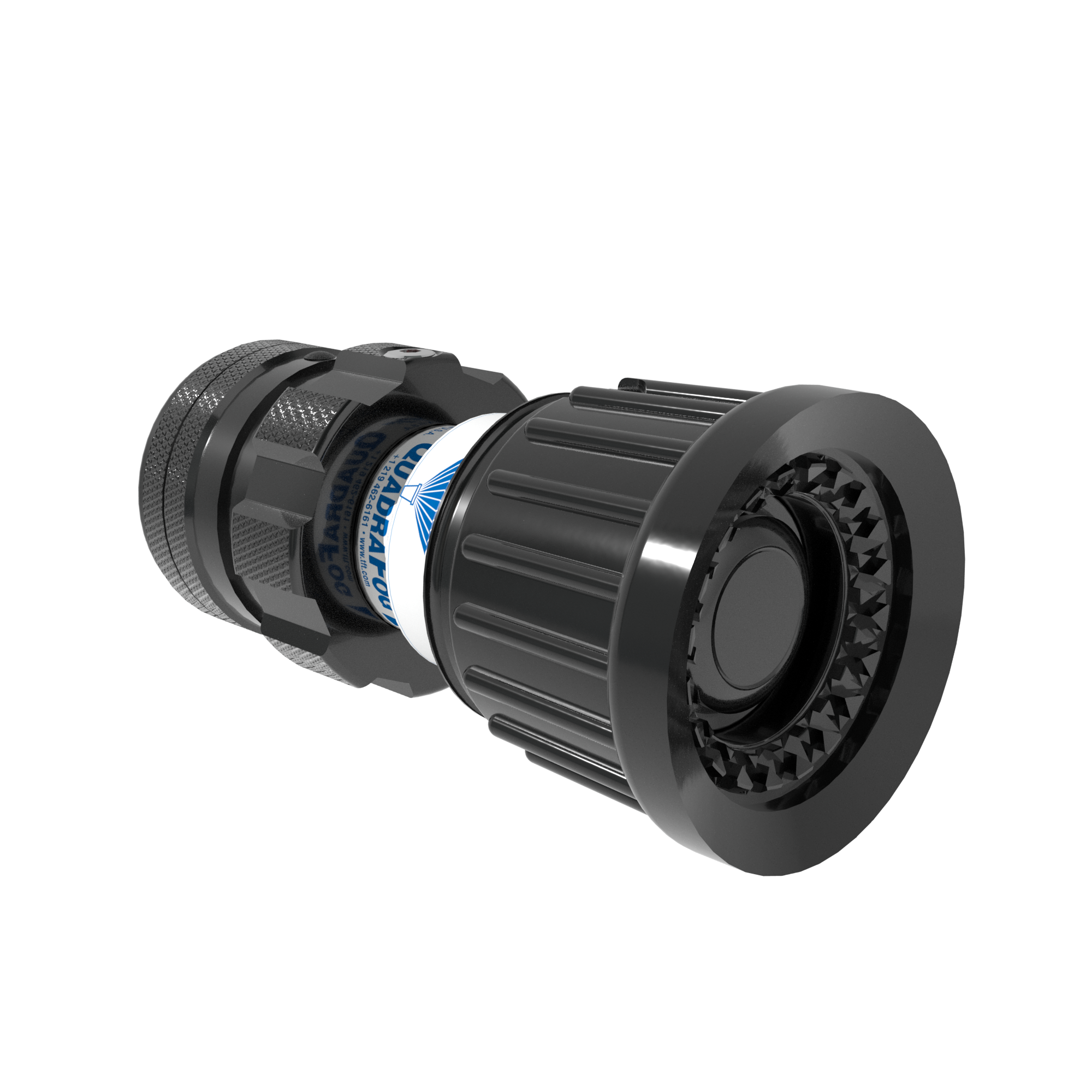

QuadraFog Selectable Nozzle Tip, Integrated Valve – 5/10/25/40/60 GPM @ 100 PSI, 1″ NHF Rigid Inlet, Metal Teeth
$503.75
Versatile Selectable Flow Combination Nozzle
The QuadraFog® Selectable Nozzle series is built for versatility, offering multiple flow and pressure options to suit various firefighting needs. Available in high and low-pressure models for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, QuadraFog® allows firefighters to switch between a straight stream and dense fog pattern with ease. Compatible with foam attachments for enhanced firefighting power, QuadraFog® provides precision and flexibility for all fireground operations. Key Features: Selectable Flow Options: Choose from multiple flow rate options on each model Pressure Options: Available in 100 PSI (7 bar), 80 PSI (6 Bar), or 75 PSI (5 bar) for your target pressure applications Compatibility: Suitable for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, adaptable for various firefighting setups Fog Pattern Adjustment: Adjustable from straight stream to dense fog, providing tactical control over water application Teeth Options: Choice of fixed metal or spinning metal teeth for effective fog creation Foam Compatibility: Designed to work with low-expansion and multi-expansion foam attachments Available Configurations: Tip only models with integrated valves and one-piece models with ball valves to suit diverse operational needs All Prices in USD
The Task Force Tips QuadraFog Selectable Nozzle Tip with Integrated Valve is engineered for precise water stream management, providing firefighters with immediate control and adaptable flow options for diverse fireground scenarios. This compact and robust nozzle tip is designed to deliver optimal performance where tactical flexibility is paramount.
- Dynamic Flow Selection: Operators can swiftly choose between 5, 10, 25, 40, or 60 GPM at 100 PSI, allowing for efficient water application tailored to specific fire conditions.
- Integrated Water Control: An integrated valve provides instant on/off capability directly at the nozzle, streamlining operations and enhancing safety.
- Rugged Construction: Equipped with Fixed Metal Teeth, the nozzle ensures consistent fog patterns and maintains durability against the rigors of industrial and municipal firefighting.
- Optimized Handling: Weighing only 1.100 lbs, this lightweight nozzle tip connects securely via a 1″ NHF Rigid Inlet, facilitating rapid deployment and reducing operator fatigue.
The QuadraFog Selectable Nozzle Tip is an essential component for effective water delivery, designed to meet the demanding requirements of structural firefighting, wildland interfaces, and specialized industrial applications where quick adjustments and reliable performance are critical for successful mitigation.
| Color | |
|---|---|
| Nozzle Valve Style |
Integrated Valve |
| Nozzle Teeth |
Fixed Metal |
| Brand | |
| Shipping Box Dimensions |
3.00 × 3.00 × 6.00 in |
| Weight | |
| Target Nozzle Flow (Imp) |
5/10/25/40/60 GPM |
| Target Nozzle Flow (Met) |
20/40/100/150/235 LPM |
| Target Nozzle Pressure (Bar) |
7 Bar |
| Target Nozzle Pressure (KPA) |
700 KPA |
| Nozzle Type |
Selectable |
| Nozzle Style |
2-Piece ,Tip Only |
| Nozzle Grip |
None |
| Nozzle Hose Size (Imp) |
1" |
| Nozzle Hose Size (Met) |
25 mm |
| Nozzle Hose Connection Type |
NH Female |
| Nozzle Hose Coupling Style |
Knurled |
| Nozzle Hose Coupling Swivel |
Rigid |
| Target Nozzle Pressure (PSI) |
100 PSI |
