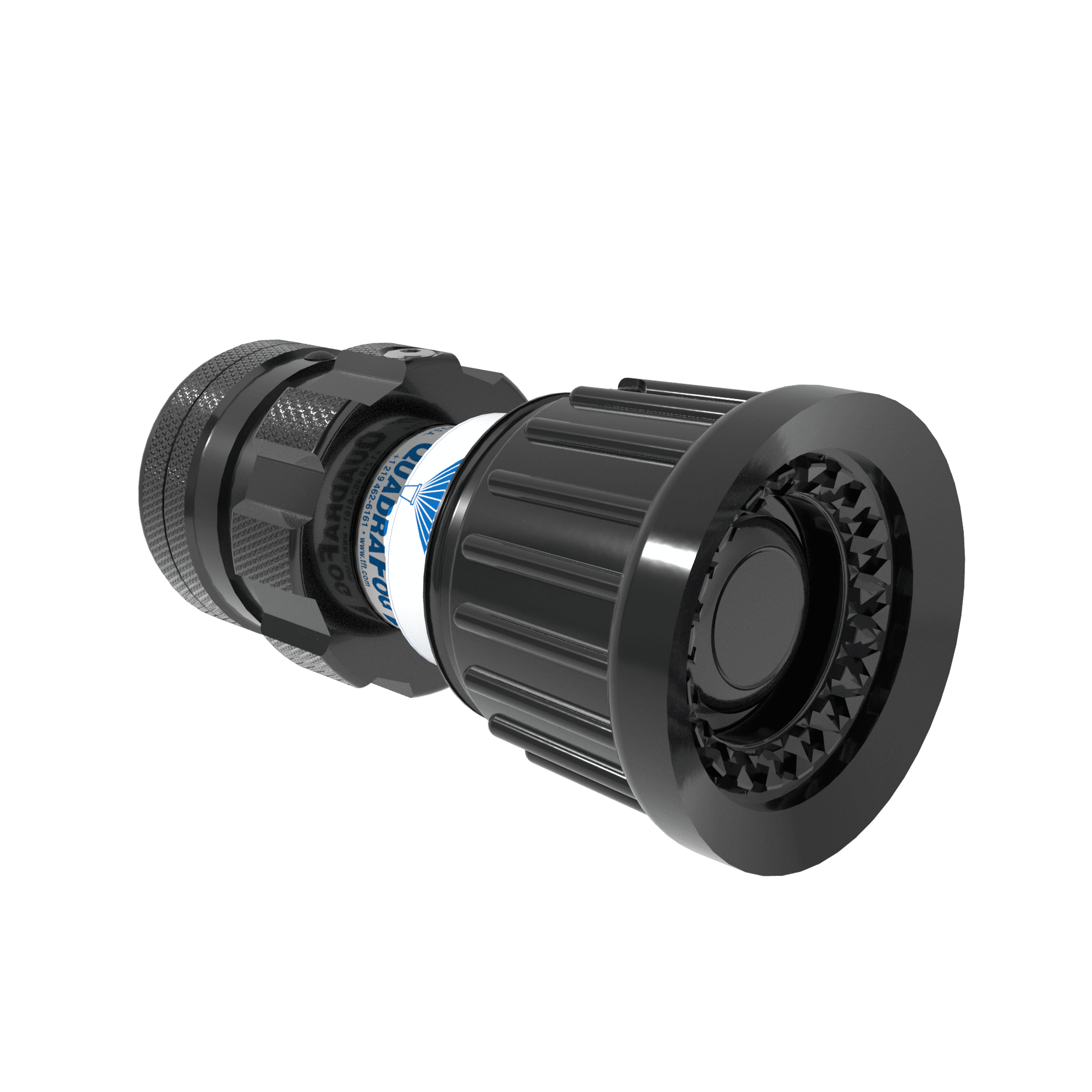

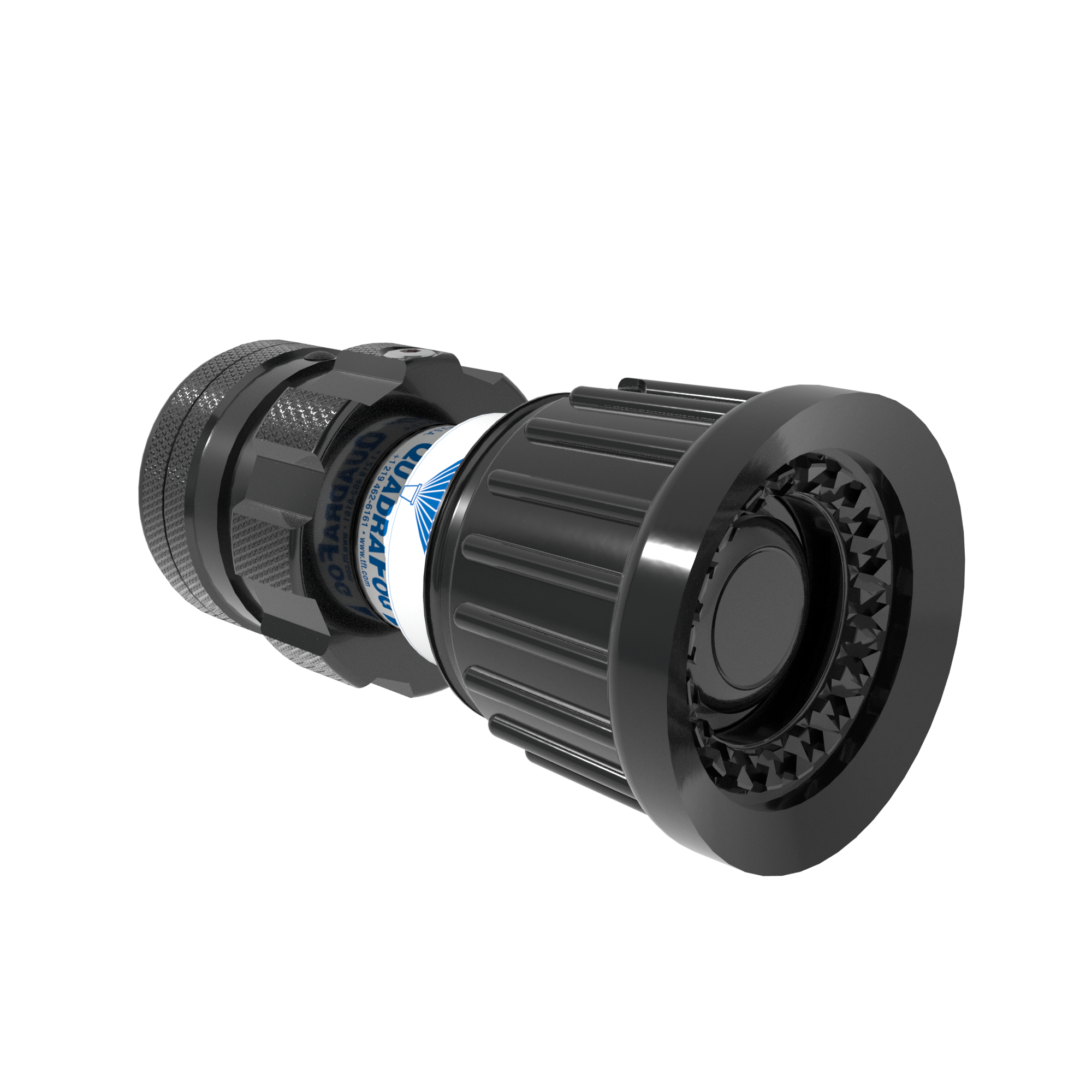

QuadraFog Selectable Nozzle Tip, Integrated Valve – 5/10/24/40 GPM @ 100 PSI, 1″ NPSHF Rigid Inlet, Metal Teeth
$438.10
Versatile Selectable Flow Combination Nozzle
The QuadraFog® Selectable Nozzle series is built for versatility, offering multiple flow and pressure options to suit various firefighting needs. Available in high and low-pressure models for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, QuadraFog® allows firefighters to switch between a straight stream and dense fog pattern with ease. Compatible with foam attachments for enhanced firefighting power, QuadraFog® provides precision and flexibility for all fireground operations. Key Features: Selectable Flow Options: Choose from multiple flow rate options on each model Pressure Options: Available in 100 PSI (7 bar), 80 PSI (6 Bar), or 75 PSI (5 bar) for your target pressure applications Compatibility: Suitable for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, adaptable for various firefighting setups Fog Pattern Adjustment: Adjustable from straight stream to dense fog, providing tactical control over water application Teeth Options: Choice of fixed metal or spinning metal teeth for effective fog creation Foam Compatibility: Designed to work with low-expansion and multi-expansion foam attachments Available Configurations: Tip only models with integrated valves and one-piece models with ball valves to suit diverse operational needs All Prices in USD
The Task Force Tips QuadraFog Selectable Nozzle Tip with an integrated valve delivers precise control over water delivery in dynamic firefighting environments. This compact nozzle tip is engineered to provide adaptable flow management for a range of incident demands.
- Versatile Flow Selection: Choose from four distinct flow settings—5, 10, 24, or 40 GPM at 100 PSI—enabling operators to match water application precisely to varying fire conditions and available water supply.
- Integrated Control: The built-in valve provides immediate shut-off and flow adjustment directly at the nozzle, optimizing water use and operational efficiency.
- Robust Durability: Featuring fixed metal teeth, this nozzle tip ensures consistent pattern formation and offers enhanced resistance to wear and tear during demanding fireground operations.
- Secure Connection: A 1″ NPSHF rigid inlet ensures a stable and reliable connection to hose lines, providing maximum control without unwanted rotation.
- Lightweight Handling: With a weight of just 1.100 lbs, the design reduces operator fatigue, facilitating easier manipulation during extended use.
This Task Force Tips QuadraFog nozzle tip is an essential tool for municipal and industrial firefighting, especially where rapid response and adaptable water flow are critical. Its combination of selectable flow, durable construction, and integrated control ensures reliable performance when precision matters most.
| Color | |
|---|---|
| Nozzle Valve Style |
Integrated Valve |
| Nozzle Teeth |
Fixed Metal |
| Brand | |
| Weight | |
| Target Nozzle Flow (Imp) |
5/10/24/40 GPM |
| Target Nozzle Flow (Met) |
20/40/100/150 LPM |
| Target Nozzle Pressure (Bar) |
7 Bar |
| Target Nozzle Pressure (KPA) |
700 KPA |
| Nozzle Type |
Selectable |
| Nozzle Style |
2-Piece ,Tip Only |
| Nozzle Grip |
None |
| Nozzle Hose Size (Imp) |
1" |
| Nozzle Hose Size (Met) |
25 mm |
| Nozzle Hose Connection Type |
NPSH Female |
| Nozzle Hose Coupling Style |
Knurled |
| Nozzle Hose Coupling Swivel |
Rigid |
| Target Nozzle Pressure (PSI) |
100 PSI |
