MASTER FOAM 2.5″F 350 GPM @ 100 PSI
$2,124.85
350 GPM @ 100 PSI W/10

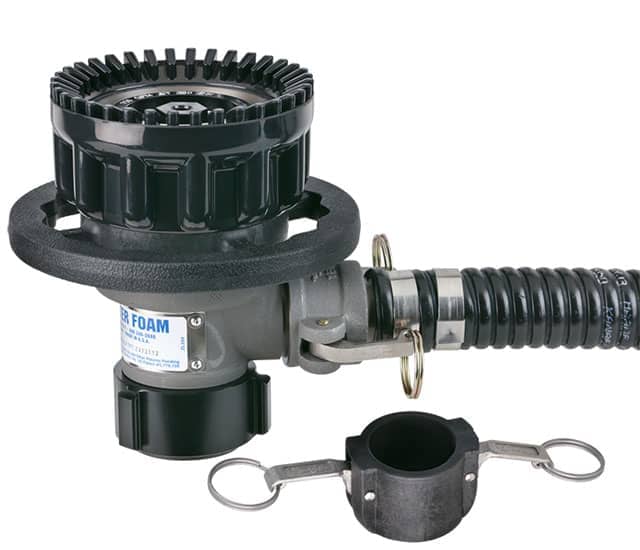

The Task Force Tips’ MASTER FOAM nozzle is a simple and rugged self-educting foam nozzle with superior stream quality and reach. This fixed gallonage fog nozzle rated at 100 psi (7 bar) is available with your choice of 250, 350, 500 or 750 gpm (950, 1300, 2000, 3000 l/min). Fog angle is user adjustable between 90º wide fog and straight stream. The nozzle’s baffle is easily removed for flushing debris. The standard swivel coupling is 2.5″ NH, NPSH, or BSP (65 mm) female threads. The simple flow geometry can educt foam concentrate at .5%, 1%, 3%, or 6% with no small passages to clog. Percentage is easily set with an interchangeable orifice plate. A set of calibrated foam orifice plates is included. Nozzle comes with an industrial grade UV resistant, 10 feet long, 1.5″ diameter (3m x 38 mm) concentrate hose with two cam lock fitting for quick and secure attachment to the nozzle. The simple and basic design requires no grease or other maintenance. The halo ring/stream shaper is made from non-corroding high temperature polymer. The rubber bumper is UV resistant. The MASTER FOAM self-educting nozzle is available in hardcoat anodized ANSI A356.0.T6 aluminum. All MASTER FOAM nozzles accept the FJ-LX-M FOAMJET low expansion air-aspirating attachment. All Prices in USD
The MASTER FOAM 2.5″F 350 GPM @ 100 PSI by Task Force Tips is engineered for effective foam delivery in demanding firefighting scenarios. This fixed-flow nozzle provides a consistent application rate, essential for managing liquid fires and mitigating hazardous spills with foam solutions.
- Delivers a precise 350 GPM at 100 PSI, ensuring predictable and consistent foam application without the need for flow adjustments.
- Manual pattern actuation via a tactile Halo grip allows for rapid, precise stream adjustment to operational requirements.
- Equipped with a 2.5″ NH Female inlet and a robust Rocker style coupling for reliable, standard hose connections.
- A Non-Full Time Swivel on the inlet coupling enhances operational stability by preventing unintended rotation during high-pressure use.
- Weighing 16.000 lbs, this Task Force Tips nozzle balances durable construction with manageable handling for extended deployment.
Designed for critical industrial and municipal foam incidents, the MASTER FOAM nozzle’s dedicated flow and robust design ensure reliable performance where precise extinguishing agent application is paramount for effective suppression and hazard control.
| Brand | |
|---|---|
| Shipping Box Dimensions |
18.00 × 18.00 × 14.00 in |
| Weight | |
| Target Nozzle Flow (Imp) |
350 GPM |
| Target Nozzle Flow (Met) |
1300 l/m |
| Target Nozzle Pressure (Bar) |
7 |
| Target Nozzle Pressure (KPA) |
700 |
| Flow Rate | |
| Pressure | |
| Pattern Actuation Method | |
| Inlet Coupling Style | |
| Inlet Coupling Swivel | |
| Kfactor | |
| Target Nozzle Pressure (Imp) |
100 PSI |
| Nozzle Inlet Size (Imp) |
2.5" |
| Nozzle Inlet Size (Met) |
65 mm |
| Nozzle Inlet Connection Type |
NH Female |
| Nozzle Inlet Coupling Style |
Rocker |
| Nozzle Inlet Coupling Swivel |
Non-Full Time Swivel |
