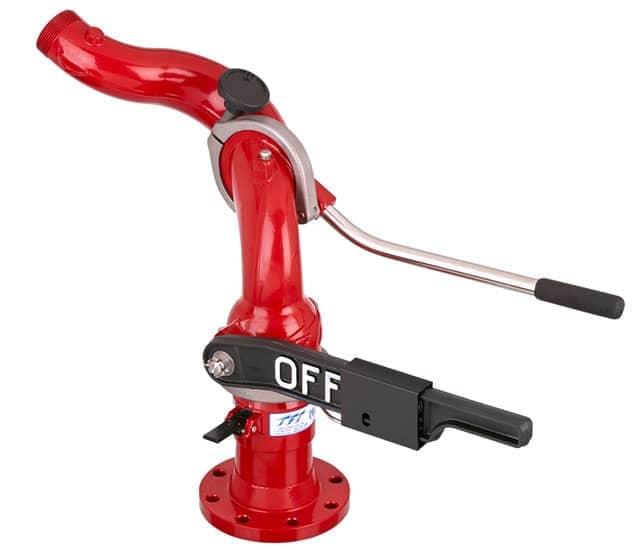

Protector Tiller+Lock Lever 1250 GPM (4500 LPM) Monitor, Standard – 4″ (100 mm) ANSI 150/DN100 PN16 Rigid Flange Inlet, 2.5″ (65 mm) BSPM Rigid Outlet, Red
Rugged and Reliable Industrial Firefighting Monitor
The Protector™ industrial fixed station monitor delivers exceptional performance with a flow capacity of up to 1250 GPM (4750 LPM). Engineered for durability and efficiency, the Protector offers full 360° rotation, low friction loss, and optional integrated features to enhance your firefighting operations. Key Features: High-Capacity Flow: Capable of flowing up to 1250 GPM (4750 LPM), the Protector provides powerful water delivery for industrial firefighting applications Full 360° Rotation: The monitor’s full rotational ability allows precise water stream direction, ensuring coverage of all critical areas without repositioning the unit Low Friction Loss: The patented waterway design with integral stream-shaping vanes minimizes friction loss, maximizing flow efficiency for longer reach and higher performance Optional Integrated Shutoff Valve: Eliminate the need for additional valves with a built-in shutoff valve that offers intuitive control – horizontal for “OFF” and vertical for “ON” positions Automatic Drain Valve: Protects against corrosion and freezing by ensuring complete drainage of the monitor after use – the integrated drain valve is conveniently located above the valve seat Durable Construction: Built with hard coat anodized aluminum and powder-coated inside and out for superior resistance to harsh environments – stainless steel hardware ensures long-lasting reliability Easy Maintenance: The Protector requires no grease or specialized maintenance – swiveling elements and seals, including the valve seat, can be replaced in minutes using standard tools Flexible Mounting Options: Directly bolt the Protector to common pipe flanges – the outlet is available with 2.5″ (65 mm) male threads to accommodate various nozzle configurations Ergonomic Control: The lever-action rotational lock securely holds the monitor in position, while the tiller bar provides intuitive manual operation for precise stream adjustments High-Pressure Tolerance: Designed to withstand pressures of up to 250 PSI (17 bar), making it suitable for demanding industrial applications Warranty and Identification: Each unit includes a laser-engraved serial number and is backed by a 5-year warranty for added peace of mind All Prices in USD
Out of stock
The Protector Tiller+Lock Lever 1250 GPM Monitor from Task Force Tips is engineered for demanding high-volume water delivery in industrial and municipal fire protection. Capable of flowing up to 1250 GPM (4500 LPM), this standard monitor provides essential capability for large-scale fire suppression.
- Achieve precise stream placement with the Tiller Bar and Lock Lever controls, offering a full 360° horizontal rotation and a broad -70° to 80° vertical range.
- The rigid 4″ (100 mm) ANSI 150/DN100 PN16 flange inlet ensures a secure and stable connection to fixed piping systems.
- Manage substantial water flow efficiently and reliably using the integrated Ball Valve, designed for robust operation.
- Weighing 36.000 lbs, this unit combines high performance with a manageable weight, facilitating installation and operational adjustments.
Designed for critical scenarios, this Task Force Tips Protector monitor delivers robust performance where fixed high-flow capabilities are paramount. Its precise control and durable construction are vital for effective fireground operations in industrial complexes or municipal infrastructure.
| Color | |
|---|---|
| Brand | |
| Weight | |
| Bundle |
Monitor Only |
| Monitor Type |
Standard Mounting |
| Monitor Supply Size (Imp) |
4" |
| Monitor Supply Size (Met) |
100 mm |
| Monitor Supply Type |
ANSI 150/DN100 PN16 |
| Monitor Supply Style |
Flange |
| Monitor Supply Swivel |
Rigid |
| Monitor Horizontal Control |
Tiller Bar |
| Monitor Horizontal Range |
360° |
| Monitor Vertical Control |
Tiller Bar |
| Monitor Vertical Range |
-70° – 80° |
| Monitor Control |
Tiller Bar & Lock Lever |
| Monitor Supply Inlets |
Single |
| Monitor Outlet Size (Imp) |
2.5" |
| Monitor Outlet Size (Met) |
65 mm |
| Monitor Outlet Type |
BSP Male |
| Monitor Outlet Style |
Male Threads |
| Monitor Outlet Swivel |
Rigid |
| Max Flow Rate (GPM) |
1250 GPM |
| Max Flow Rate (LPM) |
4500 LPM |
| Monitor Valve Type |
Ball Valve |
