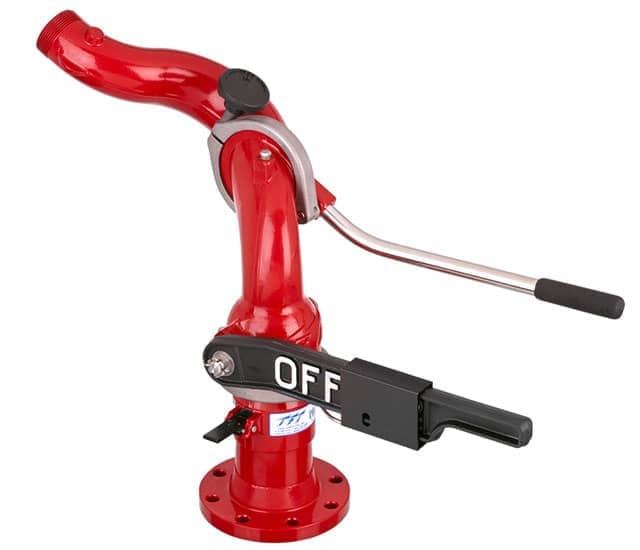

Protector Tiller+Lock Lever 1250 GPM (4500 LPM) Monitor, Standard – 3″ (75 mm) ANSI 150/DN100 PN16 Rigid Flange Inlet, 2.5″ (65 mm) BSPM Rigid Outlet, Red
Rugged and Reliable Industrial Firefighting Monitor
The Protector™ industrial fixed station monitor delivers exceptional performance with a flow capacity of up to 1250 GPM (4750 LPM). Engineered for durability and efficiency, the Protector offers full 360° rotation, low friction loss, and optional integrated features to enhance your firefighting operations. Key Features: High-Capacity Flow: Capable of flowing up to 1250 GPM (4750 LPM), the Protector provides powerful water delivery for industrial firefighting applications Full 360° Rotation: The monitor’s full rotational ability allows precise water stream direction, ensuring coverage of all critical areas without repositioning the unit Low Friction Loss: The patented waterway design with integral stream-shaping vanes minimizes friction loss, maximizing flow efficiency for longer reach and higher performance Optional Integrated Shutoff Valve: Eliminate the need for additional valves with a built-in shutoff valve that offers intuitive control – horizontal for “OFF” and vertical for “ON” positions Automatic Drain Valve: Protects against corrosion and freezing by ensuring complete drainage of the monitor after use – the integrated drain valve is conveniently located above the valve seat Durable Construction: Built with hard coat anodized aluminum and powder-coated inside and out for superior resistance to harsh environments – stainless steel hardware ensures long-lasting reliability Easy Maintenance: The Protector requires no grease or specialized maintenance – swiveling elements and seals, including the valve seat, can be replaced in minutes using standard tools Flexible Mounting Options: Directly bolt the Protector to common pipe flanges – the outlet is available with 2.5″ (65 mm) male threads to accommodate various nozzle configurations Ergonomic Control: The lever-action rotational lock securely holds the monitor in position, while the tiller bar provides intuitive manual operation for precise stream adjustments High-Pressure Tolerance: Designed to withstand pressures of up to 250 PSI (17 bar), making it suitable for demanding industrial applications Warranty and Identification: Each unit includes a laser-engraved serial number and is backed by a 5-year warranty for added peace of mind All Prices in USD
Out of stock
The Task Force Tips Protector Tiller+Lock Lever Monitor is engineered for high-volume fixed fire suppression, capable of delivering flows up to 1250 GPM (4500 LPM). This standard mounting monitor provides robust, directed stream delivery for demanding industrial and municipal applications where significant water or foam volumes are critical.
- Precise Manual Control: The integrated tiller bar offers intuitive, direct aiming for both horizontal and vertical stream trajectories, while the lock lever securely maintains the monitor’s position during prolonged operation.
- Extensive Coverage: A full 360° horizontal rotation, combined with a broad -70° to 80° vertical range, ensures comprehensive area coverage and versatile aiming capabilities from a single fixed position.
- High-Capacity Output: Designed to flow up to 1250 GPM (4500 LPM), this Protector monitor delivers a powerful and sustained stream for effective large-scale fire and hazard mitigation.
- Robust Supply Connection: A 3″ (75 mm) ANSI 150/DN100 PN16 rigid flange inlet provides a secure and standardized connection to high-pressure supply infrastructure.
- Positive Flow Management: Equipped with a ball valve, the monitor ensures quick and efficient water flow control, enabling rapid response and effective stream management.
This monitor is ideally suited for fixed installations requiring substantial flow capacity and precise manual stream positioning, such as industrial processing plants, loading docks, storage tank farms, or municipal facilities where immediate, high-volume fire suppression is essential.
| Color | |
|---|---|
| Brand | |
| Weight | |
| Bundle |
Monitor Only |
| Monitor Type |
Standard Mounting |
| Monitor Supply Size (Imp) |
3" |
| Monitor Supply Size (Met) |
75 mm |
| Monitor Supply Type |
ANSI 150/DN100 PN16 |
| Monitor Supply Style |
Flange |
| Monitor Supply Swivel |
Rigid |
| Monitor Horizontal Control |
Tiller Bar |
| Monitor Horizontal Range |
360° |
| Monitor Vertical Control |
Tiller Bar |
| Monitor Vertical Range |
-70° – 80° |
| Monitor Control |
Tiller Bar & Lock Lever |
| Monitor Supply Inlets |
Single |
| Monitor Outlet Size (Imp) |
2.5" |
| Monitor Outlet Size (Met) |
65 mm |
| Monitor Outlet Type |
BSP Male |
| Monitor Outlet Style |
Male Threads |
| Monitor Outlet Swivel |
Rigid |
| Max Flow Rate (GPM) |
1250 GPM |
| Max Flow Rate (LPM) |
4500 LPM |
| Monitor Valve Type |
Ball Valve |
