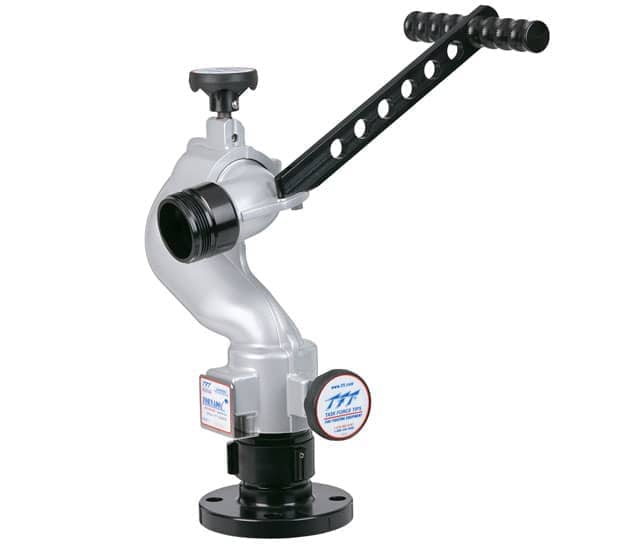

Tornado Tiller 500 GPM (2000 LPM) Monitor, Pumper – 2.5″ (65 mm) ANSI 150/DN100 PN16 Rigid Flange Inlet, 2.5″ (65 mm) NHM Rigid Outlet, Silver
$1,821.30
Compact, High-Performance Firefighting Monitor
The Tornado™ Fixed Monitor is a remotely controlled, truck-mounted monitor engineered for precise water delivery and operational flexibility. Capable of flowing up to 500 GPM (2000 LPM), it is designed to tackle demanding firefighting and industrial applications with ease. Key Features: Remote Control Precision: Features electric remote control of rotation (370°), elevation (90° above horizontal to 45° below), and nozzle stream pattern for seamless operation in dynamic scenarios Programmable Options: Includes programmable oscillation, park functions, and auxiliary controls for enhanced versatility and customization Built-In Stream Straightener: An integral stream straightener improves water flow efficiency and enhances stream reach for effective performance in critical situations Durable and Resilient: Constructed from hard-coat anodized aluminum alloy with a powder coat finish inside and out, ensuring long-lasting performance under extreme conditions Flexible Installation: Compatible with a variety of flange and threaded inlets, including locking quick-connect options, allowing easy integration into different vehicle configurations Low Maintenance: Equipped with grease zerk fittings for effortless lubrication and easy-to-replace seals and components using common hand tools Safety and Control: Includes user-installed travel limit stops for horizontal rotation to ensure precise and safe operation Specialized Dust Mitigation Models: IP66/67-rated models available with upgraded seals and enhanced protection for industrial and environmental applications Streamlined User Controls: Onboard user controls allow for intuitive management of rotation, elevation, and nozzle adjustments directly from the monitor or via remote options Versatile Applications: Suitable for fire suppression on trucks and pumpers, as well as industrial firefighting and dust mitigation operations All Prices in USD
The Tornado Tiller 500 GPM Monitor from Task Force Tips is purpose-built for fixed pumper applications, engineered to deliver substantial water flow for demanding industrial and municipal firefighting operations. This robust monitor, specified at 2000 LPM, is designed for secure integration onto apparatus, providing critical suppression capabilities.
- Tiller Bar Control: Offers precise, mechanical command over a 360° horizontal range and a -45° to 90° vertical range, allowing for swift and accurate stream placement across diverse targets.
- High-Volume Delivery: Capable of flowing up to 500 GPM (2000 LPM), designed to provide significant extinguishing power for large-scale incidents.
- Secure Flange Inlet: Features a 2.5″ (65 mm) ANSI 150/DN100 PN16 rigid flange for a stable, high-pressure connection directly to the pumper apparatus.
- Standardized Outlet: Utilizes a 2.5″ (65 mm) NHM rigid male outlet, ensuring broad compatibility with common firefighting nozzles and hose connections.
- Optimized for Pumper Integration: Engineered as a dedicated pumper monitor, its 14.900 lbs weight supports efficient integration onto emergency vehicles.
This Task Force Tips monitor excels in scenarios requiring immediate high-volume application and accurate stream management from a fixed pumper position. Its robust, flanged design ensures stable operation, critical for effective fire suppression across a range of industrial and municipal challenges.
| Color | |
|---|---|
| Brand | |
| Shipping Box Dimensions |
23.00 × 12.00 × 12.00 in |
| Weight | |
| Bundle |
Monitor Only |
| Monitor Type |
Pumper |
| Monitor Supply Size (Imp) |
2.5" |
| Monitor Supply Size (Met) |
65 mm |
| Monitor Supply Type |
ANSI 150/DN100 PN16 |
| Monitor Supply Style |
Flange |
| Monitor Supply Swivel |
Rigid |
| Monitor Horizontal Control |
Tiller Bar |
| Monitor Horizontal Range |
360° |
| Monitor Vertical Control |
Tiller Bar |
| Monitor Vertical Range |
-45° – 90° |
| Monitor Control |
Tiller Bar |
| Monitor Supply Inlets |
Single |
| Monitor Outlet Size (Imp) |
2.5" |
| Monitor Outlet Size (Met) |
65 mm |
| Monitor Outlet Type |
NH Male |
| Monitor Outlet Style |
Male Threads |
| Monitor Outlet Swivel |
Rigid |
| Max Flow Rate (GPM) |
500 GPM |
| Max Flow Rate (LPM) |
2000 LPM |
