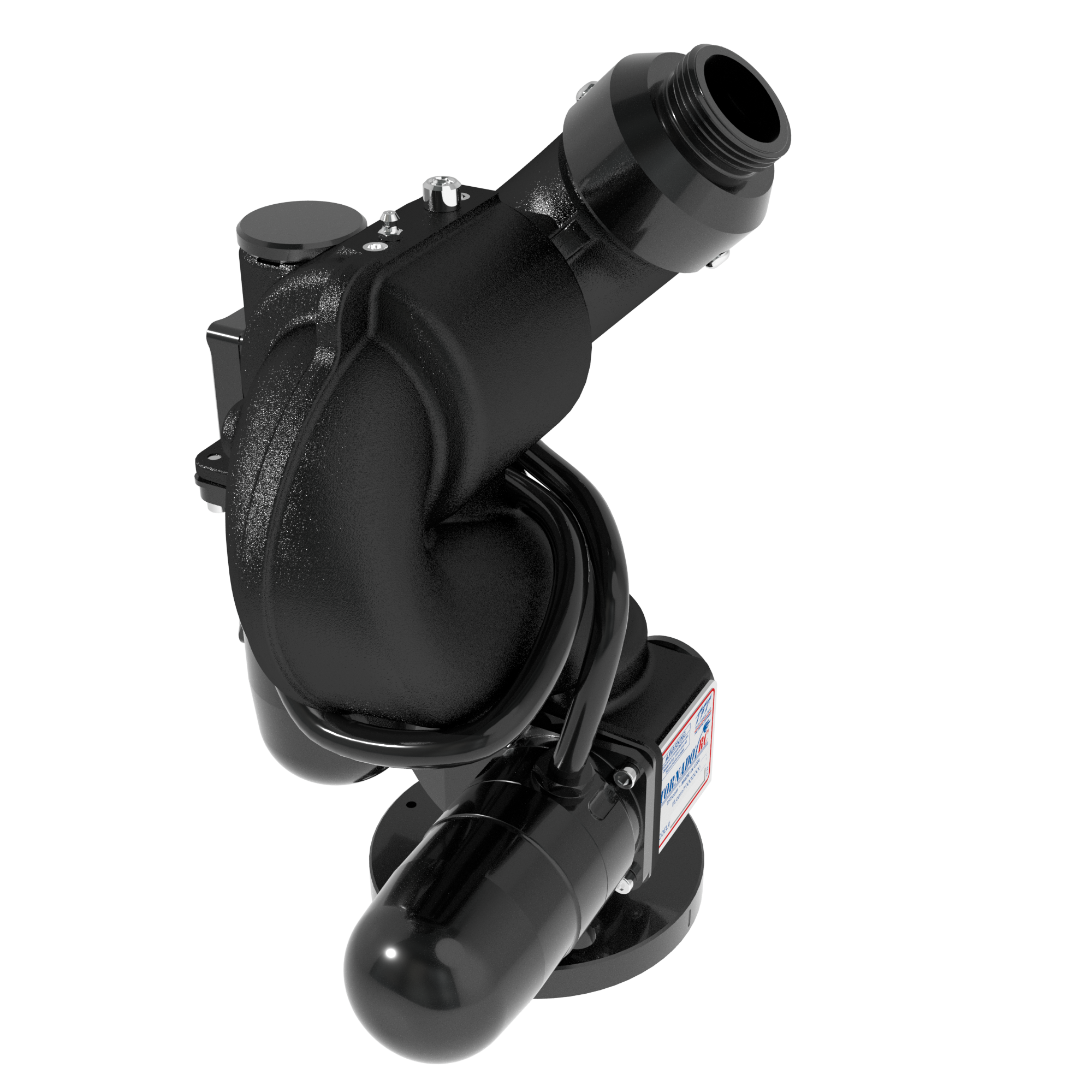

Tornado RC 500 GPM (2000 LPM) Monitor, Anti-Dust, Upgraded Seals, Oscillating – 2.5″ (65 mm) DN65 Australian Rigid Flange Inlet, 1.5″ (38 mm) NHM Rigid Outlet, 12/24 VDC Acc. Power, RS485, Black
Compact, High-Performance Firefighting Monitor
The Tornado™ Fixed Monitor is a remotely controlled, truck-mounted monitor engineered for precise water delivery and operational flexibility. Capable of flowing up to 500 GPM (2000 LPM), it is designed to tackle demanding firefighting and industrial applications with ease. Key Features: Remote Control Precision: Features electric remote control of rotation (370°), elevation (90° above horizontal to 45° below), and nozzle stream pattern for seamless operation in dynamic scenarios Programmable Options: Includes programmable oscillation, park functions, and auxiliary controls for enhanced versatility and customization Built-In Stream Straightener: An integral stream straightener improves water flow efficiency and enhances stream reach for effective performance in critical situations Durable and Resilient: Constructed from hard-coat anodized aluminum alloy with a powder coat finish inside and out, ensuring long-lasting performance under extreme conditions Flexible Installation: Compatible with a variety of flange and threaded inlets, including locking quick-connect options, allowing easy integration into different vehicle configurations Low Maintenance: Equipped with grease zerk fittings for effortless lubrication and easy-to-replace seals and components using common hand tools Safety and Control: Includes user-installed travel limit stops for horizontal rotation to ensure precise and safe operation Specialized Dust Mitigation Models: IP66/67-rated models available with upgraded seals and enhanced protection for industrial and environmental applications Streamlined User Controls: Onboard user controls allow for intuitive management of rotation, elevation, and nozzle adjustments directly from the monitor or via remote options Versatile Applications: Suitable for fire suppression on trucks and pumpers, as well as industrial firefighting and dust mitigation operations All Prices in USD
Out of stock
The Tornado RC 500 GPM (2000 LPM) Monitor from Task Force Tips delivers high-volume, remotely controlled water streams for industrial and municipal applications. With upgraded seals and an anti-dust design, it ensures reliable performance and precise control in challenging environments.
- Remote Control and Coverage: Electronic horizontal (340°) and vertical (-45° to 90°) control enables precise stream placement from a safe distance, utilizing RS485 communication and 12/24 VDC power.
- Robust Flow Capability: Delivers up to 500 GPM (2000 LPM) through its 1.5″ (38 mm) NHM rigid outlet, ensuring high-volume water application for effective incident management.
- Enhanced Durability: Anti-dust construction, upgraded seals, and CE/IP66/67 certifications ensure operational integrity in demanding conditions, protecting the Task Force Tips monitor against environmental factors.
- Automated Water Distribution: Programmable oscillation provides efficient, automatic coverage over a broad area, reducing manual intervention during extended operations.
- Stable Inlet Connection: A 2.5″ (65 mm) DN65 Australian rigid flange inlet ensures a secure, high-capacity supply connection, designed for stability under pressure.
The Tornado RC monitor is ideal for fixed installations in dust-prone environments, material handling facilities, or apparatus mounting where reliable, hands-off water delivery and broad area coverage are critical for protection and suppression.
| Color | |
|---|---|
| Brand | |
| Weight | |
| Bundle |
Monitor Only |
| Monitor Type |
Dust Mitigation |
| Certifications | |
| Monitor Electronic Protocol |
RS485 |
| Monitor Accessory Power |
12/24 VDC |
| Monitor Supply Size (Imp) |
2.5" |
| Monitor Supply Size (Met) |
65 mm |
| Monitor Supply Type |
DN65 (Australian) |
| Monitor Supply Style |
Flange |
| Monitor Supply Swivel |
Rigid |
| Monitor Horizontal Control |
Electronic |
| Monitor Horizontal Range |
340° |
| Monitor Vertical Control |
Electronic |
| Monitor Vertical Range |
-45° – 90° |
| Monitor Special Features |
Programmable Oscillation & Upgraded Seals |
| Monitor Control |
Remote Control |
| Monitor Supply Inlets |
Single |
| Monitor Outlet Size (Imp) |
1.5" |
| Monitor Outlet Size (Met) |
38 mm |
| Monitor Outlet Type |
NH Male |
| Monitor Outlet Style |
Male Threads |
| Monitor Outlet Swivel |
Rigid |
| Max Flow Rate (GPM) |
500 GPM |
| Max Flow Rate (LPM) |
2000 LPM |
| Swing Radius (in) |
8.3 |
| Swing Radius (mm) |
210.8 |
Instructions For Installation, Safe Operation and Maintenance
- MANUAL: Industrial Tornado RC Monitor
- REMOTE CONTROL (RC) MONITOR ELECTRICAL CONTROLS MANUAL
- MANUAL: Industrial Tornado RC Monitor
