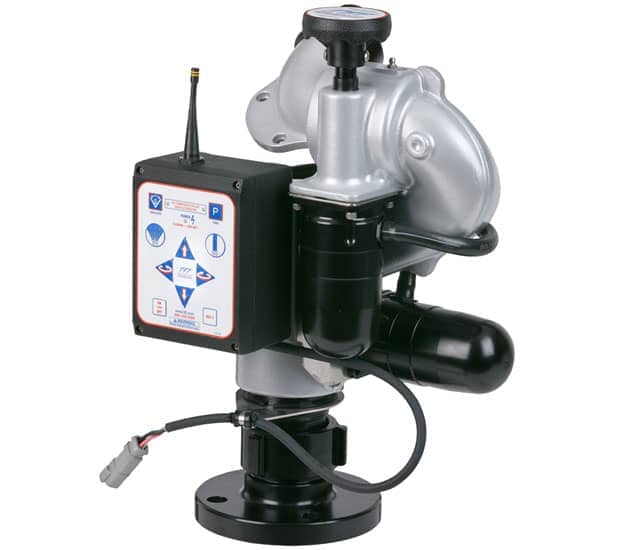

Tornado RC 500 GPM (2000 LPM) Monitor, Pumper, Oscillating – 3″ (75 mm) ANSI 150/DN100 PN16 Rigid Flange Inlet, 2.5″ (65 mm) NHM Rigid Outlet, 12/24 VDC Acc. Power, RS485, Silver
$7,372.30
Compact, High-Performance Firefighting Monitor
The Tornado™ Fixed Monitor is a remotely controlled, truck-mounted monitor engineered for precise water delivery and operational flexibility. Capable of flowing up to 500 GPM (2000 LPM), it is designed to tackle demanding firefighting and industrial applications with ease. Key Features: Remote Control Precision: Features electric remote control of rotation (370°), elevation (90° above horizontal to 45° below), and nozzle stream pattern for seamless operation in dynamic scenarios Programmable Options: Includes programmable oscillation, park functions, and auxiliary controls for enhanced versatility and customization Built-In Stream Straightener: An integral stream straightener improves water flow efficiency and enhances stream reach for effective performance in critical situations Durable and Resilient: Constructed from hard-coat anodized aluminum alloy with a powder coat finish inside and out, ensuring long-lasting performance under extreme conditions Flexible Installation: Compatible with a variety of flange and threaded inlets, including locking quick-connect options, allowing easy integration into different vehicle configurations Low Maintenance: Equipped with grease zerk fittings for effortless lubrication and easy-to-replace seals and components using common hand tools Safety and Control: Includes user-installed travel limit stops for horizontal rotation to ensure precise and safe operation Specialized Dust Mitigation Models: IP66/67-rated models available with upgraded seals and enhanced protection for industrial and environmental applications Streamlined User Controls: Onboard user controls allow for intuitive management of rotation, elevation, and nozzle adjustments directly from the monitor or via remote options Versatile Applications: Suitable for fire suppression on trucks and pumpers, as well as industrial firefighting and dust mitigation operations All Prices in USD
The Tornado RC 500 GPM (2000 LPM) Monitor from Task Force Tips is a remote-controlled pumper monitor engineered for high-volume water delivery and flexible area coverage. This silver unit provides critical fire suppression capabilities for both municipal and industrial applications, designed for robust performance on the fireground.
- Remote Control and Programmable Oscillation facilitate safe, precise water application and efficient wide-area coverage, allowing personnel to manage operations from a distance.
- A 3″ (75 mm) ANSI 150/DN100 PN16 Rigid Flange Inlet ensures a secure, high-capacity connection to the water source, supporting its 500 GPM (2000 LPM) flow rate.
- Exceptional maneuverability with a 370° horizontal range and -45° to 90° vertical range provides extensive coverage adaptability across diverse incident scenarios.
- Integrated RS485 communication protocol and 12/24 VDC accessory power enable seamless electronic system integration and control capabilities.
Weighing 30.500 lbs and featuring a compact 10.2 x 12.4 x 19.7 inch footprint, this Task Force Tips monitor is purpose-built for reliable deployment on pumpers. Its design prioritizes controlled, adaptable water stream placement, crucial for effective incident management in demanding environments.
| Color | |
|---|---|
| Brand | |
| Weight | |
| Bundle |
Monitor Only |
| Monitor Type |
Pumper |
| Certifications | |
| Monitor Electronic Protocol |
RS485 |
| Monitor Accessory Power |
12/24 VDC |
| Monitor Supply Size (Imp) |
3" |
| Monitor Supply Size (Met) |
75 mm |
| Monitor Supply Type |
ANSI 150/DN100 PN16 |
| Monitor Supply Style |
Flange |
| Monitor Supply Swivel |
Rigid |
| Monitor Horizontal Control |
3" Handwheel |
| Monitor Horizontal Range |
370° |
| Monitor Vertical Control |
3" Handwheel |
| Monitor Vertical Range |
-45° – 90° |
| Monitor Special Features |
Programmable Oscillation |
| Monitor Control |
Remote Control |
| Monitor Supply Inlets |
Single |
| Monitor Outlet Size (Imp) |
2.5" |
| Monitor Outlet Size (Met) |
65 mm |
| Monitor Outlet Type |
NH Male |
| Monitor Outlet Style |
Male Threads |
| Monitor Outlet Swivel |
Rigid |
| Max Flow Rate (GPM) |
500 GPM |
| Max Flow Rate (LPM) |
2000 LPM |
| Swing Radius (in) |
8.3 |
| Swing Radius (mm) |
210.8 |
