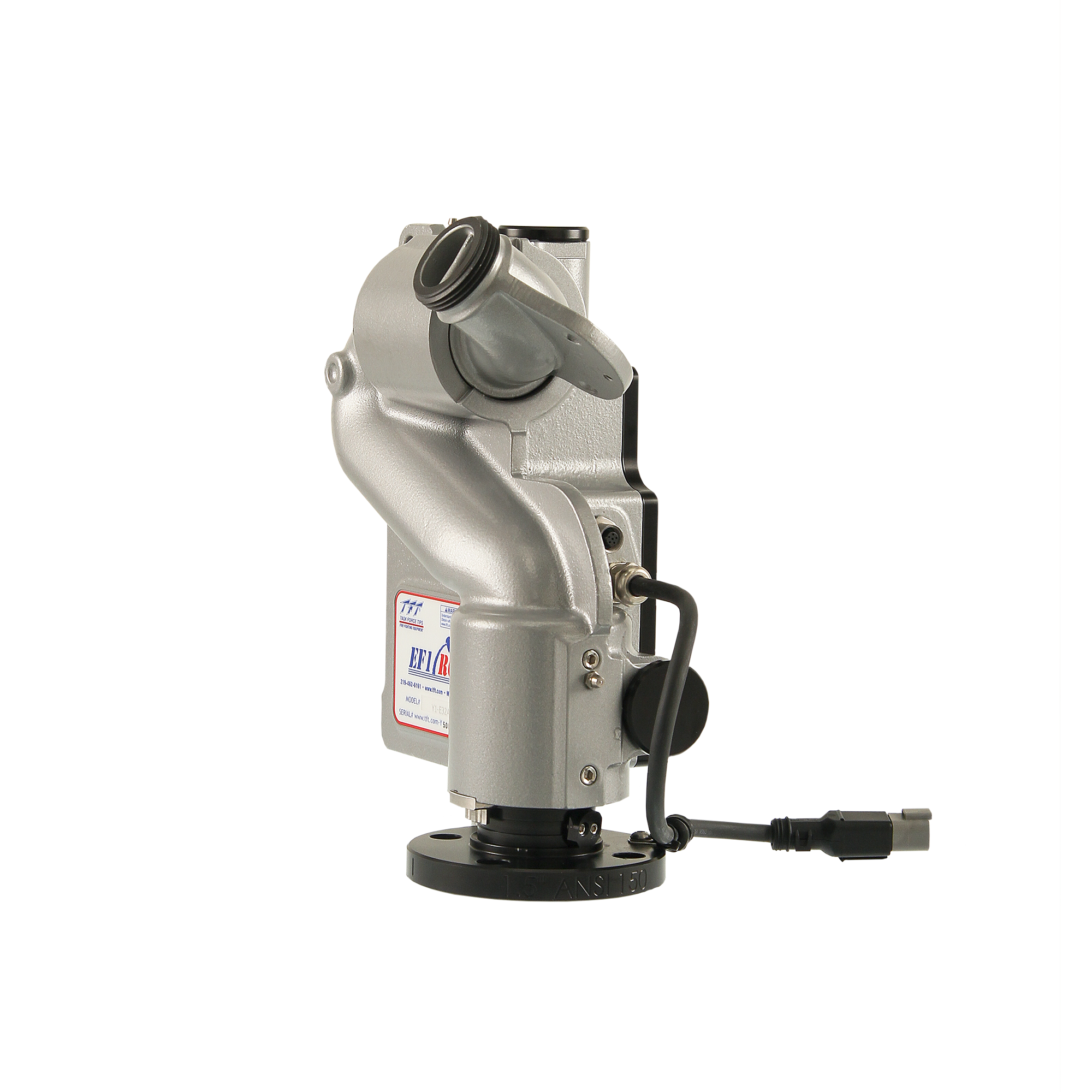

EF1 RC Monitor, 200 GPM (750 LPM) – 2″ (52 mm) NPTF Quick-Connect Swivel Inlet, 1.5″ (38 mm) NHM Rigid Outlet, 12/24 VDC Acc. Power, RS485, Silver
$4,038.45
Compact Monitor for Wildland Firefighting
The EF1™ Remote-Controlled Monitor is designed to deliver powerful performance in a compact and rugged package. Capable of flowing up to 200 GPM (757 LPM), the EF1 is the ideal solution for wildland and interface apparatus. At just 12.6″ tall and built with hard coat anodized aluminum, this monitor is perfect for forestry bumper turrets and other off-road firefighting applications. Equipped with programmable park and oscillation modes, sealed electric drives, and waterproof controls, the EF1 is built to handle harsh conditions while delivering precise and efficient water flow. Key Features: High-Performance Flow: Supports up to 200 GPM (757 LPM), making it suitable for wildland and interface firefighting Compact Design: Measures only 12.6” tall and 6.1” deep, ideal for forestry and off-road applications Durable Construction: Built with hard coat anodized aluminum and powder-coated for extreme durability in harsh conditions Wide Travel Range: Horizontal Travel: 135° left and right of center for a total of 270° Vertical Travel: 45° below center and 90° above center for a total of 135° Programmable Features: Includes park and oscillation modes for operational flexibility and efficiency Easy Installation: Simplified wiring with a single factory-installed plug and compatibility with various inlets and outlets, including quick-connect couplings Waterproof Components: Electric drives and control box are sealed to protect against water and dust Adjustable Travel Stops: Horizontal stops can be adjusted for a 180° range, providing more control over the monitor’s movement All Prices in USD
The Task Force Tips EF1 RC Monitor provides precise remote-controlled operation, delivering a maximum flow rate of 200 GPM (750 LPM). Designed for standard mounting configurations, this monitor offers targeted water delivery capabilities essential for various firefighting and protection scenarios.
- Rapid setup and secure hose attachment are ensured by the 2″ (52 mm) NPTF quick-connect swivel inlet, facilitating efficient deployment.
- Electronic controls enable a wide 270° horizontal and comprehensive -45° to 90° vertical range, allowing for precise stream placement from a safe distance.
- System integration is streamlined through the RS485 electronic protocol and versatile 12/24 VDC accessory power, ensuring reliable communication and compatibility.
- Weighing just 18.000 lbs and presented in a silver finish, its compact 6.8 x 9.2 x 16.8-inch dimensions (172.7 x 233.7 x 426.7 mm) support versatile mounting applications.
The EF1 RC Monitor is ideal for industrial facilities, municipal fire departments, and specialized operations where remote control, targeted water flow, and adaptable coverage are critical. Its electronic control features and standard mounting design ensure consistent performance in demanding situations.
| Color | |
|---|---|
| Brand | |
| Weight | |
| Bundle |
Monitor Only |
| Monitor Type |
Standard Mounting |
| Monitor Electronic Protocol |
RS485 |
| Monitor Accessory Power |
12/24 VDC |
| Monitor Supply Size (Imp) |
2" |
| Monitor Supply Size (Met) |
52 mm |
| Monitor Supply Type |
NPT Female |
| Monitor Supply Style |
Quick-Connect |
| Monitor Supply Swivel |
Swivel |
| Monitor Horizontal Control |
Electronic |
| Monitor Horizontal Range |
270° |
| Monitor Vertical Control |
Electronic |
| Monitor Vertical Range |
-45° – 90° |
| Monitor Control |
Remote Control |
| Monitor Supply Inlets |
Single |
| Monitor Outlet Size (Imp) |
1.5" |
| Monitor Outlet Size (Met) |
38 mm |
| Monitor Outlet Type |
NH Male |
| Monitor Outlet Style |
Male Threads |
| Monitor Outlet Swivel |
Rigid |
| Max Flow Rate (GPM) |
200 GPM |
| Max Flow Rate (LPM) |
750 LPM |
| Swing Radius (in) |
7 |
| Swing Radius (mm) |
177.8 |
