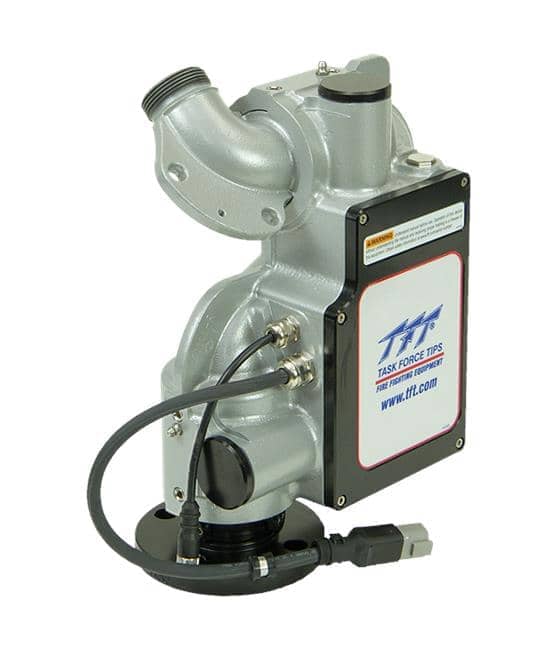

EF1 RC Monitor, 200 GPM (750 LPM) – 2″ (52 mm) NPTF Swivel Rocker Inlet, 1.5″ (38 mm) NHM Rigid Outlet, 12/24 VDC Acc. Power, RS485, Silver
$4,038.45
Compact Monitor for Wildland Firefighting
The EF1™ Remote-Controlled Monitor is designed to deliver powerful performance in a compact and rugged package. Capable of flowing up to 200 GPM (757 LPM), the EF1 is the ideal solution for wildland and interface apparatus. At just 12.6″ tall and built with hard coat anodized aluminum, this monitor is perfect for forestry bumper turrets and other off-road firefighting applications. Equipped with programmable park and oscillation modes, sealed electric drives, and waterproof controls, the EF1 is built to handle harsh conditions while delivering precise and efficient water flow. Key Features: High-Performance Flow: Supports up to 200 GPM (757 LPM), making it suitable for wildland and interface firefighting Compact Design: Measures only 12.6” tall and 6.1” deep, ideal for forestry and off-road applications Durable Construction: Built with hard coat anodized aluminum and powder-coated for extreme durability in harsh conditions Wide Travel Range: Horizontal Travel: 135° left and right of center for a total of 270° Vertical Travel: 45° below center and 90° above center for a total of 135° Programmable Features: Includes park and oscillation modes for operational flexibility and efficiency Easy Installation: Simplified wiring with a single factory-installed plug and compatibility with various inlets and outlets, including quick-connect couplings Waterproof Components: Electric drives and control box are sealed to protect against water and dust Adjustable Travel Stops: Horizontal stops can be adjusted for a 180° range, providing more control over the monitor’s movement All Prices in USD
The Task Force Tips EF1 RC Monitor delivers reliable, remote-controlled water application up to 200 GPM (750 LPM) for diverse industrial and municipal fire protection scenarios. Engineered for precision and operational safety, this compact monitor integrates seamlessly into a range of firefighting apparatus.
- Enhanced Operator Safety: Remote control capabilities allow firefighters to maintain a safe distance from hazards, directing water flow with precision.
- Broad Coverage and Flexibility: Electronic horizontal control provides a 270° range, complemented by a versatile -45° to 90° vertical range for comprehensive suppression.
- Simplified Setup: A 2″ (52 mm) NPTF swivel rocker inlet ensures quick and flexible connection to the water supply, streamlining deployment.
- System Integration: Operates on 12/24 VDC accessory power and utilizes RS485 communication, facilitating integration with vehicle power and control systems.
- Efficient Design: With a weight of just 17.300 lbs and compact dimensions, the monitor supports flexible mounting options without overburdening apparatus.
This EF1 monitor design is well-suited for fixed installations, vehicle-mounted applications, or situations where controlled, precise water delivery and remote operation are paramount for effective incident management.
| Color | |
|---|---|
| Brand | |
| Weight | |
| Bundle |
Monitor Only |
| Monitor Type |
Standard Mounting |
| Monitor Electronic Protocol |
RS485 |
| Monitor Accessory Power |
12/24 VDC |
| Monitor Supply Size (Imp) |
2" |
| Monitor Supply Size (Met) |
52 mm |
| Monitor Supply Type |
NPT Female |
| Monitor Supply Style |
Rocker |
| Monitor Supply Swivel |
Swivel |
| Monitor Horizontal Control |
Electronic |
| Monitor Horizontal Range |
270° |
| Monitor Vertical Control |
Electronic |
| Monitor Vertical Range |
-45° – 90° |
| Monitor Control |
Remote Control |
| Monitor Supply Inlets |
Single |
| Monitor Outlet Size (Imp) |
1.5" |
| Monitor Outlet Size (Met) |
38 mm |
| Monitor Outlet Type |
NH Male |
| Monitor Outlet Style |
Male Threads |
| Monitor Outlet Swivel |
Rigid |
| Max Flow Rate (GPM) |
200 GPM |
| Max Flow Rate (LPM) |
750 LPM |
| Swing Radius (in) |
7 |
| Swing Radius (mm) |
177.8 |
