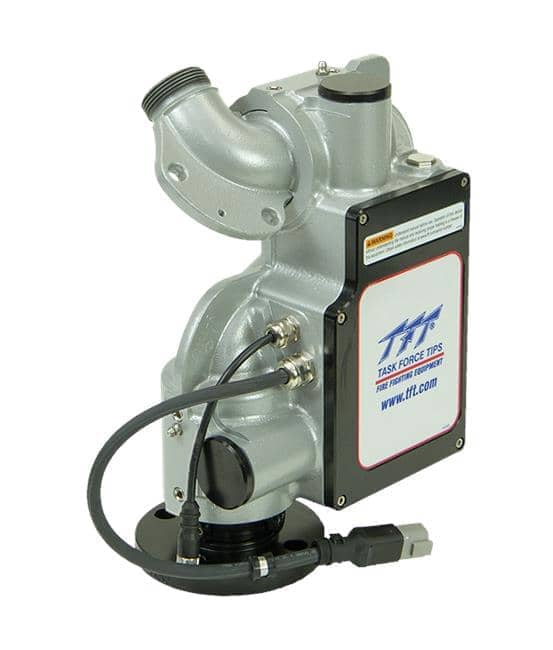

EF1 RC Monitor, 200 GPM (750 LPM) – 2″ (52 mm) ANSI 150/DN100 PN16 Rigid Flange Inlet, 1.5″ (38 mm) NHM Rigid Outlet, 12/24 VDC Acc. Power, RS485, Silver
Compact Monitor for Wildland Firefighting
The EF1™ Remote-Controlled Monitor is designed to deliver powerful performance in a compact and rugged package. Capable of flowing up to 200 GPM (757 LPM), the EF1 is the ideal solution for wildland and interface apparatus. At just 12.6″ tall and built with hard coat anodized aluminum, this monitor is perfect for forestry bumper turrets and other off-road firefighting applications. Equipped with programmable park and oscillation modes, sealed electric drives, and waterproof controls, the EF1 is built to handle harsh conditions while delivering precise and efficient water flow. Key Features: High-Performance Flow: Supports up to 200 GPM (757 LPM), making it suitable for wildland and interface firefighting Compact Design: Measures only 12.6” tall and 6.1” deep, ideal for forestry and off-road applications Durable Construction: Built with hard coat anodized aluminum and powder-coated for extreme durability in harsh conditions Wide Travel Range: Horizontal Travel: 135° left and right of center for a total of 270° Vertical Travel: 45° below center and 90° above center for a total of 135° Programmable Features: Includes park and oscillation modes for operational flexibility and efficiency Easy Installation: Simplified wiring with a single factory-installed plug and compatibility with various inlets and outlets, including quick-connect couplings Waterproof Components: Electric drives and control box are sealed to protect against water and dust Adjustable Travel Stops: Horizontal stops can be adjusted for a 180° range, providing more control over the monitor’s movement All Prices in USD
Out of stock
The Task Force Tips EF1 RC Monitor is a remotely controlled fixed monitor, designed for precise water or foam stream delivery in industrial and municipal fire protection scenarios. This standard mounting monitor provides a maximum flow rate of 200 GPM (750 LPM), enabling effective response to various fireground demands.
- Remote Operational Control: Electronic horizontal control over 270° and vertical control from -45° to 90° allows precise stream placement from a safe distance, enhancing firefighter safety and operational flexibility.
- Robust System Integration: The RS485 electronic protocol and 12/24 VDC accessory power ensure seamless integration into existing control systems and power infrastructures.
- Secure and Adaptable Installation: A rigid 2″ (52 mm) ANSI 150/DN100 PN16 flange inlet provides a secure connection to industrial piping, compatible with international standards, while the 1.5″ (38 mm) NHM rigid outlet offers standard fire hose compatibility.
- Compact Design: Weighing 18.900 lbs, its silver finish and compact design facilitate standard mounting in diverse industrial environments without excessive structural load.
The EF1 RC Monitor’s design, featuring a rigid flange inlet and remote electronic control, makes it an essential component for fixed installations requiring targeted fire suppression, from manufacturing facilities to fuel storage areas.
| Color | |
|---|---|
| Brand | |
| Weight | |
| Bundle |
Monitor Only |
| Monitor Type |
Standard Mounting |
| Monitor Electronic Protocol |
RS485 |
| Monitor Accessory Power |
12/24 VDC |
| Monitor Supply Size (Imp) |
2" |
| Monitor Supply Size (Met) |
52 mm |
| Monitor Supply Type |
ANSI 150/DN100 PN16 |
| Monitor Supply Style |
Flange |
| Monitor Supply Swivel |
Rigid |
| Monitor Horizontal Control |
Electronic |
| Monitor Horizontal Range |
270° |
| Monitor Vertical Control |
Electronic |
| Monitor Vertical Range |
-45° – 90° |
| Monitor Control |
Remote Control |
| Monitor Supply Inlets |
Single |
| Monitor Outlet Size (Imp) |
1.5" |
| Monitor Outlet Size (Met) |
38 mm |
| Monitor Outlet Type |
NH Male |
| Monitor Outlet Style |
Male Threads |
| Monitor Outlet Swivel |
Rigid |
| Max Flow Rate (GPM) |
200 GPM |
| Max Flow Rate (LPM) |
750 LPM |
