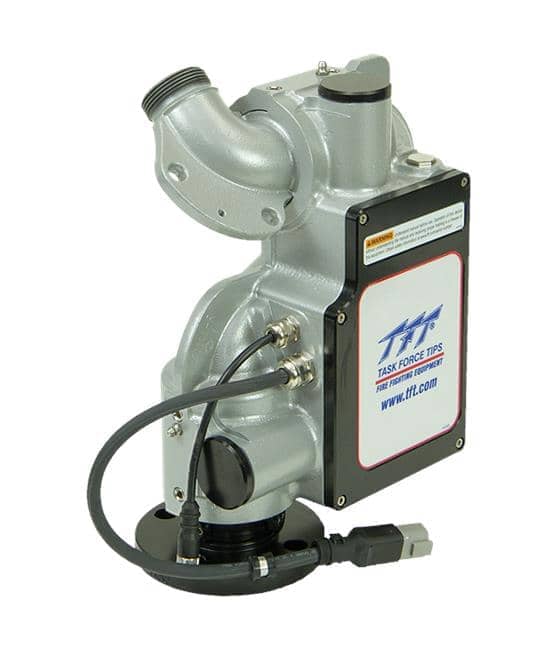

EF1 RC Monitor, 200 GPM (750 LPM) – 2″ (52 mm) BSPF Swivel Rocker Inlet, 1.5″ (38 mm) BSPM Rigid Outlet, 12/24 VDC Acc. Power, RS485, Silver
Compact Monitor for Wildland Firefighting
The EF1™ Remote-Controlled Monitor is designed to deliver powerful performance in a compact and rugged package. Capable of flowing up to 200 GPM (757 LPM), the EF1 is the ideal solution for wildland and interface apparatus. At just 12.6″ tall and built with hard coat anodized aluminum, this monitor is perfect for forestry bumper turrets and other off-road firefighting applications. Equipped with programmable park and oscillation modes, sealed electric drives, and waterproof controls, the EF1 is built to handle harsh conditions while delivering precise and efficient water flow. Key Features: High-Performance Flow: Supports up to 200 GPM (757 LPM), making it suitable for wildland and interface firefighting Compact Design: Measures only 12.6” tall and 6.1” deep, ideal for forestry and off-road applications Durable Construction: Built with hard coat anodized aluminum and powder-coated for extreme durability in harsh conditions Wide Travel Range: Horizontal Travel: 135° left and right of center for a total of 270° Vertical Travel: 45° below center and 90° above center for a total of 135° Programmable Features: Includes park and oscillation modes for operational flexibility and efficiency Easy Installation: Simplified wiring with a single factory-installed plug and compatibility with various inlets and outlets, including quick-connect couplings Waterproof Components: Electric drives and control box are sealed to protect against water and dust Adjustable Travel Stops: Horizontal stops can be adjusted for a 180° range, providing more control over the monitor’s movement All Prices in USD
Out of stock
The Task Force Tips EF1 RC Monitor is a remote-controlled firefighting monitor engineered for precise, electronically directed stream placement. Delivering up to 200 GPM (750 LPM), this silver monitor is designed for effective fire suppression in various demanding environments.
- Achieve superior operational safety and tactical control with electronic remote capabilities, enabling operators to direct the stream from a safe distance.
- Benefit from wide-ranging coverage, with a 270° electronic horizontal control and a comprehensive -45° to 90° electronic vertical range.
- Ensure robust system integration through its RS485 communication protocol and versatile 12/24 VDC accessory power compatibility.
- Connect efficiently to water sources via a 2″ (52 mm) BSPF swivel rocker inlet, offering connection flexibility for rapid deployment.
- The compact 17.300 lbs unit, featuring a 1.5″ (38 mm) BSPM rigid outlet, is optimized for standard mounting with a streamlined footprint.
The EF1 RC Monitor prioritizes precision, power, and operator safety, making it an essential component for fixed industrial installations or mobile apparatus where controlled, powerful suppression is paramount on the fireground.
| Color | |
|---|---|
| Brand | |
| Weight | |
| Bundle |
Monitor Only |
| Monitor Type |
Standard Mounting |
| Monitor Electronic Protocol |
RS485 |
| Monitor Accessory Power |
12/24 VDC |
| Monitor Supply Size (Imp) |
2" |
| Monitor Supply Size (Met) |
52 mm |
| Monitor Supply Type |
BSP Female |
| Monitor Supply Style |
Rocker |
| Monitor Supply Swivel |
Swivel |
| Monitor Horizontal Control |
Electronic |
| Monitor Horizontal Range |
270° |
| Monitor Vertical Control |
Electronic |
| Monitor Vertical Range |
-45° – 90° |
| Monitor Control |
Remote Control |
| Monitor Supply Inlets |
Single |
| Monitor Outlet Size (Imp) |
1.5" |
| Monitor Outlet Size (Met) |
38 mm |
| Monitor Outlet Type |
BSP Male |
| Monitor Outlet Style |
Male Threads |
| Monitor Outlet Swivel |
Rigid |
| Max Flow Rate (GPM) |
200 GPM |
| Max Flow Rate (LPM) |
750 LPM |
| Swing Radius (in) |
7 |
| Swing Radius (mm) |
177.8 |
