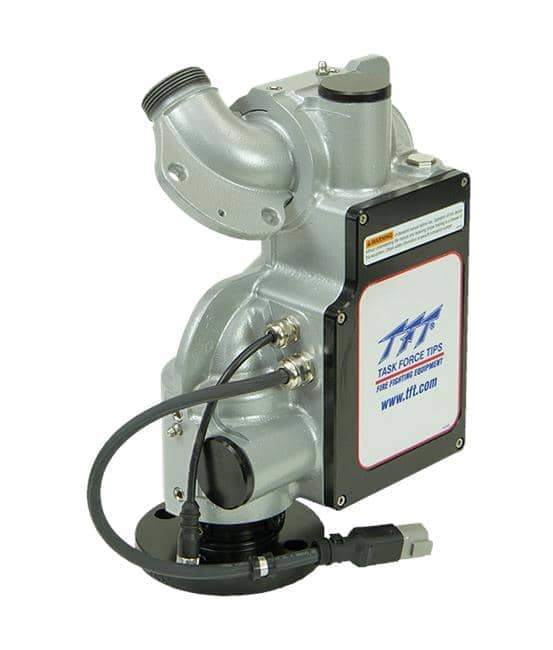

EF1 RC Monitor, 200 GPM (750 LPM) – 1.5″ (38 mm) BSPF Swivel Rocker Inlet, 1.5″ (38 mm) BSPM Rigid Outlet, 12/24 VDC Acc. Power, RS485, Silver
Compact Monitor for Wildland Firefighting
The EF1™ Remote-Controlled Monitor is designed to deliver powerful performance in a compact and rugged package. Capable of flowing up to 200 GPM (757 LPM), the EF1 is the ideal solution for wildland and interface apparatus. At just 12.6″ tall and built with hard coat anodized aluminum, this monitor is perfect for forestry bumper turrets and other off-road firefighting applications. Equipped with programmable park and oscillation modes, sealed electric drives, and waterproof controls, the EF1 is built to handle harsh conditions while delivering precise and efficient water flow. Key Features: High-Performance Flow: Supports up to 200 GPM (757 LPM), making it suitable for wildland and interface firefighting Compact Design: Measures only 12.6” tall and 6.1” deep, ideal for forestry and off-road applications Durable Construction: Built with hard coat anodized aluminum and powder-coated for extreme durability in harsh conditions Wide Travel Range: Horizontal Travel: 135° left and right of center for a total of 270° Vertical Travel: 45° below center and 90° above center for a total of 135° Programmable Features: Includes park and oscillation modes for operational flexibility and efficiency Easy Installation: Simplified wiring with a single factory-installed plug and compatibility with various inlets and outlets, including quick-connect couplings Waterproof Components: Electric drives and control box are sealed to protect against water and dust Adjustable Travel Stops: Horizontal stops can be adjusted for a 180° range, providing more control over the monitor’s movement All Prices in USD
Out of stock
The EF1 RC Monitor from Task Force Tips is engineered for effective, remotely controlled stream delivery, capable of flows up to 200 GPM (750 LPM). Designed for standard mounting, this monitor provides precise stream placement and integrated electronic command capabilities for demanding fire protection scenarios.
- Precision Control: Electronic horizontal and vertical control, with ranges of 270° and -45° to 90° respectively, allows operators to precisely direct the water stream remotely for optimal fire attack.
- Integrated Connectivity: Utilizing an RS485 electronic protocol and adaptable 12/24 VDC accessory power, the monitor offers straightforward integration into existing control systems and power supplies.
- Efficient Water Delivery: Capable of flowing up to 200 GPM (750 LPM) through its 1.5″ (38 mm) BSP connections, ensuring a substantial and consistent stream for various suppression tactics.
- Flexible Setup: The 1.5″ (38 mm) BSPF swivel rocker inlet simplifies hose connection and orientation, while the rigid 1.5″ (38 mm) BSPM outlet provides a stable platform for nozzle attachment.
The Task Force Tips EF1 RC Monitor is well-suited for fixed installations in industrial facilities, vehicle-mounted applications, or other scenarios demanding precise, remotely operated stream projection. Its comprehensive electronic control and versatile connection options contribute to enhanced operational safety and effectiveness on the fireground.
| Color | |
|---|---|
| Brand | |
| Weight | |
| Bundle |
Monitor Only |
| Monitor Type |
Standard Mounting |
| Monitor Electronic Protocol |
RS485 |
| Monitor Accessory Power |
12/24 VDC |
| Monitor Supply Size (Imp) |
1.5" |
| Monitor Supply Size (Met) |
38 mm |
| Monitor Supply Type |
BSP Female |
| Monitor Supply Style |
Rocker |
| Monitor Supply Swivel |
Swivel |
| Monitor Horizontal Control |
Electronic |
| Monitor Horizontal Range |
270° |
| Monitor Vertical Control |
Electronic |
| Monitor Vertical Range |
-45° – 90° |
| Monitor Control |
Remote Control |
| Monitor Supply Inlets |
Single |
| Monitor Outlet Size (Imp) |
1.5" |
| Monitor Outlet Size (Met) |
38 mm |
| Monitor Outlet Type |
BSP Male |
| Monitor Outlet Style |
Male Threads |
| Monitor Outlet Swivel |
Rigid |
| Max Flow Rate (GPM) |
200 GPM |
| Max Flow Rate (LPM) |
750 LPM |
