BLITZFIRE-HE OSC

Out of stock

SKU: XX222A-HE Categories: , Brand
Description

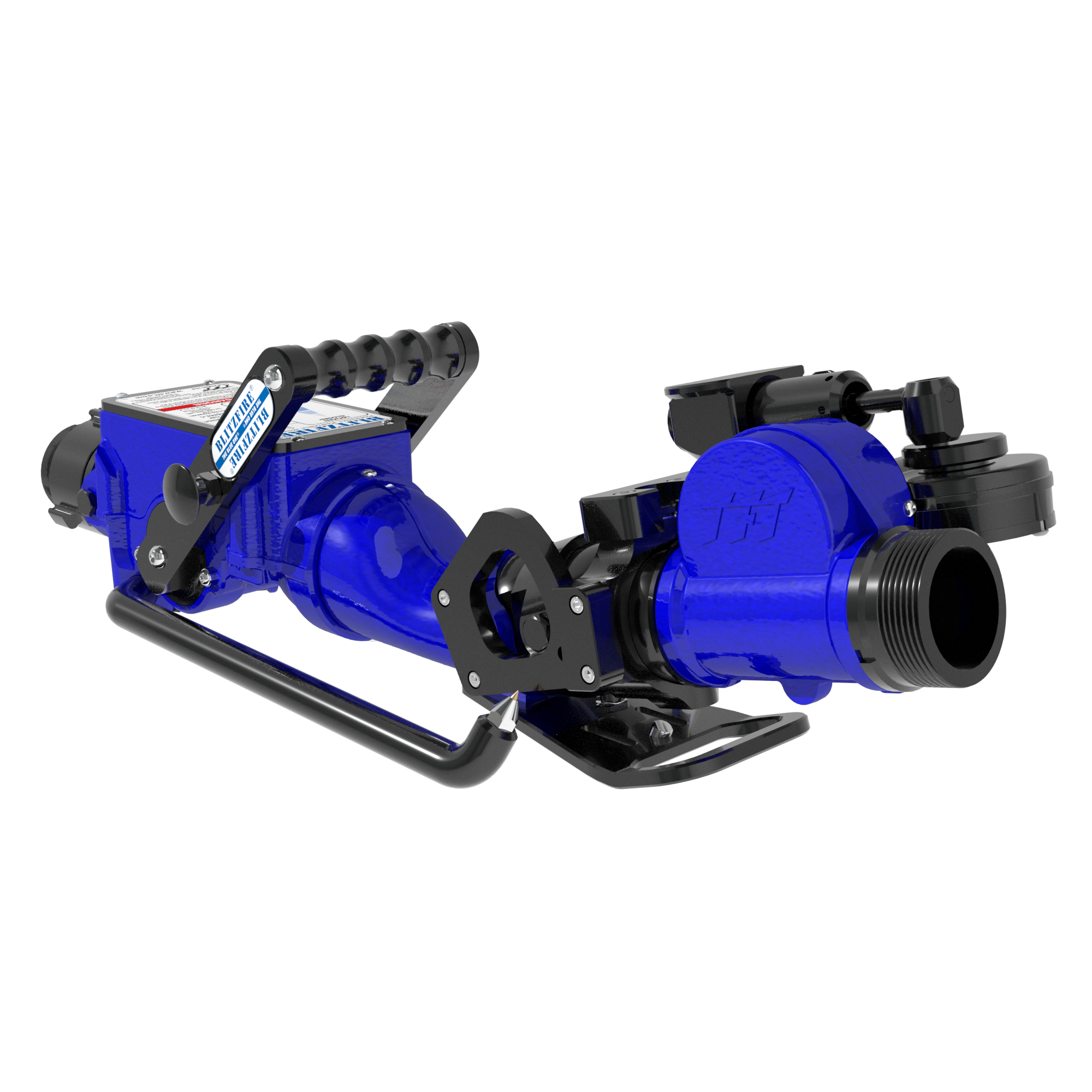

The BLITZFIRE-HE OSC from Task Force Tips is a portable, oscillating monitor engineered for efficient, sustained water stream deployment. Designed for dynamic fireground operations, this unit delivers a significant flow capacity with controlled movement, critical for managing rapidly developing incidents.

  • Integrated oscillation with 20 degrees horizontal movement (left and right of center) provides automatic, sweeping coverage for wide-area suppression.
  • Delivers a maximum flow of 500 gpm (2,000 l/min), offering substantial water delivery for aggressive fire attack.
  • A low weight of 36.000 lbs supports rapid deployment and repositioning, enhancing operational agility on the incident scene.
  • The robust aluminum slide valve design ensures reliable flow control and durability under challenging fireground conditions.
  • Offers exceptional vertical movement from 10 to 86 degrees above horizontal, including high elevation capability, for versatile stream placement on varied targets.
  • Equipped with a safety shutoff mechanism, enhancing operational security during deployment and use.

This monitor’s combination of high flow, oscillating coverage, and lightweight design makes it an effective tool for municipal and industrial applications where rapid, sustained, and controlled water delivery is paramount. The BLITZFIRE-HE OSC supports critical suppression efforts, providing reliable performance in dynamic environments.

Additional information
Weight

Oscillation

Valve Design

Finish

Vertical Control

Horizontal Movement (degrees)

20 left and right of center

Horizontal Control

Inlet

Max Flow

Safety Shutoff

Outlet

Vertical Movement (degrees)

10 to 86 above horizontal

Operation Energy Source

High Elevation

Y

Document Attachments

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance

Service Procedures

Certifications & Approvals
