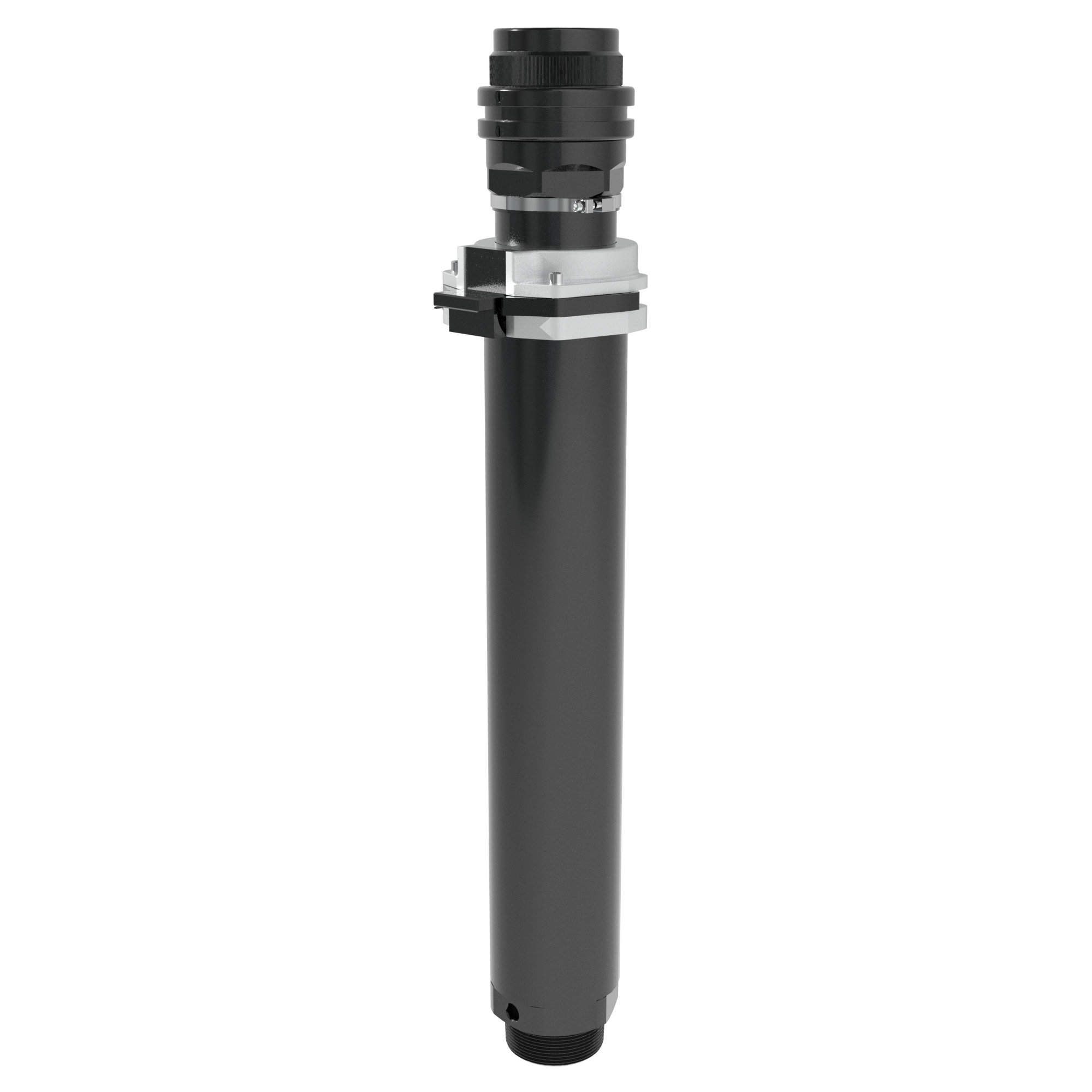

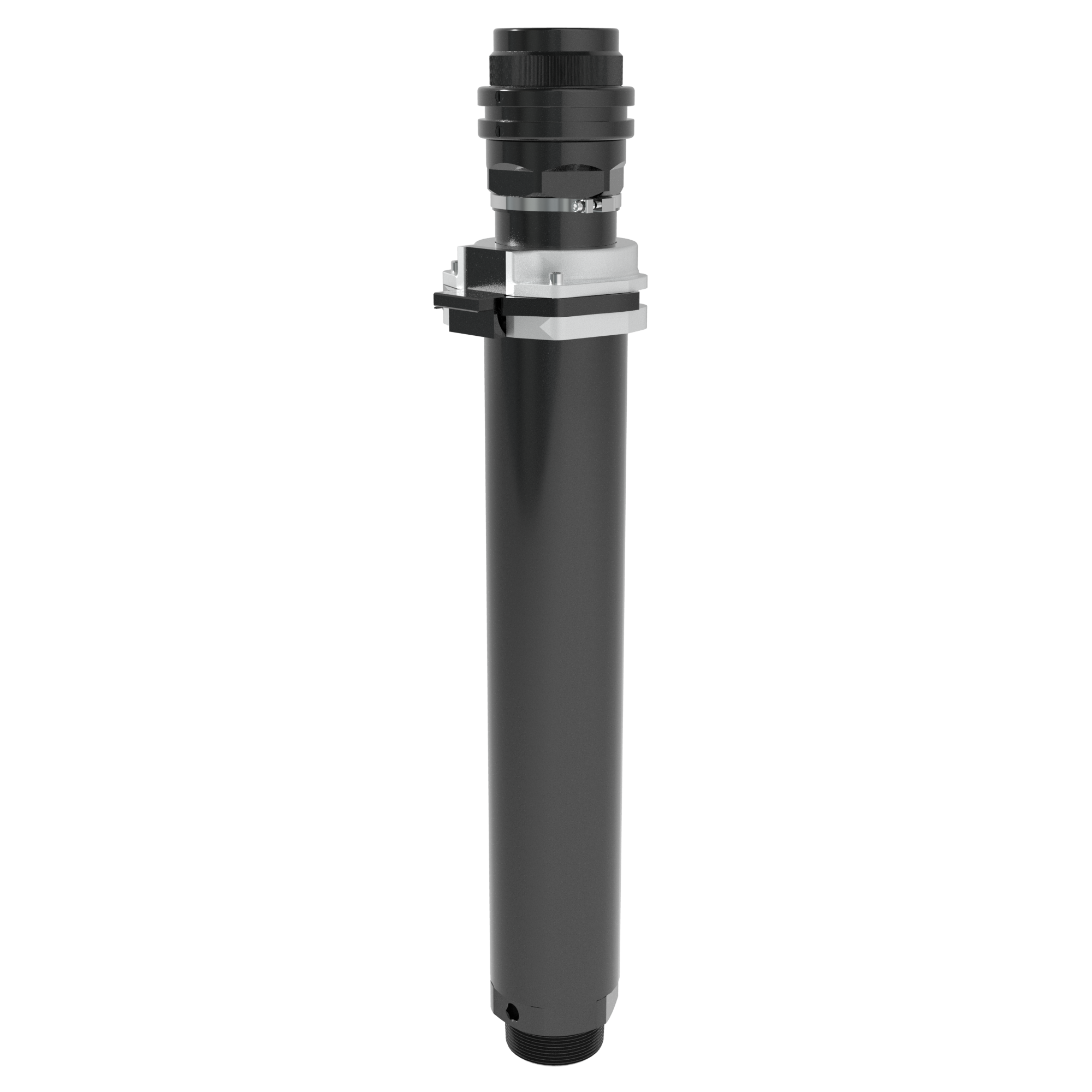

Extend-A-Gun Manual 18″ (450 mm) Monitor Extension – 3″ (75 mm) NPTM Inlet, 3″ (75 mm) Crossfire Quick-Connect Outlet, 12 VDC Acc. Power, Black
Elevation Capability for Deck-Mounted Monitors
When obstructions like cab roofs, hose reels, or lights are in your way, the Extend-A-Gun™ series ensures your deck-mounted monitor operates above it all. Offering manual, pneumatic, or remote-controlled actuation, Extend-A-Gun allows monitors to be stowed flush at deck level or extended 12” or 18” (30.5 or 45.7 cm) above the apparatus pump housing for unobstructed performance. Built with durability and safety in mind, Extend-A-Gun is an essential tool for modern firefighting operations. Key Features: Multiple Actuation Options: Choose from manual, pneumatic, or remote-controlled versions to meet your department’s specific needs Adjustable Extension Heights: Extends monitors 12” or 18” (30.5 or 45.7 cm) above deck level to clear obstacles on the apparatus Durable Construction: Hard coat anodized aluminum finish ensures lasting performance in harsh conditions Built-in Safety Features: Equipped with a sensor to activate a “monitor raised” light or truck compartment warning system for safe operation 360-Degree Operation: Provides full range of movement for flexible firefighting coverage Compatible with New or In-Service Apparatus: Ideal for retrofits or new apparatus builds, making it a versatile addition to your equipment Integrated Valve Options: Available VP model includes an air-remote-controlled pump valve with interlock system for added operational safety Available Models: Manual: 3” (76 mm) waterway Available in 12” or 18” (30.5 or 45.7 cm) extensions Remote Control: 3” or 4” (76 or 102 mm) waterway Available in 12” or 18” (30.5 or 45.7 cm) extensions VP (Pneumatic) : Air remote-controlled with integrated pump valve 3” (76 mm) waterway 18” (45.7 cm) extension Single integrated manual valve with configurable plumbing options Includes an inlet valve interlock system for enhanced safety All Prices in USD
Out of stock
The Task Force Tips Extend-A-Gun Manual 18″ Monitor Extension provides a critical increase in reach and elevation for industrial and municipal fire monitors. Engineered to enhance strategic water stream placement, this 450 mm extension integrates seamlessly into existing systems to optimize operational effectiveness on the fireground.
- Gain an additional 18 inches (450 mm) of height or standoff, allowing improved attack angles over obstacles or into elevated positions.
- The 3″ (75 mm) NPTM inlet ensures a secure, rigid connection to your monitor supply, maintaining a reliable water path.
- Facilitate rapid deployment and system reconfiguration with the 3″ (75 mm) Crossfire® Quick-Connect outlet, designed for fast attachment of nozzles and other TFT accessories.
- An integrated 12 VDC accessory power supply allows for direct connection and operation of compatible powered components mounted to the extension.
- At 28.000 lbs, its substantial construction contributes to stability, while the black finish offers a professional, low-profile appearance.
This Extend-A-Gun extension is an invaluable asset for scenarios demanding flexible monitor deployment, such as elevated industrial platforms or specific structural attack positions, ensuring optimal fire suppression capability.
| Color | |
|---|---|
| Brand | |
| Weight | |
| Bundle |
Extension Only |
| Monitor Type |
Extension |
| Monitor Accessory Power |
12 VDC |
| Monitor Supply Size (Imp) |
3" |
| Monitor Supply Size (Met) |
75 mm |
| Monitor Supply Type |
NPT Female ,NPT Male |
| Monitor Supply Style |
Female Threads |
| Monitor Supply Swivel |
Rigid |
| Extension Length (Imp) |
18" |
| Extension Length (Met) |
450 mm |
| Monitor Control |
Manual |
| Monitor Supply Inlets |
Single |
| Monitor Outlet Size (Imp) |
3" |
| Monitor Outlet Size (Met) |
75 mm |
| Monitor Outlet Type |
Crossfire® Male |
| Monitor Outlet Style |
Quick-Connect |
| Monitor Outlet Swivel |
Rigid |
