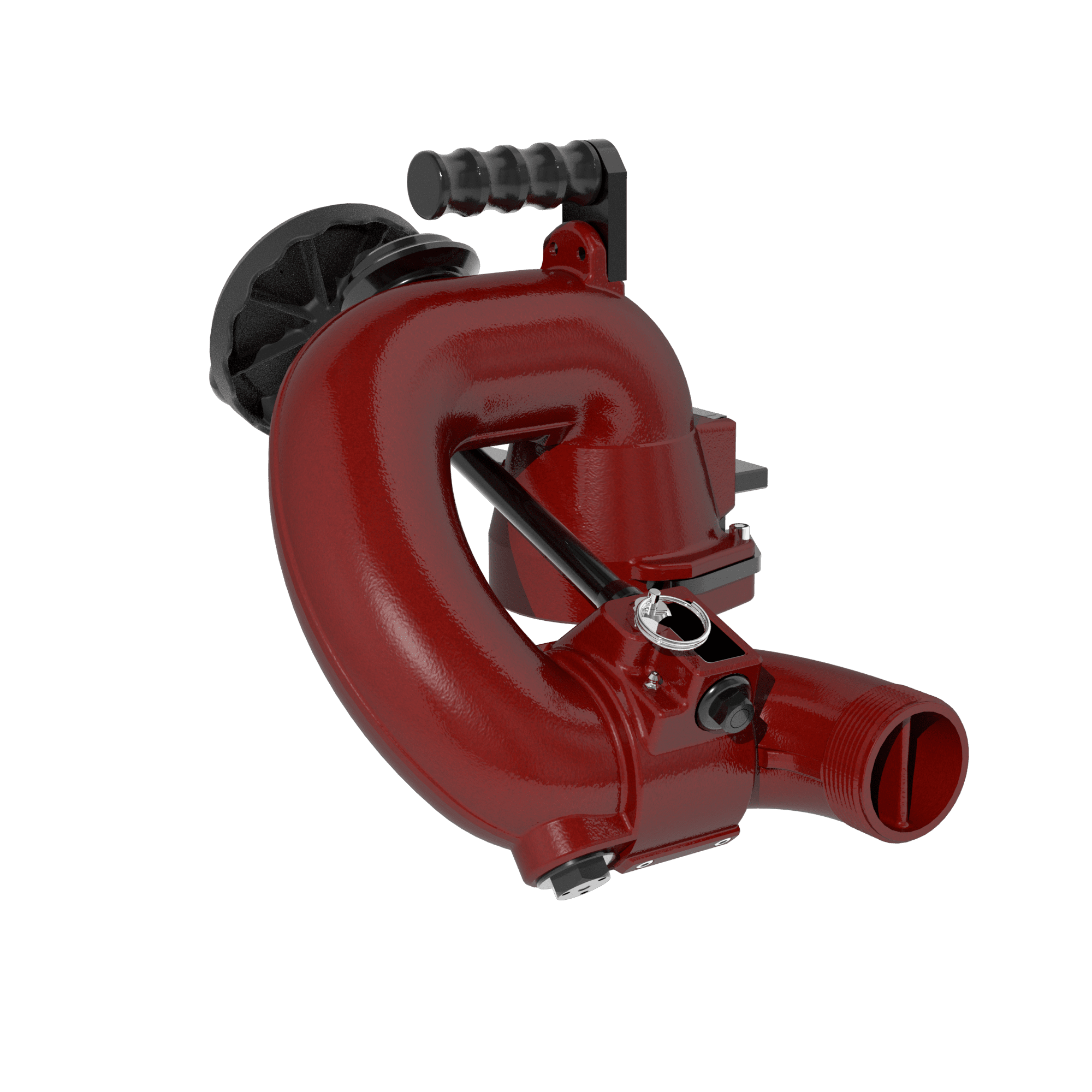

CrossFire Monitor Top – 2.5″ NHM Rigid Outlet
$1,813.50
Versatile Monitor Tops for Deck Guns or Bases
CrossFire® Monitor Tops offer versatile use as a truck-mounted deck gun or a portable monitor with easy attachment options. With a large 3.25” (83 mm) waterway, these tops provide powerful flow rates up to 1250 GPM (4500 LPM) with low friction loss. Featuring a secure connection, visual verification, and integrated pressure control, these monitors ensure stability and reliable performance during critical operations. SafeTak Base & Nozzles Sold Separately Key Features: Flow Rate : Delivers up to 1250 GPM (4500 LPM) with low friction loss for powerful suppression Connection Versatility : Easily attaches to a truck-mounted flange or portable base Pressure-Controlled Lock : Water pressure-locked release prevents accidental disengagement Quick Position Adjustment : Handwheel provides seven turns from vertical to stop elevation 360° Rotation : Enables full horizontal range for coverage flexibility Pressure Gauge : Highly visible gauge for precise monitoring Automatic Drain Valve : Built-in valve for convenient maintenance All Prices in USD
The Task Force Tips CrossFire Monitor Top – 2.5″ NHM Rigid Outlet is engineered for demanding ground attack operations, providing powerful, directed suppression capabilities. Designed as the upper component for a versatile ground monitor system, it offers precise control and substantial flow for critical fireground applications.
- Broad Operational Reach: Benefit from a full 360° horizontal rotation and an impressive 90° – 90° vertical range, allowing for comprehensive coverage from a single strategic position.
- High-Volume Suppression: Capable of delivering flows up to 1250 GPM (4500 LPM), it supports significant water or foam application for rapid knockdown.
- Optimized Stream Quality: An integrated stream straightener ensures a coherent, effective water pattern, maximizing the impact and reach of the discharge.
- Dependable Manual Control: Direct manual control provides operators with reliable, immediate command over the monitor’s trajectory, essential for dynamic fire scenarios.
- Secure Outlet Connection: The 2.5″ NH Male rigid outlet offers a stable and direct connection point for various nozzles and appliances, ensuring integrity under high flow.
This CrossFire Monitor Top is specifically designed for robustness and operational flexibility in ground attack scenarios. Its design facilitates rapid deployment and sustained, high-volume fire suppression, making it an indispensable asset for municipal and industrial firefighting teams confronting large-scale incidents.
| Weight | 17 lbs |
|---|---|
| Color | |
| Brand | |
| Shipping Box Dimensions |
18.00 × 18.00 × 14.00 in |
| Weight | |
| Bundle |
Monitor Top |
| Monitor Type |
Ground Attack |
| Monitor Horizontal Range |
360° |
| Monitor Vertical Range |
90° – 90° |
| Monitor Control |
Manual |
| Monitor Outlet Size (Imp) |
2.5" |
| Monitor Outlet Size (Met) |
65 mm |
| Monitor Outlet Type |
NH Male |
| Monitor Outlet Style |
Male Threads |
| Monitor Outlet Swivel |
Rigid |
| Max Flow Rate (GPM) |
1250 GPM |
| Max Flow Rate (LPM) |
4500 LPM |
| Bundle Stream Straightener |
Integrated |
