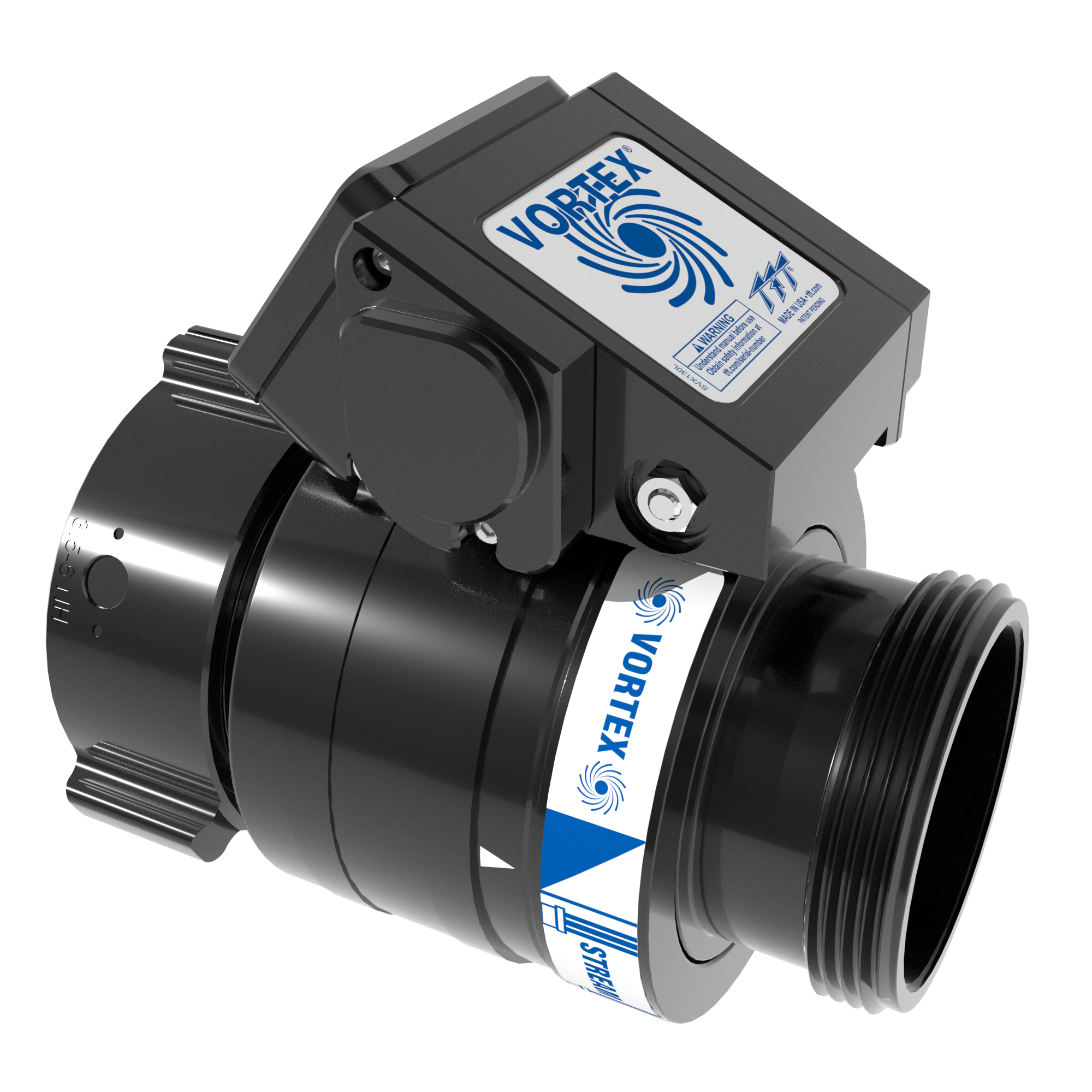

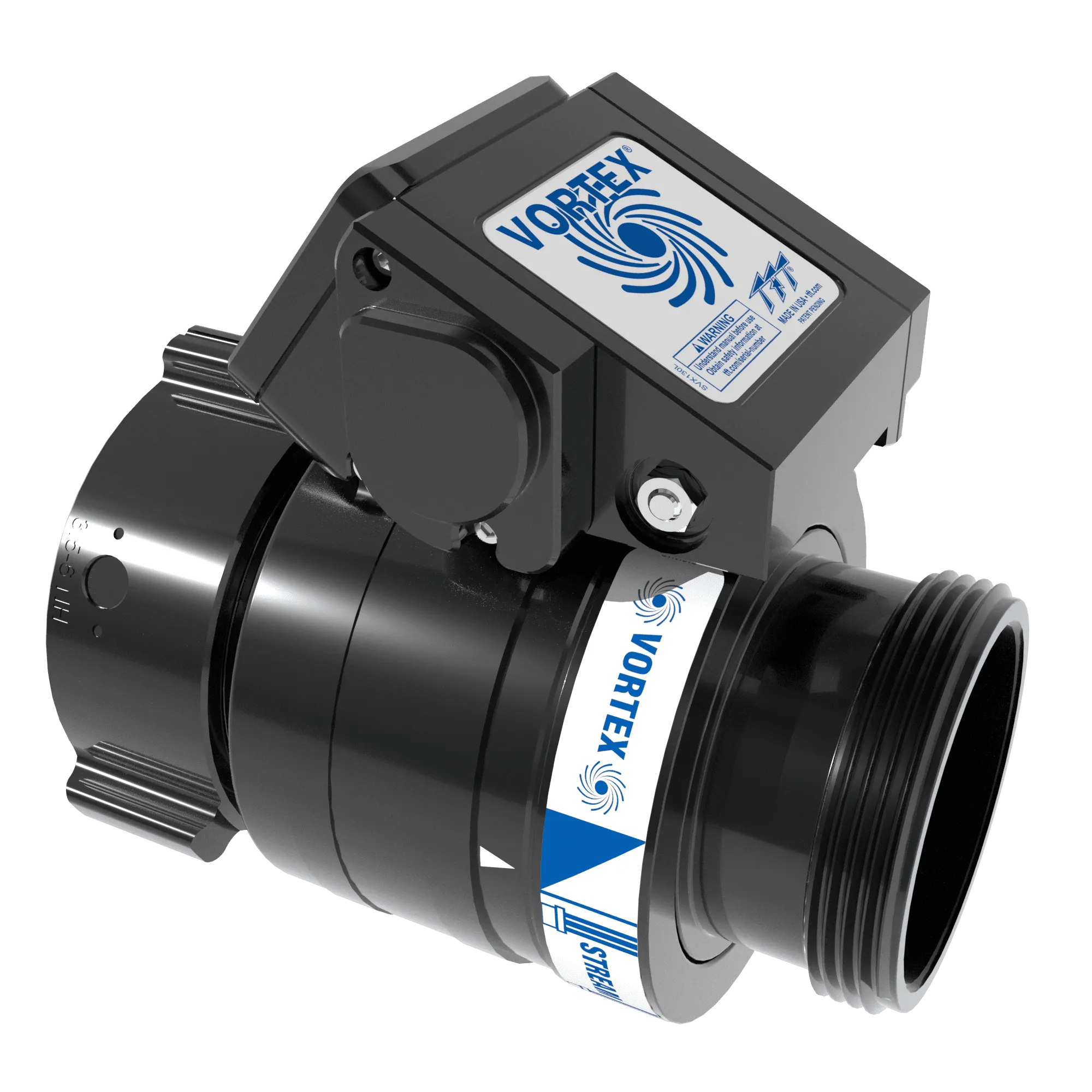

Vortex RC Adjustable Smooth Bore Masterstream Nozzle – 3.5″ (90 mm) NHF Swivel Rocker Inlet, 3.5″ (90 mm) NHM Rigid Outlet, 2-Wire Connection
$3,531.45
The Original Adjustable Smooth Bore Nozzle
Vortex® adjustable smooth bore masterstream nozzles combine traditional smooth bore functionality with adjustable patterns, offering unmatched versatility and performance for various firefighting scenarios. Key Features: Dual-Functionality: Seamlessly switch between a solid straight stream and a narrow fog pattern without sacrificing flow rate Internal Vanes: Six durable aluminum fins introduce a gentle spin to the water for a uniform fog pattern with minimal friction loss Flow Rate Consistency: Maintains optimal flow regardless of stream pattern, ensuring effective water delivery Robust Construction: Built with durable materials and debris-resistant vanes Foam Compatibility: Supports inline foam eductors, onboard foam systems, and CAFS for enhanced fire suppression operations Monitor Options: Available in sizes for 2.5? (65 mm), 3.5? (90 mm), and 6? (152 mm) applications Manual & Remote Operation: Choose from manual or electric remote-control models for flexible operation Multi-Brand Compatibility: Compatible with most smooth bore nozzles, including other brands and stacked tips Stream Transition Ring: Smoothly adjust patterns on the fly to adapt to diverse fireground needs All Prices in USD
The Task Force Tips Vortex RC Adjustable Smooth Bore Masterstream Nozzle is engineered for high-volume fire suppression, offering advanced remote control capabilities for critical water delivery. Its specialized design is built to generate a formidable, penetrating stream for demanding industrial and municipal operations.
- Remote-controlled actuation via a 2-wire electric connection provides operators with the flexibility to precisely adjust stream shaping from a safe distance, integrating seamlessly with 12/24 VDC power systems.
- Delivers a consistent 300 PSI (21 Bar) target nozzle pressure, ensuring a powerful and far-reaching smooth bore stream for effective suppression and asset protection.
- Features a generous 3.5″ (90 mm) waterway and rigid outlet, coupled with a 3.5″ (90 mm) NHF swivel rocker inlet, facilitating substantial flow capacity and straightforward connection to supply lines.
- Constructed with a durable metal aluminum bumper, providing exceptional resilience and structural integrity to withstand the challenging conditions encountered in active fireground scenarios.
This Task Force Tips Vortex nozzle’s design is essential for deployment on fixed industrial systems or apparatus-mounted monitors, enabling precise, high-pressure smooth bore operations where controlled remote management of the water stream is paramount for safety and effectiveness.
| Color | |
|---|---|
| Nozzle Valve Style |
Sold Separately |
| Nozzle Teeth |
None |
| Brand | |
| Shipping Box Dimensions |
12.00 × 8.00 × 8.00 in |
| Weight | |
| Target Nozzle Pressure (Bar) |
21 Bar |
| Target Nozzle Pressure (KPA) |
2100 kPa |
| Nozzle Type |
Masterstream Nozzles ,Smooth Bore |
| Body Size | , |
| Waterway Size | |
| Bumper Material | |
| Nozzle Style |
Adjustable Smooth Bore ,Vortex |
| Nozzle Grip |
None |
| Target Nozzle Pressure (Imp) |
300 PSI |
| Nozzle Hose Size (Imp) |
3.5" |
| Nozzle Hose Size (Met) |
90 mm |
| Nozzle Hose Connection Type |
NH |
| Nozzle Hose Coupling Style |
Rocker |
| Nozzle Hose Coupling Swivel |
Swivel |
| Nozzle Outlet Size (Imp) |
3.5" |
| Nozzle Outlet Size (Met) |
90 mm |
| Nozzle Shaper Actuation |
Remote Control |
| Nozzle Power |
12/24 VDC |
| Nozzle Power Connection |
Electric Remote 2-Wire |
| Nozzle Inlet Size (Imp) |
3.5" |
| Nozzle Inlet Size (Met) |
90 mm |
| Nozzle Inlet Connection Type |
NH ,NH Female |
| Nozzle Inlet Coupling Style |
Rocker |
| Nozzle Inlet Coupling Swivel |
Swivel |
