Stability Monitor Sentry B1
A laser monitors the distance of the target to be monitored and triggers an alarm if the movement threshold set is exceeded.
product characteristics
Leader SENTRY is a stability monitor that detects the structural movements of an unstable building. Its laser continuously monitors detected movements and displays
changes on its screen for real-time awareness.
Leader SENTRY can detect a 0.2in structure movement at a distance of 165ft! A telescopic sight helps to point the laser accurately at the targeted unstable structure.
It allows firefighters and USAR teams to be alerted by a visual and audio alarm (98dB) during a structure movement, however small, is detected.
| PRIMARY FUNCTION |
Monitors movements of unstabilized and stabilized structures at distance (165ft) = far safer |
|---|---|
| FILTERS |
Short-duration interruptions of the beam passing through it (e.g. people, birds etc.) are filtered. |
| SERVICING |
None |
| Shape |

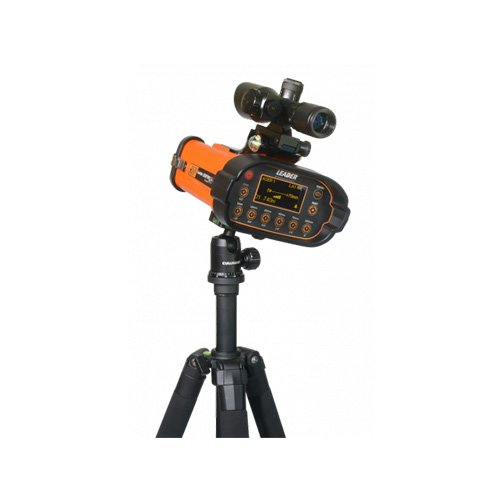

1 laser head on tripod with integrated control board |
| IP |
IP 55 |
| RUNNING TIME |
By using the external optional rechargeable battery: 45 hrs (1 laser) By using standard batteries: 8 hrs AAA alkaline cell batteries |
| Power Supply | |
| SPECIALTIES |
An optional wireless remote control can be paired allowing easy management from the rubble pile at a distance of 330 ft. |
| ENVIRONNEMENT |
Designed for external positioning during fire and rescue responses |
| FLASH LIGHT |
3 powerful LEDs for an about 360° visibility that give working signal or visual alarm |
| CONFIGURATIONS |
Sentry Single (1 laser head) |
| ALARM OPTION |
Sentry proposes an out put source to plug a remote loud speaker |
| ALARM |
1 audible alarm level at 98 dB ensures alarm to be heard or OFF or Mute |
| UNIT CALIBRATION IN FIELD |
None |
| LIVE MONITORING |
Sentry displays distance to target(s) in real time for movement evaluation allowing to choose relevant threshold |
| MONITORING METHOD |
Monitors and detects movements from 0.1″ to 4″. Several thresholds (0.1″,0.2″,0.4″,0.8″,1.6″,2.8″ and 4″) |
| TECHNOLOGY |
Telemeter laser beam |
| RISK DURING IMPLEMENTATION |
None as it is done in a chosen safe area and before any risk is taken, monitoring larger structurers and larger areas of work, thus protecting larger numbers of people |
| Warranty |
