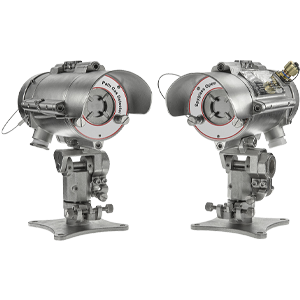

Open Path Combustible Gas Detector

SafEye (Quasar 900) – Open Path Combustible Gas Detector

Multi-combustible gas detection
Range of 200 meters
Low maintenance costs
Easy detector communication
Easy configuration and troubleshooting
Automatic heated optics
Built-in event recorder
Stainless steel construction
Long warranty

The Open Path Combustible system detects hydrocarbon gases by analyzing the absorption of radiation caused by gases in the atmosphere and comparing it to background atmospheric absorption. This is accomplished between a pair of units: a Flash Source and a Detector that can monitor a distance of up to 200 meters.

Open Path Combustible Gas Detectors are robustly designed and can handle the toughest environments: 316L stainless steel housings that meet IP66/IP68 and NEMA 250 6P egress standards; circuit boards epoxy coated for protection; MIL-C-810C testing for humidity, salt, fog, vibration, mechanical shock and temperature extremes; and SIL-2 approval per IEC61508 is a final statement in reliability.

Documentation

Commercial Brochure – English

Commercial Brochure – French

Bid Specifications – English

Certification	Description
ATEX	A product regulation which ensures the safety of equipment intended for use in potentially explosive atmospheres in the European Union.

Canadian Approvals: CSA (c), UL (c), FMc, ETLc A product regulation which ensures the safety of equipment intended for use in potentially explosive atmospheres in Canada.
CE indicates that a product has been assessed by the manufacturer and deemed to meet EU safety, health and environmental protection requirements.
EAC Gost R and EAC certifications are mandatory in order to have access at all to the Russian market and the markets of the five EAC members
IECEx The IECEx System is an international system for the safety of equipment installed in a potentially explosive atmosphere.
SIL Safety Integrity Level (SIL) defined as a relative level of risk-reduction provided by a safety function, or to specify a target level of risk reduction
US Approvals: CSA (us), FM (us), ETL (us), UL (us) A product regulation which ensures the safety of equipment intended for use in potentially explosive atmospheres in the United States
