RKI MPS LEL Sensor

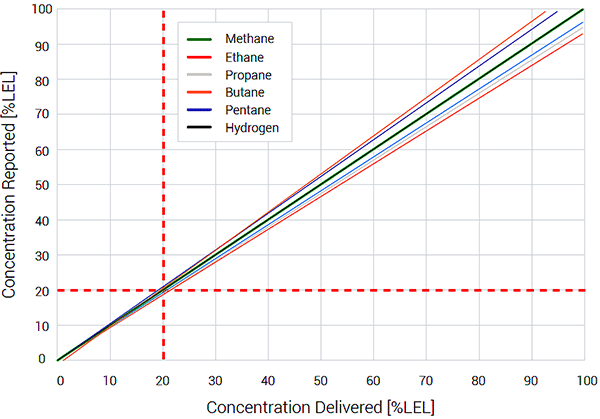

Utilizing a new sensor technology, the MPS (Molecular Property Spectrometer) sensor internally identifies the gas or gases being detected, and applies the appropriate LEL conversion factor so that it will read a variety of flammable gases or vapors correctly by just utilizing a methane calibration. Other sensor technologies, such as catalytic or IR sensors, require a conversion factor to be applied during calibration or that it needs to be calibrated to the specific gas desired to be detected. This is not the case with the MPS sensor. Capable of detecting over a dozen different combustible gases simultaneously, including Hydrogen, the Molecular Property Spectrometer is unsurpassed in reliability, accuracy, and worker safety. No other sensor can match the accuracy of the MPS in reporting 0-100% LEL across multiple gases. The MPS’s robust design means it won’t drift, decay, or poison over time. Expected sensor life is over 10 years in normal applications.

Applications

• Applications where silicone is present
• High humidity applications where IR or catalytic may not hold up
• Applications where a mixture of hydrocarbons could be present
• H2 applications where poisoning of the sensor is a concern

Gases Detected

Compatible Transmitters

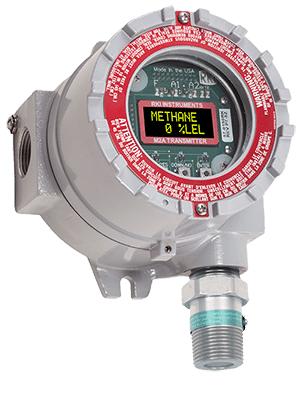

M2A

The M2A model is an explosion proof transmitter that can operate as a standalone system or as part of a system connected with an analog or digital signal to a controller, PLC, or DCS. The M2A-XL utilizes a magnetic wand technique for performing non-intrusive calibration. The housing does not need to be opened for zeroing or calibration.

• Direct digital readout
• Explosion proof housing
• Operates independently or with any controller, PLC or DCS
• 4-20 mA transmitter
• Digital Modbus output
• Operates from 10-30 VDC
• 2 programmable alarm relays, plus fail relay
• Auto zero drift correction
• Non intrusive calibration via magnetic wand

Ordering info:

65-2650RK: LEL, M2A, MPS type sensor/transmitter with J-Box

81-FMPS-CH4: Cal kit, fixed, MPStm sensor, CH4 50% LEL in 18% O2 with a balance of N2, 103 liter steel, regulator, screwdriver, case & tubing\

S2 Series

The Direct Connect sensors can be used in two different ways. The sensors can be mounted directly to the controllers as a complete stand alone system, or they can be mounted to explosion proof junction boxes for remote detection. The plug-in design allows quick replacement in the field with no tools required. The Direct Connect sensors can be used either indoors or outdoors. The flame arrestors utilizes a patented coating, which makes it water repellent.

• Connect directly to a Beacon controller
• Explosion proof housing
• Stainless steel enclosures available
• Patented water repellent sensor coating

Ordering info:

61-1020: LEL, Direct Connect, MPS type detector with XP J-Box

81-FMPS-CH4: Cal kit, fixed, MPStm sensor, CH4 50% LEL in 18% O2 with a balance of N2, 103 liter steel, regulator, screwdriver, case & tubing

Direct Connect

The Direct Connect sensors can be used in two different ways. The sensors can be mounted directly to the controllers as a complete stand alone system, or they can be mounted to explosion proof junction boxes for remote detection. The plug-in design allows quick replacement in the field with no tools required. The Direct Connect sensors can be used either indoors or outdoors. The flame arrestors utilizes a patented coating, which makes it water repellent.

• Connect directly to a Beacon controller
• Explosion proof housing
• Stainless steel enclosures available
• Patented water repellent sensor coating

Ordering info:

61-1020: LEL, Direct Connect, MPS type detector with XP J-Box

81-FMPS-CH4: Cal kit, fixed, MPStm sensor, CH4 50% LEL in 18% O2 with a balance of N2, 103 liter steel, regulator, screwdriver, case & tubing
