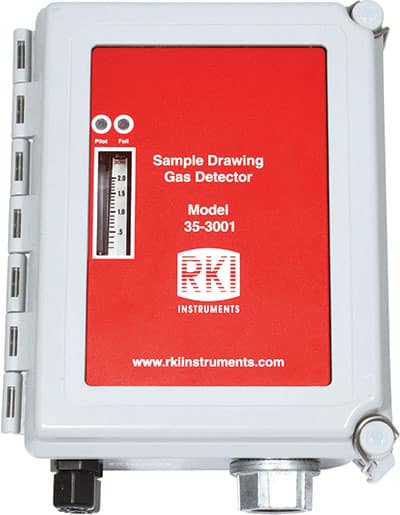

RKI Model 35-3001 Gas Detector
Sample Draw Sensor / Transmitter
- Available in LEL, O2, H2S, CO, CO2, H2 (ppm or LEL)
- Multigas versions available with sensors in one enclosure
- Internal sample pump with 100’ range
- Flowmeter and LED’s for operational status
- Low flow indication
- NEMA 4X enclosure
- Operates on 24VDC input
- Optional 4-20mA output
Datasheet [PDF]
Combustible ManualManuals for other gases [PDF]
The 35-3001 series is a compact sample draw detector assembly with a built-in pump that is powered from 24VDC. This unit features a NEMA 4X enclosure, making it dust, water and corrosion resistant. It also features a low flow alarm which warns of any obstructions or restrictions in the flow system. Combustibles, oxygen, and carbon dioxide versions are available with or without a 4-20 mA transmitter. H2S and CO versions both have 4-20mA outputs. The 35-3001 is also available in many dual sensor configurations.
The 35-3001 is capable of single person calibrations and remote sampling at up to 5,000 ft. from a controller, and interfacing to any RKI or third party control system (utilizing a 4-20 mA feedback signal).
Related Services
- Design, Consultations, and Engineering
- Installation
- Start-up
- Training
- System Maintenance
Application
- Petrochemical plants
- Refineries
- Water & wastewater treatment plants
- Pulp & paper mills
- Gas, telephone, & electric utilities
- Parking garages
- Manufacturing facilities
- Steel
- Automotive
- HVAC
Specification
|
Specifications |
LEL |
LEL |
O2 |
H2S |
CO |
H2 |
CO2 |
|
Sensor Type |
Catalytic |
Infrared |
Galvanic cell |
Electrochemical |
MOS |
Infrared |
|
|
Measuring Range |
0-100% LEL |
0-100% LEL for CH4 |
0-25% Vol. |
0-100 ppm |
0-300 ppm |
0-2000 ppm |
0 – 5000 ppm |
|
Signal Output |
RKI direct connect sensors (requires RKI controller) optional 4-20mA output (standard for CO/H2S) |
||||||
|
Operating Voltage |
24VDC nominal (18.5 – 30VDC) |
||||||
|
Max Current Draw |
250 mA 24VDC |
||||||
|
Location |
Indoor or outdoor |
||||||
|
Temperature |
-4 to 122° F (-20 to 50°C) |
||||||
|
Humidity |
0 – 95% RH non condensing |
||||||
|
Housing |
Grey polycarbonate wall-mount hinged NEMA 4X |
||||||
|
Dimensions |
Height 8.5” 216 mm Width 7.0” 178 mm Depth 4.3” 109 mm |
||||||
|
Sampling Method |
Internal sample draw pump |
||||||
|
Maximum Sample Length |
100 Ft. |
||||||
|
Sample Connections |
1/4” OD rigid tubing (inlet and exhaust) |
||||||
|
Display |
Flow meter, LED’s for pilot and fail |
||||||
|
Warranty |
One year, materials and workmanship |
||||||
|
Available Configurations |
|||||
|
Single Channel |
Multi Channel |
||||
|
No Transmitter |
LEL IR LEL IR Vol H2 LEL O2 CO2 |
LEL / O2 IR LEL / O2 IR vol / O2 LEL / IR LEL
|
LEL / H2S IR LEL / H2S IR vol / H2S O2 / H2S |
LEL / CO IR LEL / CO IR vol / CO O2 / CO |
LEL / CO2 IR vol / CO2 |
|
With Transmitter |
LEL IR LEL IR Vol H2 LEL H2S CO O2 CO2 |
LEL / H2S IR LEL / H2S IR vol / H2S O2 / H2S |
LEL / CO IR LEL / CO IR vol / CO O2 / CO |
||
Note: Transmitter provides 4-20mA output, built-in for all CO/H2S versions.
* Specifications subject to change without notice.
Made in USA.
