RKI AirLink 9900 Wireless Signal Repeater
Explosion Proof Wireless Signal Repeater
Features
- 255 Channel wireless interface – all addresses on configured network
- Radio options: 900 MHz radio or 2.4 GHz Standard
- 12 to 35V DC operating voltage
- Graphical LCD with LED backlight
- Operating temperature range of -40ºC to +60ºC
- 3 Push button interface (ADD, MENU, SUB)
- Individually configurable low and high alarm set points per channel
- Explosion proof aluminum enclosure with Class I, Div 1, groups B, C, & D certifications
- 1 Year limited hardware warranty
Description
AirLink 9900 Datasheet [PDF]
AirLink Brochure [PDF]
Airlink 9900 XP Operator’s Manual [PDF]
Airlink 9900 NXP Operator’s Manual [PDF]

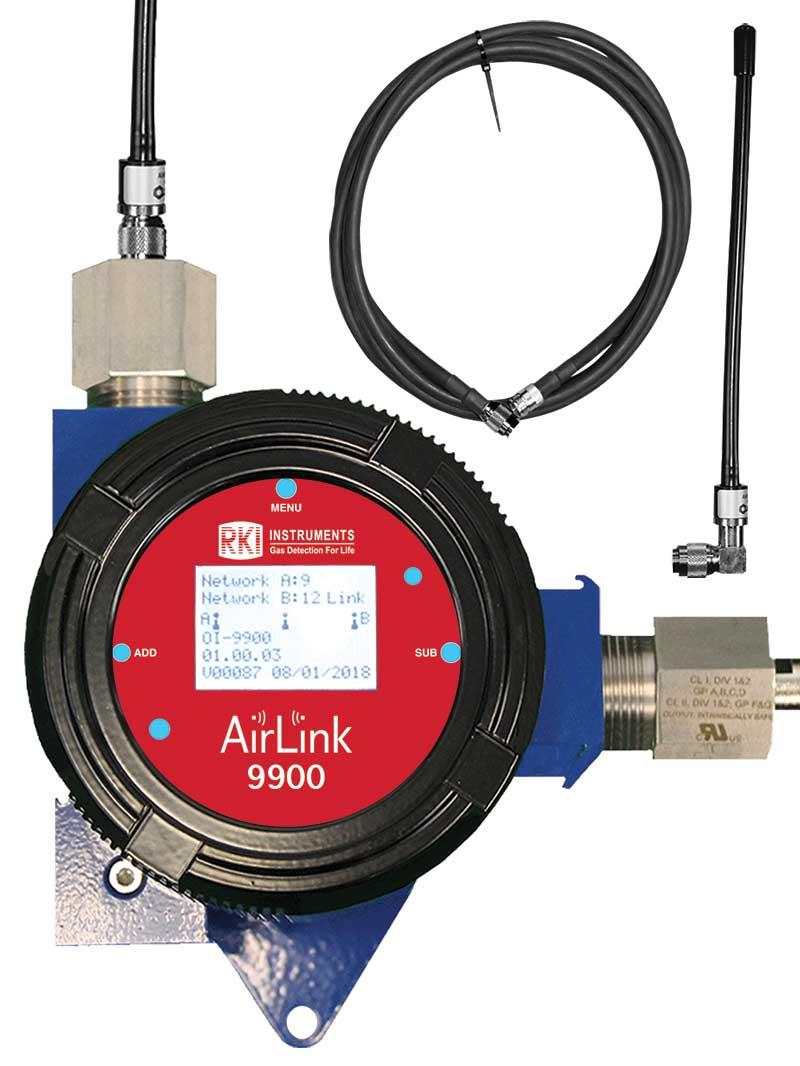

The RKI Instruments AirLink 9900 wireless repeater is a device that receives transmissions from a wireless sensor or switcher and repeats the transmission to its corresponding monitor or controller within the wireless network. Enables greater distances and reliable communication between the gas detector and the gas monitor.
The AirLink 9900 Explosion Proof Wireless Signal Repeater represents the latest leading edge wireless technology in fixed gas detection today.
Related Services
- Design, Consultations, and Engineering
- Installation
- Start-up
- Training
- System Maintenance
Specifications
| Product Type | Signal repeater/extender |
| Operating Voltage | 12V to 35V DC |
| Power Type | Wire powered |
| Current Draw | 150 mA Maximum at 24V DC |
| Protection | Power electromagnetic interference (EMI) filter |
| RF Connection | 2 External N female radio frequency (RF) connector |
| Display Screen | 102 x 64 Resolution graphical LCD screen transflective (sunlight readable) with LED backlight |
| Interface | 3 Magnetic push buttons (Menu, ADD, and SUB) |
| Temperature Range | -40°C to +60°C |
| Product Compatibility | All AirLink wireless gas detector head transmitters |
| Wireless Radio Options | 900 MHz radio 2.4 GHz radio |
| Networks | 52 Networks (900 MHz radio) 78 Networks (2.4 GHz radio) 255 Addresses per network |
| Enclosure Materials | Aluminum enclosure |
| Product Dimensions | 5.42 in, L x 6.03 in. D x 12.16 in. H (Max. dimensions with attachments) |
| Total Weight | 7.5 lbs |
| Hazardous Location Certifications and Approvals |
Certified explosion / flame proof CQPSUS Class I, Div 1, Groups C & D Temp. -40°C to +60°C |
| Hardware Warranty | 1-Year limited |
