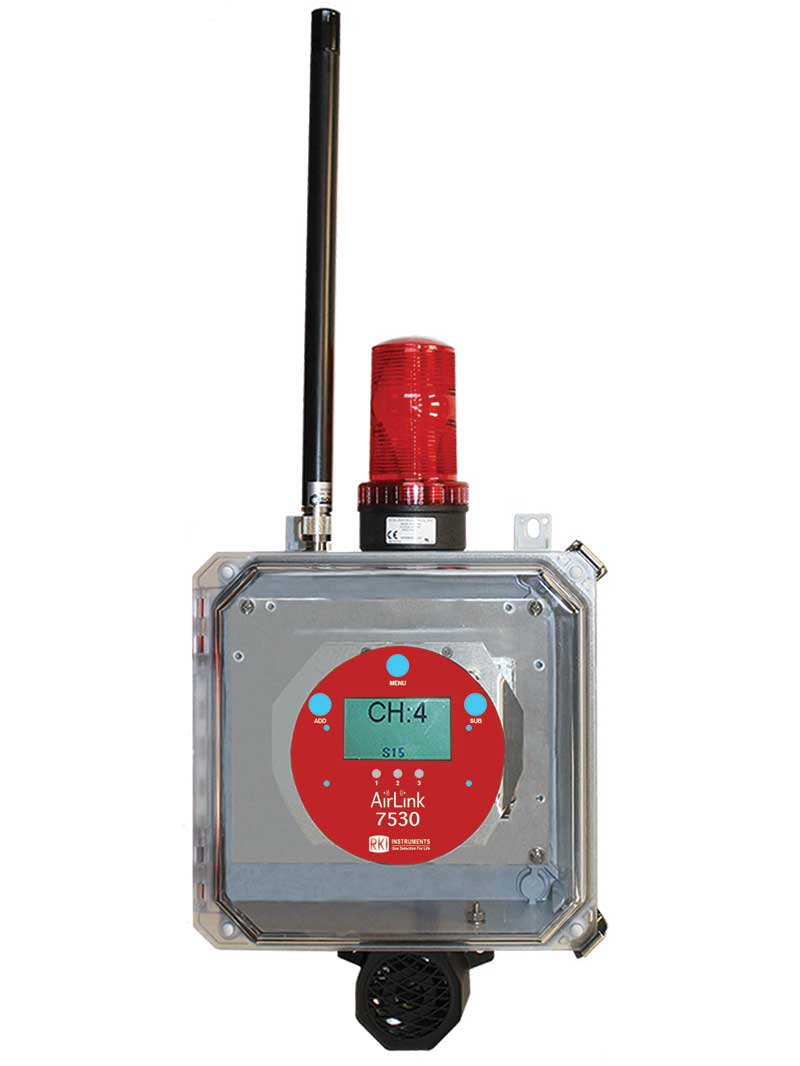

RKI AirLink 7530 Wireless Relayer
32 Channel Wireless Relayer
Features
- 32 Channel wireless relays: Contains 3 relays that can be activated by up to 32 remote wireless sensors
- Radio options: 900 MHz radio or 2.4 GHz Standard
- 12 to 35 VDC operating voltage with optional AC power supply
- Graphical LCD with LED backlight
- Operating temperature range of -40ºC to +70ºC
- Push button interface (ADD, MENU, SUB) with 3 corresponding magnetic, non intrusive switches
- Programmable alarms
◦ 3 Individually configurable alarm set-points: ◦ Set points – 3 red alarms
◦ 3 LED red indicators - Output options: Wet contact fault DC fault terminal, relay 3 can optionally be configured as a fault relay
- Optional strobe and horn attached
- Aluminum explosion proof enclosure with Class I, Div. 1, Groups B, C & D certifications
- 1 Year limited hardware warranty
AirLink 7530 Datasheet [PDF]
AirLink Brochure [PDF]
AirLink 7530 Manual [PDF]
The AirLink 7530 XP Relayer is a 32-Channel Gas Alarm System with 3 Relays that can monitor up to 32 Wireless gas detectors simultaneously. Magnetic switches allow for non-intrusive system setting and diagnostics. Three relays can be configured to activate up to the full scale reading, and set to be either latching or non-latching. Housed in an explosion-proof enclosure for the safe and close-proximity installation of gas readings, alarm relays, and maintenance controls within hazardous locations.
The AirLink 7530 Relayer is also available as a non-explosion proof version.
Related Services
- Design, Consultations, and Engineering
- Installation
- Start-up
- Training
- System Maintenance
Application
- Petrochemical plants
- Refineries
- Water & wastewater treatment plants
- Pulp & paper mills
- Manufacturing facilities
- Automotive
- Semiconductor plants
- Chemical plants
Specifications
| Product Type | 32 Channel gas monitor |
| Operating Voltage | 12V to 35V DC or 120V AC (optional) |
| Power Type | Dual 3.6V / 19 Ah batteries |
| Current Draw | 275 mA Maximum |
| Power Supply | 3.13A (75W), 85/264V AC to 24V DC (optional) |
| RF Connection | External N female radio frequency (RF) connector |
| Customizable Settings | 3 Individually configurable alarm setpoints per channel
Option to disable alarm relays Latching and non latching relay settings |
| Protection | Power electromagnetic interference (EMI) filter |
| Display Screen | 128 x 64 Resolution graphical LCD screen
transflective (sunlight readable) with LED backlight |
| Interface | 3 Push buttons (Menu, ADD, and SUB) |
| Temperature Range | -40°C to +70°C |
| Relays | 3 Dry-contact common relays with 4 amp replaceable fuses fault terminal |
| Wireless (Digital) Input | Up to 32 Wireless (Digital) sensor inputs |
| Product Compatibility | All AirLink wireless transmitters |
| Wireless Radio Options | 900 MHz radio
2.4 GHz radio |
| Networks | 52 Networks (900 MHz radio)
78 Networks (2.4 GHz radio) 255 Addresses per network |
| Enclosure Materials | Aluminum |
| Wiring Hub | Supplied with one 3/4” conduit hub on bottom of housing. |
| Product Dimensions | 8 in, L x 8 in. D x 4 in. H (Max. dimensions with attachments) |
| Total Weight | 12.8 lbs |
| Hazardous Location Certifications and Approvals | Class I, Groups B, C & D
Class II, Groups E, F & G |
| Hardware Warranty | 1-Year limited |
