RKI AirLink 5950 Wireless Switch-State
Wireless Switch-State Transmitter
Features
- Connectivity for up to 2 switches
- Battery powered – 3.6 V, 19 Ah
- 102×64 graphical LCD display with LED backlight transflective (sunlight readable)
- Wireless communication
â—¦ 900 MHz radio and 52 networks
â—¦ 2.4 GHz radio and 78 networks - Radio transmission every 2 minutes with no change from device, every 5 seconds with change from device (user configurable)
- Allows for use of multiple receivers in multiple locations
- 3 Push-button interface (ADD, MENU, SUB) with 3 corresponding magnetic, non-intrusive switches
- QPS certified; Class I, Div 1, groups C,D
- 1-Year warranty
Description
AirLink 5950 Datasheet [PDF]
AirLink Brochure [PDF]
AirLink 5950 Manual [PDF]

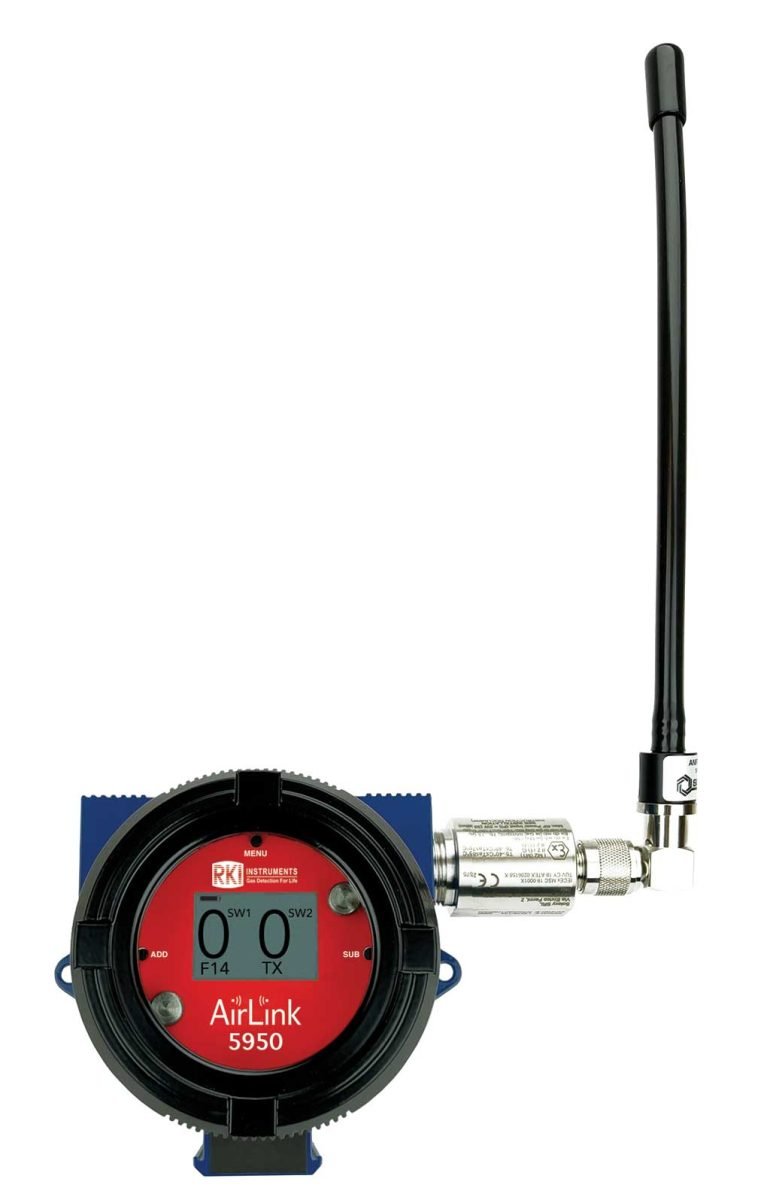

The RKI Instruments AirLink 5950 is a wireless dual switch-state transmitter, compatible with any dry contact switch. Using a monitor allows the unit to utilize relays and Modbus output. Magnetic switches allow for non-intrusive calibration while in the field as well as full system setting and diagnostics.
The AirLink 5950 Wireless Switch-State Transmitter represents the latest leading edge wireless technology in fixed gas detection today.
Related Services
- Design, Consultations, and Engineering
- Installation
- Start-up
- Training
- System Maintenance
Application
- Petrochemical plants, refineries
- Water & wastewater treatment plants
- Pulp & paper mills
- Manufacturing facilities
- Chemical plants
- Construction
- Temporary or permanent applications
Specifications
| Sensor Type | Any sensor of device with a sensor output |
| Operating Voltage | 3.6V, 19 Ah battery |
| Display Screen | 102×64 Resolution graphical LCD Display transflective (sunlight readable) with LED backlight |
| Interface | 3 Magnetic non-intrusive push buttons (MENU, ADD and SUB) |
| Temperature Range | -40°C to +60°C |
| Wireless Radio Options | 900 MHz radio or 2.4 GHz ISM |
| Networks | 1-52 Networks (1-78 for 2.4 GHz)
1-255 addresses per network |
| Product Dimensions | 5.42 in. L x 6.03 in. D x 12.16 in. H (Max. dimensions with attachments) |
| Total Weight | 4.8 lbs. |
| Certifications | QPS Certified Class I, Div. 1, Groups C & D |
| Warranty | 1-Year limited |
